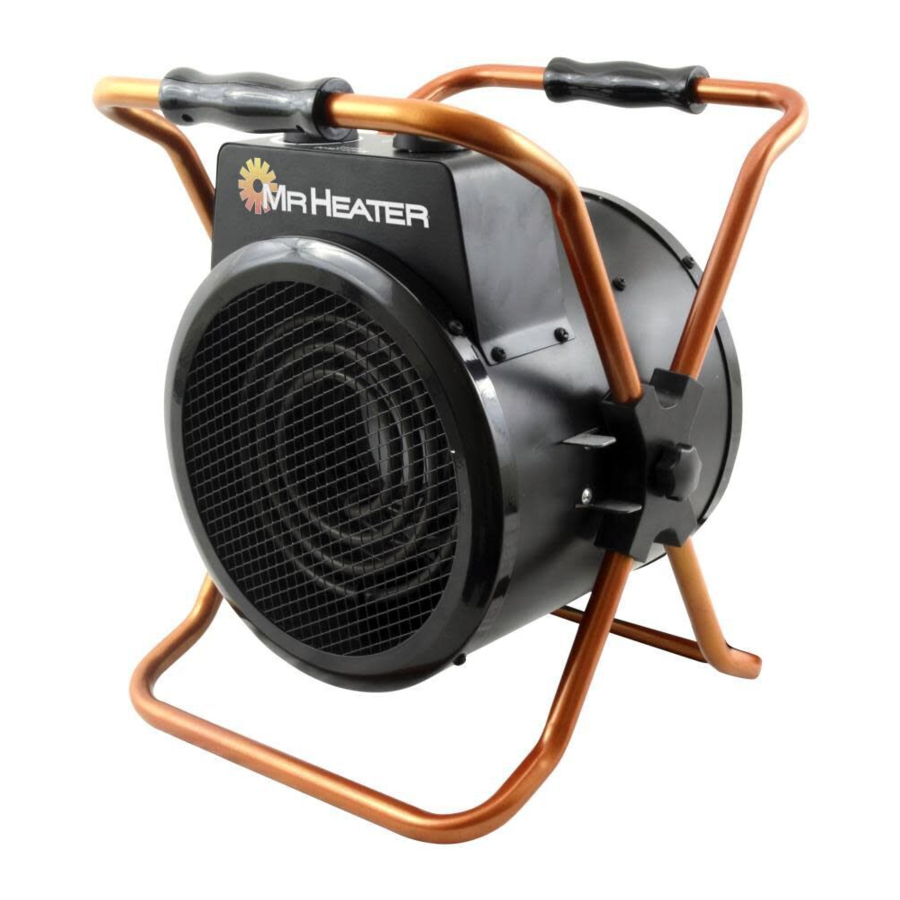

Mr Heater MH165FAET, MH360FAET Manual

SAFETY GUIDELINES DEFINITIONS

IMPORTANT INSTRUCTIONS.
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.


Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.


Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.


Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

WARNINGS


DO NOT OPERATE THIS HEATER UNTIL YOU READ AND UNDERSTAND THIS INSTRUCTION MANUAL FOR SAFETY, OPERATION, AND MAINTENANCE INSTRUCTIONS

burn hazardburn hazard
Use of this heater in any means not described in this manual may cause fire, electric shock, personal injury and/or property damage.


This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 6 feet (1.8m) from the front of the heater and keep them at least 2 feet (.6m) away from the sides and rear


In order to avoid unintended cycling of the heater, always unplug or unit from power source when not in use.


Do not cover the power supply wiring or run the wiring under any carpet or rugs. Arrange cord and connections away from traffic patterns so it is not a tripping hazard.


Connect unit to only properly grounded outlets and adequately sized and grounded electrical systems.


Do not use this unit with unapproved or under sized electrical connection or wiring. They may overheat and cause a risk of fire.


UNIT NOT INTENDED FOR US IN INDOOR AREAS WHERE HEATER MAY BE EXPOSED TO WATER. AVOID USE IN BATHROOMS, LAUNDRY ROOMS OR ANY OTHER AREAS WHERE THE UNIT MAY COME IN CONTACT WITH WATER.


Do not use the heater if the unit, plug or cord has visible damage or the unit has malfunctioned. Contact a reputable elctrician before reusing.


Do not expose to wet conditions; unit is intended for indoor use only.


This heater is not indended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathrub or other water container.

burn hazardburn hazard
Do not insert or allow any foreign objects to enter the unit via the intake or exhaust vents on the unit. Failure to observe this warning may result in electric shock, fire or damage to the unit.

burn hazardburn hazard
To prevent fire do not block either the air intake or exhaust in any manner. Do not use on soft surfaces like a bed, where openings may get blocked.


Unit is equipped with internal active electrical components that spark during use. Do not use in areas where fumes from gasoline, paint or other flammable liquids may be present.


Extreme caution must be used when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.


Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manned. Discard heater, or return to authorized service facility for examination and/or repair.


Do not use outdoors.

burn hazardburn hazard
Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model: MH165FAET MH360FAET
Heat Output BTU/WATTS 5118/1500 12286/3600
Airflow (CFM) 200 325
Electrical Supply 120Vac 240Vac
Thermostat 32°F - 185°F 32°F - 185°F
Power Cord 6' POWER CABLE INCLUDED 6' POWER CABLE INCLUDED
Dimensions: (L"xW"xH") 13.18"x12.2"x13.97" 14.37"x13.77"x16.14"
Weight (lbs.) 9.6 LBS. 12 LBS.
Clearance to Combustibles
Outlet (M) 6' (1.8M) 6' (1.8M)
Rear (M) 2' (.6M) 2' (.6M)
Top (M) 2' (.6M) 2' (.6M)
Bottom (M) Use only on non-combustible flooring

ASSEMBLY

  • Remove the heater and all of the packaging material from the box.
  • Check all of the packing material for loose parts and set aside.
  • Thoroughly inspect the heater for damage. If any is found do not contact the place of purchase. Please call the Manufacturer at 800-251-0001.

OPERATIONAL INFORMATION

The Mr. Heater Electric forced air heaters are designed to be used by professionals.
Heat is created by electric current passing through coiled metal elements bringing them up to very high temperatures. The fan then passes room air over the hot elements exchanging cold air for warm.
The air moving over the coils keeps them from reaching temperatures that are not safe for the normal operation of the heater. However it is important to keep all combustible materials and any objects that may be sucked into the fan blades at a safe distance (please refer to the specification table for appropriate clearances). Make sure that the fan blades remain unobstructed at all times. Keep unit clean and dust free. Do not block unit intake or exhaust at any time.
These units are designed to be used only with the cord and plug supplied with the unit. Do not use any plug other than the one supplied by the manufacturer. For information on which receptacle is appropriate to your heater.
If damage has occured please refer to the parts listing in this manual and contact the manufacturer for a replacement.


Outlet must be properly grounded, failure to do so may result in electric shock or property damage.


Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or re-locatable power tap (outlet/power strip).

STARTING INSTRUCTIONS

Control Panel

  1. Place the heater on a stable and level surface. Insure clearance to combustibles are observed (See clearances in the specification table).
  2. Turn thermostat counter-clockwise to lowest setting.
  3. Plug the heater into a properly grounded outlet.
  4. Rotate the power knob to the heating position. These units are equipped with a fan only option for circulating air. For heating be sure to rotate the knob to the appropriate setting.
  5. Turn thermostat knob up (clockwise) to the desired setting.
  6. The Heating element and fan will remain on until the temperature setting is reached. The unit will cycle on and off as needed.

TO STOP HEATING

  1. Rotate the thermostat knob to the lowest position.
  2. Flip the power switch into the "off" position
  3. Disconnect plug from power supply

NOTE: This heater is equipped with an overheat limit switch which may cause the heater to stop. This is indicated by a visual alarm when the power switch is in the "ON" position and the "fault" light comes on. Check and remove the cause of the overheating before restarting. This can take up to 10 minutes to cool before it can be restarted.

MAINTENANCE


Never attempt to service the heater while the unit is hot, in use, or plugged in. Only qualified service technicians should service these units.

  • Thoroughly inspect the unit prior to use.
  • Keep heater clean and free of dust and debris.
  • The use of an air compressor can be used to blow out the dust form the heater case. Be sure to only use moderate air pressure as to not damage any internal components.
  • A soft dry cloth should be used for cleaning of outer shell and handle.
  • The fan morot is sealed and does not need to be lubricated.

STORAGE

When not in use, the heater must be disconnected from power source, dusted off and the cord should be loosely wound around the handle.

For service:
Please call Toll-Free 800-251-0001 www.mrheater.com
Our office hours are 8:00 AM - 5:00 PM, EST, Monday through Friday. Please include the model number, date of purchase, and description of problem in all communication.

TROUBLESHOOTING

Unit does not work

  • Defective thermostat or wrong thermostat setting
  • Open circuit breaker or fuse
  • Thermal overload switch has been tripped
  • Damaged or defective plug or outlet

Unit runs continuously

  • Defective thermostat or wrong thermostat setting
  • Heat losses higher than unit capacity (unit undersized)

Elements are on but motor does not rotate

  • Defective Motor
  • Blocked fan blades

Enclosure is extremely hot

  • Defective thermal protection
  • Blocked air vents
  • Defective motor

Desired room temperature cannot be reached

  • One or more elements are defective
  • Defective thermostat or wrong thermostat setting
  • Voltage lower than that written on Rate tag
  • Heat losses higher than unit capacity (unit undersized)

Overheating

  • Defective thermostat or blocked inlet or outlet (HLS tripped)
  • Defective Motor (slow motor operation)


USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH. REPLACEMENT PARTS ARE ONLY AVAILABLE DIRECT FROM THE FACTORY AND MUST BE INSTALLED BY A QUALIFIED SERVICE AGENCY.

WIRING DIAGRAM

WIRING DIAGRAM - MH165FAET
MH165FAET

WIRING DIAGRAM - MH360FAET
MH360FAET

PARTS LIST/EXPLODED VIEW

PARTS LIST/EXPLODED VIEW - MH165FAET

# P/N DESCRIPTION QTY
1 41200 Outlet screen 1
2 41201 Heating Coil 1
3 41202 Internal Chamber 1
4 41203 Coil Support 1
5 41204 Legs 2
6 41205 Angle Guards 1
7 41206 Fan Blade 1
8 41207 Leg/Handle Bracket Backer 2
9 41208 Leg/Handle Bracket Retainer 2
10 41209 Angle Adjustment Retention Knob 2
1 1 41210 Fan Motor 1
12 41211 Inlet Screen 1
13 41212 Power Cord With Plug 1
14 41213 Handles 2
15 41214 Knob 1
16 41215 LED 1
17 41214 Knob 1
18 41217 Control Box 1
19 41218 Thermostat Spacer 1
20 41219 Control Switch 1
21 41220 Top Grip 2
22 41221 Thermostat 1
23 41222 Bottom Grip 2
24 41223 High Limit Switch K40 1
25 41224 High Limit Switch 80C 1
26 41225 Outer Barrel 1

PARTS LIST/EXPLODED VIEW - MH360FAET

# P/N DESCRIPTION QTY
1 41226 Outlet screen 1
2 41227 Heating Coil 1
3 41236 Coil Support 1
4 41228 Internal Chamber 1
5 41229 Legs 2
6 41230 External Barrel 1
7 41205 Angle Guards 1
8 41207 Leg/Handle Bracket Backer 2
9 41208 Leg/Handle Bracket Retainer 2
10 41209 Angle Adjustment Retention Knob 2
11 41231 Fan Blade 1
12 41232 Fan Motor 1
13 41233 Inlet Screen 1
14 41234 Power Cord 1
15 41220 Top Grip 2
16 41235 Handle 2
17 41222 Bottom Grip 2
18 41214 Knob 1
19 41216 LED 1
20 41214 Knob 1
21 41238 Control Box 2
22 41218 Thermostat Spacer 1
23 41219 Control Switch 1
24 41221 Thermostat 1
25 41223 High Limit Switch K40 1
26 41225 High Limit Switch 90C 1

PARTS ORDERING INFORMATION

PURCHASING: Accessories may be purchased at any Mr. Heater local dealer or direct from the factory

FOR INFORMATION REGARDING SERVICE
Please call Toll-Free 800-251-0001 www.mrheater.com
Our office hours are 8:00 AM – 5:00 PM, EST, Monday through Friday.
Please include the model number, date of purchase, and description of problem in all communication.

GENERAL INFORMATION
RETAIN THIS MANUAL FOR FUTURE REFERENCE. FOR QUESTIONS, PROBLEMS, MISSING PARTS BEFORE RETURNING TO RETAILER PLEASE CALL WITH MODEL NUMBER AND SERIAL NUMBER OF HEATER: 1-800-321-0001

MONDAY-FRIDAY 8-5 PM EASTERN TIME
OR E-MAIL USING THE MR. HEATER
WEBSITE: WWW.MRHEATER.COM

In order to provide the best service possible Mr. Heater is now giving you more ways to get in touch with us:
FACEBOOK: Find us on Facebook
TWITTER: Find us on twitter
YouTube: There are now informational videos on YouTube.

WEBSITE: Mr. Heater's full line of product are now at WWW.MRHEATER.COM

ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 800-251-0001
www.mrheater.com • 800-251-0001
