Bose SoundTouch Manual

READ THIS FIRST

Read the Important Safety Instructions.

To set up the SoundTouch controller, you need:

• SoundTouch app installed on your computer.
• SoundTouch system connected to your home network.

Note: The controller operates the SoundTouch system that you select in the app. To connect to another system, refer to the help system in the app.

Quick Start Guide

1. 1. On your computer, launch the SoundTouch app.
   2. Click EXPLORE > SETTINGS > Systems.
   3. Select the system to connect to the controller.
   4. Click CONNECT SOUNDTOUCH CONTROLLER.
2. 1. When prompted by the app, install the batteries into the controller.
      The controller turns on.
      The screen and presets illuminate.
      The screen shows system messages and Now Playing information.
   2. Follow the instructions in the app.

Use only alkaline batteries.

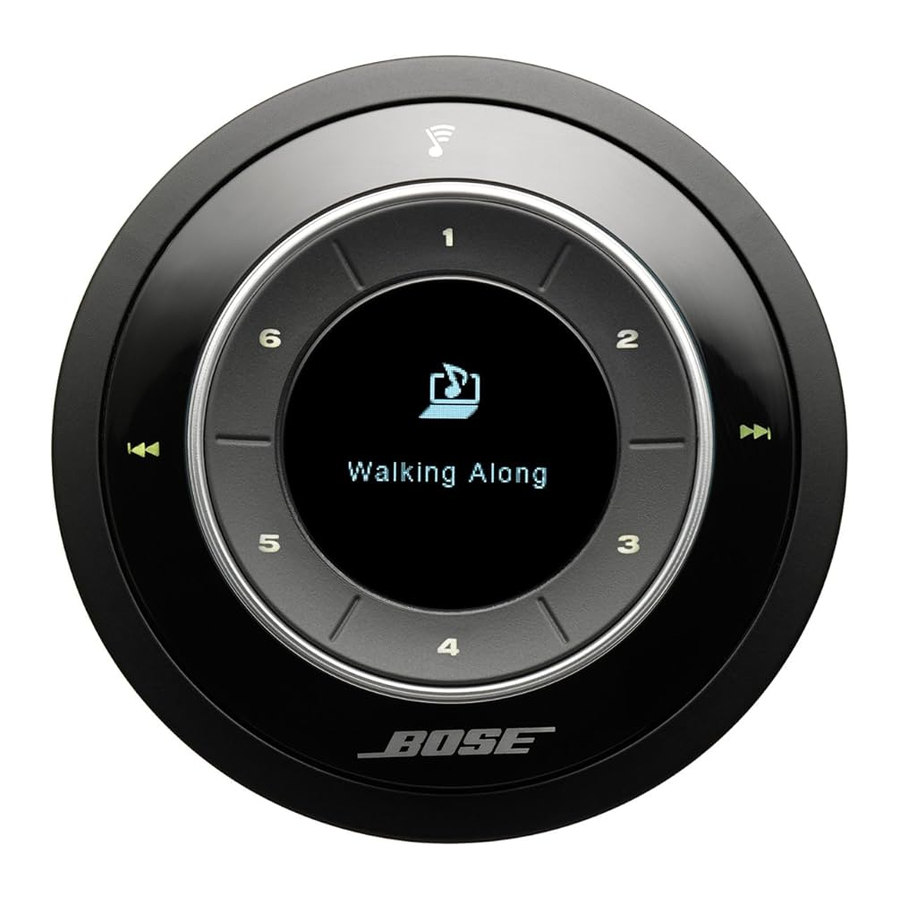

3. Use the controller to operate your system.

   • Press a preset to play it. Press and hold a preset to personalize it.
   • Move your finger around the Presets ring to view presets.
   • Turn the volume ring to adjust the volume.
   • Touch or to skip through content.
   • Press and hold the screen to turn the SoundTouch system on and off.
   • Press the screen to play or pause music.
   • Touch the SoundTouch icon to disconnect the controller from a system. To connect to another system, refer to the help system in the app.

Note: If the controller is in power saving mode, wave your hand within 6 in. (15 cm) above the screen to turn it on.

Mounting the unit on a wall

Wallboard (anchors and screws supplied):

1. Use a 3/16 in. (5 mm) drill bit to drill two holes into 3/8 in. (10 mm) or thicker wallboard. (Use the bracket as a template.)
2. Insert the anchors into the holes and tap lightly to secure.
3. Align the bracket (tab at top) to the anchors. Tighten the screws into the holes.
4. Align the latch to the bracket's tab. Attach the controller.

Wood:

1. Purchase two #6x1.0 in. (25.4 mm) flat-head wood screws.
2. Use a 7/64 in. (2.778 mm) drill bit to drill 2 holes into 3/4 in. (19 mm) or thicker wood. (Use the bracket as a template.)
3. Align the bracket (tab at top) to the holes. Tighten the screws into the holes.
4. Align the latch to the bracket's tab. Attach the controller.

Troubleshooting

The unit does not turn on

• Ensure batteries are installed correctly.
• Press the screen to turn on the controller.
• Install new batteries.

The unit cannot communicate with system

• Move the controller closer to the system.
• Make sure that the controller is connected to a system.

Error message on the unit's screen indicates no connection

• Refer to the help system in the SoundTouch app for connection instructions.

Note: Do not use alcohol to clean the controller.

Important Safety Instructions

Please take the time to carefully read and follow these Important Safety Instructions. They will help you set up and operate your system properly and enjoy its advanced features. Save this sheet for future reference.

WARNINGS and CAUTIONS

•
  To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
•
  Do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the apparatus. As with any electronic products, use care not to spill liquids into any part of the product. Liquids can cause a failure and/or a fire hazard.
• Do not place naked flame sources, such as lighted candles, on or near the apparatus.
• The product must be used indoors. It is neither designed nor tested for use outdoors, in recreation vehicles, or on boats.
• Make no modifications to the system or accessories. Unauthorized alterations may compromise safety, regulatory co mpliance, and system performance.

The product contains magnetic material. Please contact your physician if you have any questions on whether this might affect the operation of your implantable medical device.

NOTES:
Operate this product within the temperature range of 32º F to 113º F (0º C to +45º C).

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Use only attachments/accessories specified by the manufacturer.

For more information on using your product, refer to the help system in the SoundTouch app, or refer to these URLs:
US only: www.Bose.com/productsupport
Global: http://global.Bose.com
