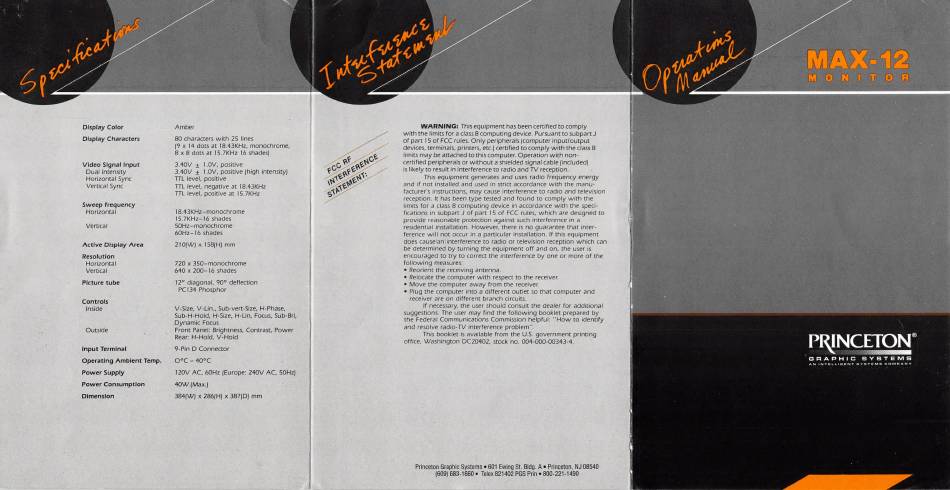

Princeton MAX-12 Operating Manual

| A
: f
y AA c
i
:
Display Color Amber WARNING: This equipment has been certified to comply
; : with the limits for a class B computing device. Pursuant to subpart J
Display Characters 80 characters with 25 lines of part 15 of FCC rules. Only peripherals (computer input/output
(9 x 14 dots at 18.43KHz, monochrome, devices, terminals, printers, etc.) certified to comply with the class B
8 x 8 dots at 15.7KHz 16 shades) € c& limits may be attached to this computer. Operation with non-
Video Signal Input 3.40V + 1.0V, positive co @ ac® nee le te or ene a shielded signal cable (included)
Dual Intensity 3.40V +£ 1.0V, positive (high intensity) € ere «: is like y to resu tin interference to radio and TV reception.
Horizontal Sync TTL level, positive wit "Ay 3 This equipment generates and uses radio frequency energy
Vertical Sync TIL level, negative at 18.43KHz | \ we and if not installed and used in strict accordance with the manu-
TTL level, positive at 15.7KHz ot facturer's instructions, may cause interference to radio and television
| reception. It has been type tested and found to comply with the
Sweep frequency limits for a class B computing device in accordance with the speci-
Horizontal 18.43KHz-monochrome fications in subpart J of part 15 of FCC rules, which are designed to H
15.7KHz-16 shades provide reasonable protection against such interference in a \
Vertical 50Hz-monochrome residential installation. However, there is no guarantee that inter-
60Hz~16 shades ference will not occur in a particular installation. If this equipment
| does causelan|interference to radio or television reception which can
petive Display "rec 2 ON Ein | be determined by turning the equipment off and on, the user is
Resolution encouraged to try to correct the interference by one or more of the
Horizontal 720 x 350-monochrome | following measures:
Vertical 640 x 200-16 shades i ¢ Reorient the receiving antenna.
a ; e Relocate the computer with respect to the receiver.
Picture tube 12" diagonal, 90° deflection * Move the computer away from the receiver.
PC134 Phosphor ¢ Plug the computer into a different outlet so that computer and
Controls receiver are on different branch circuits.
ineide V-Size, V-Lin., Sub-vert-Size, H-Phase, If necessary, the user should consult the dealer for additional
Sub-H-Hold, H-Size, H-Lin, Focus, Sub-Bri, | suggestions. The user may find the following booklet prepared by
Dynamic Focus the Federal Communications Commission helpful: How to identify
Outside Front Panel: Brightness, Contrast, Power alg resolve tolled ite nference prbiene De
Rear: H-Hold, V-Hold This booklet is available from the U.S. government printing
office, Washington DC 20402, stock no. 004-000-00343-4. 6
Input Terminal 9-Pin D Connector
Operating Ambient Temp. O°c - 40°C p a ea
Power Supply 120V AC, 60Hz (Europe: 240V AC, 50Hz)
Power Consumption 40W (Max.)
Dimension 384(W) x 286(H) x 387(D) mm
Princeton Graphic Systems e 601 Ewing St. Bldg. A ¢ Princeton, NJ 08540
(609) 683-1660 © Telex 821402 PGS Prin ¢ 800-221-1490
ination
