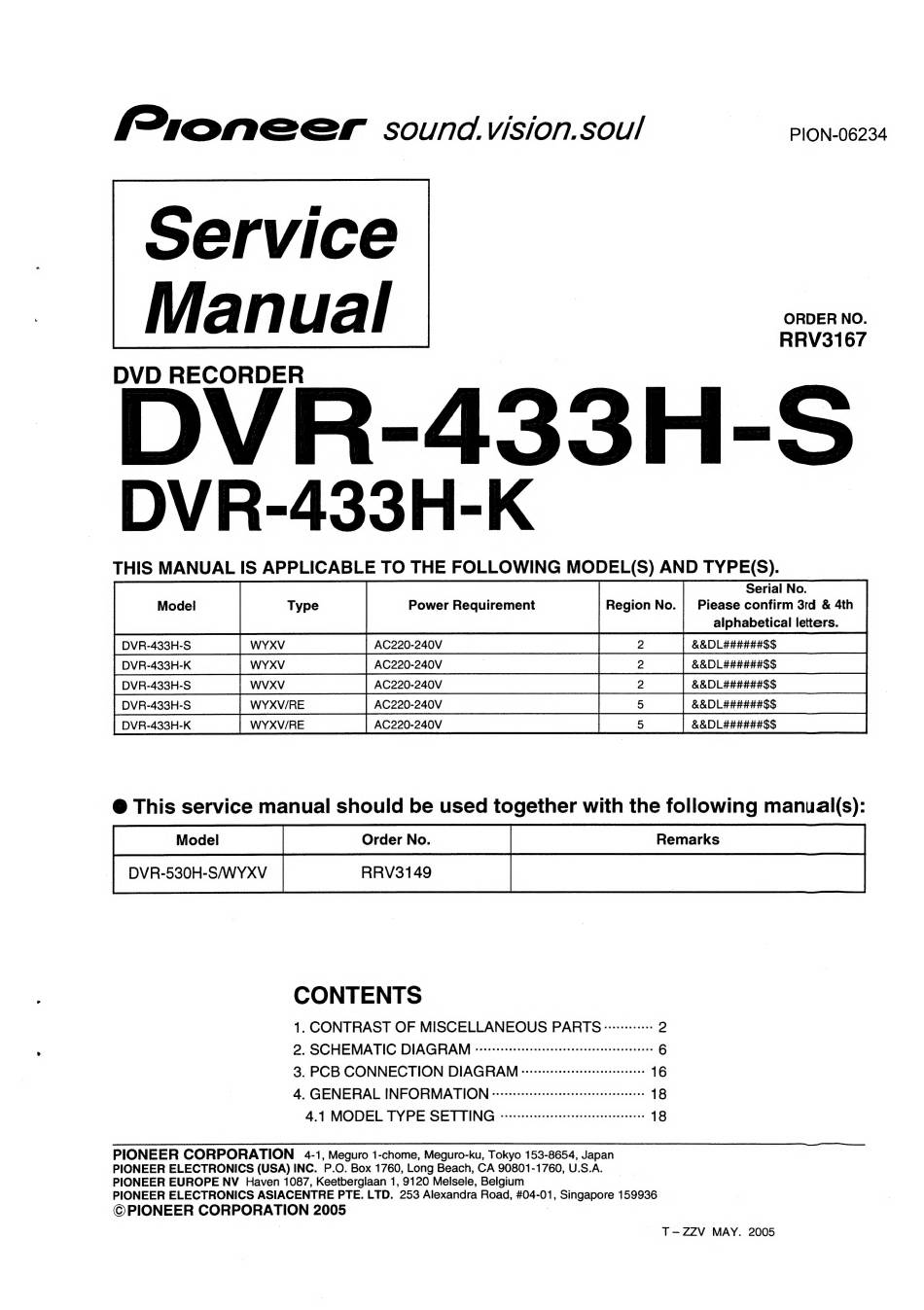

Pioneer DVR-433H-S Service Manual

foneer souncl. vision.sou! -- PION-06234
Service
Manual
DVD RECORDER
HVR-433H-S
DVR-433H-K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Serial No.
Type Power Requirement Region No. | Piease confirm 3rd & 4th
alphabetical letters.
AC220-240V
AC220-240V
AC220-240V
AC220-240V
ORDER NO.
@ This service manual should be used together with the following manual(s):
Order No.
RRV3149
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -:------+--- 2
2. SCHEMATIC DIAGRAM cevsesccescceeeseeeeteeeceessesseeeesenses 6
3 PCB CONNECTION DIAGRAM -ovvssseseeereeeeeeeeerreeeees 16
4. GENERAL INFORMATION ----e-sesereeeeeeeeeeeereereeeeeeees 18
A 4 MODEL TYPE SETTING sitsiseereteirent ns 18
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium |
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2005
| T-ZZV MAY. 2005
