Summary of Contents for Pyle PMUX6

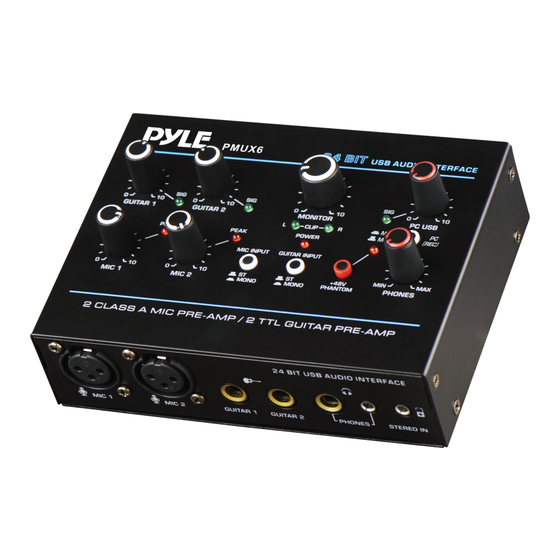

- Page 1 Visit Our Website SCAN ME PyleUSA.com PMUX6 Questions or Comments? Professional USB Audio Interface We are here to help! USER GUIDE Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
-
Page 2: Fcc Information
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FCC INFORMATION RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE. WARNING: Changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Features: •... -
Page 3: Connection Diagram
Attention: CONNECTION DIAGRAM To avoid possible malfunction, damage to the product, data loss, or harm to other property, please follow these guidelines: OPERATION • For MIC & GUITAR inputs Do not use the device near TVs, radios, stereo equipment, mobile phones, or other electronic devices to prevent noise interference. -
Page 4: Controls And Functions
CONTROLS AND FUNCTIONS CONTROLS AND FUNCTIONS 1. [GUITAR] Controller: Adjusts the input level of the guitar channel to balance the volume. 2. [SIG] Signal Indicator: Brightness changes based on the input signal's intensity. 3. [PEAK] LED: Lights up when the input signal is too high. If it ashes continuously, turn down the volume by rotating the [MIC] Controller counterclockwise. -
Page 5: Cleaning, Maintenance And Storage
13. [MIC] Input Jack: Connects a microphone using an XLR plug. CLEANING, MAINTENANCE, AND STORAGE 14. [GUITAR] Input Jack: For instruments such as electric guitars or basses. Cleaning: 15. [PHONES] Output Jack: Two options (6.35 mm and 3.5 mm) for connecting •...
