User Manual of Product 1:
PYLE-PRO Premium Direct Injection Audio Box - Passive DI
Unit Hum Eliminator w/ Input Attenuator to Connect Guitar &
Bass - 1/4 Inch Impedance Transformer Connector to Balanced
& Unbalanced XLR-PDC22
User Manual of Product 2:
Pyle-Pro Pyle, Black (PDC21)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pyle PDC22
Summary of Contents for Pyle PDC22
- Page 1 User Manual of Product 1: PYLE-PRO Premium Direct Injection Audio Box - Passive DI Unit Hum Eliminator w/ Input Attenuator to Connect Guitar & Bass - 1/4 Inch Impedance Transformer Connector to Balanced & Unbalanced XLR-PDC22 User Manual of Product 2:...

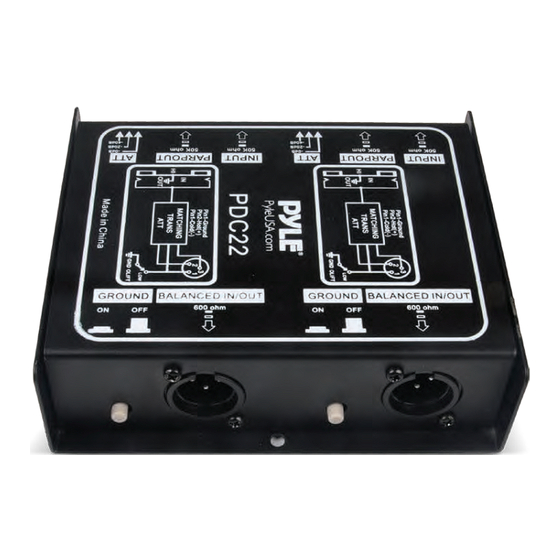

- Page 2 PDC22 Dual 1/4'' Instrument To Balanced & Unbalanced (1/4'' XLR) Direct Box...
- Page 3 A direct box, or DI box, provides the facility for the direct insertion of an audio signal into a mixer or recorder. The PDC22 o ers a variety of DI solutions for live sound and recording applications. You can connect all kinds of audio signals like guitars, keyboards, outboard signal processors and even the high-powered speaker output from an amplifier.
- Page 4 The PDC22 balanced output provides a clean signal at a low level so long runs of cable are possible. Another benefit from a balanced connection is common mode rejection, which provides cancellation of the bad sounds (hums and buzzes) while leaving the original signal pure.
- Page 5 The PDC22 provides the capability of tapping o the signals from amplifiers, such as the output or guitar amp or power amplifier. You can even use PDC22 o connect to the speaker output of a consumer stereo system or boom box, for example, if you want to sample some old records or cassette tapes.
- Page 6 Main PA Mixer The PDC22 can be quite useful on stage or in the studio for connecting unbalanced devices, particularly key boards. The output levels of many keyboards are low. So their signals can benefit greatly by connecting their unbalanced outputs to the PDC22 by doing so the signal can be sent cleanly for long distances while benefiting...
- Page 8 PDC21 1/4'' Instrument To Balanced & Unbalanced (1/4''/XLR) Direct Box...
- Page 9 Front and Rear Panel Layout 1. INPUT: 1/4" input connector. 2. PARA OUT: It’s parallel output 1/4" jack for passing the input signal through to a stage amplifier or monitor system. 3. ATT Switch: input attenuation, switchable(0dB,-20dB,-40dB) 4. BALANCED OUTPUT: Male XLR connector. 5.
- Page 10 The PDC21 balanced output provides a clean signal at a low level so long runs of cable are possible. Another benefit from a balanced connection is common mode rejection, which provides cancellation of the bad sounds (hums and buzzes) while leaving the original signal pure.
- Page 11 Connecting to High Power Signals The PDC21 provides the capability of tapping o the signals from amplifiers, such as the output or guitar amp or power amplifier. You can even use PDC21 o connect to the speaker output of a consumer stereo system or boom box, for example, if you want to sample some old records or cassette tapes.
- Page 12 Converting the output of Unbalanced Devices Link Output Typical Stereo Keyboard Hook-up Input Keyboard Stereo Balanced Output Output (opposite panel) Input Link Output On Stage Keyboard Monitors Main PA Mixer The PDC21 can be quite useful on stage or in the studio for connecting unbalanced devices, particularly key boards.
