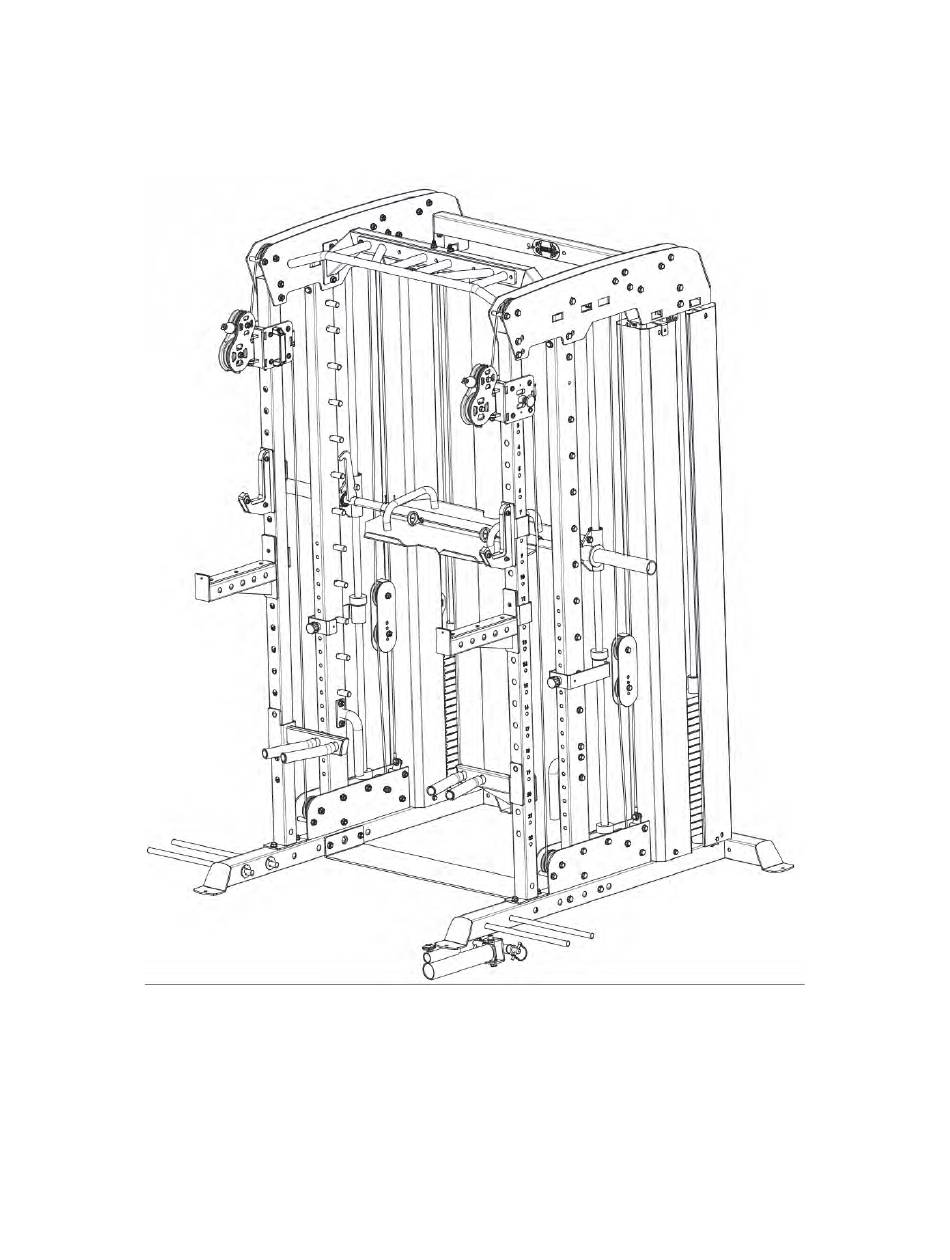

- Page 1 MEGATRON STANDARD MT-R-2S ASSEMBLY INSTRUCTIONS MEGATRON STANDARD MACHINE...
- Page 2 CONTENTS 01/IMPORTANT NOTICE 02/ ASSEMBLY PROCEDURE AND BILL OF MATERIALS 03/PRODUCT DESCRIPTION 04/PRODUCT PARAMETER 05/MAINTENANCE GUIDELINE 06/TROUBLESHOOTING 07/WARRANTY INSTRUCTION...
- Page 3 Pg 3 01/IMPORTANT NOTICE Thank you for choosing our machine, proper use of the machine is important to keep you convenient and away from danger. Please read the instruction before operating the machine: 1. Please read all user manuals before operating the machine and operate the machine according to the instructions.
- Page 5 02/ASSEMBLY PROCEDURE Step 1 1） Bill of materials Name Specification Right bottom tube Weldment Left bottom tube Weldment upright Weldment Upright Weldment Guide rod Weldment Handle Weldment Small rod φ20*50 Crash pad φ50*φ22*45 Carriage bolt M10*85 Carriage bolt M12*95 Hexagon socket cylinder head bolt M10*70 Hexagon socket cylinder head bolt M10*75...
- Page 6 2） Step 2 Bill of materials Name Specification Checkered plate T6*200*1227 Hexagon socket cylinder head bolt M12*95 Flat washer Φ12 Hexagon lock nut...
- Page 7 3） Step 3 Bill of materials Name Specification Sliding block Weldment Weight stack selector B Aluminum pulley Φ114 Selector pin Round-shaped shaft Top plate Weight stack Hexagon socket cylinder head bolt M10*50 Flat washer Φ10 Hexagon lock nut Weight stack label Aluminum pulley Φ90...
- Page 8 4） Step 4 Bill of materials Name Specification Guide rod bracket Weldment LM shaft φ25*1929 Buffer bracket Weldment Rubber Bumper φ50*φ22*45 Rubber buffer ring Φ80*Φ50*T5 Quick pull pin Ø38*M16*1.5 Hexagon socket cylinder head bolt M12*25 Hexagon socket cylinder head bolt M12*70 Hexagon socket cylinder head bolt M12*120...
- Page 9 5） Step 5 Bill of materials Name Specification Short frame Weldment Cable bumping post 1 Round tube φ14*T1.5*60 Nylon bush Φ16*24 Hexagon bolt M10*25 Hexagon socket cylinder head bolt M10*85 Hexagon socket cylinder head bolt M10*90 Hexagon socket cylinder head bolt M12*85 Hexagon socket cylinder head bolt M12*80...
- Page 10 6） Step 6 Bill of materials Name Specification Front upper connecting assembly Weldment Rear upper connecting assembly Weldment Chin-up frame Weldment Lifting hook Round steelφ12*314 Hexagon socket cylinder head bolt M12*80 Hexagon socket cylinder head bolt M12*90 Flat washer Φ10 Flat washer Φ12 Hexagon lock nut...
- Page 11 7） Step 7 Bill of materials Name Specification Bottom pulley baffle Steel plateT5*532.5*150 Cable bumping post 1 Round tube φ14*T1.5*60 Bracket Weldment Nylon bush Φ16*24 Hexagon socket cylinder head bolt M10*85 Hexagon socket cylinder head bolt M10*90 Hexagon socket cylinder head bolt M12*85 Flat washer Φ10...
- Page 12 8） Step 8 Bill of materials Name Specification Pulley frame Weldment Pulley seat Weldment SWC08 Cable 3 Φ5*6955 SWC08 Cable 4 Φ5*3220 Hexagon socket cylinder head bolt M10*25 Hexagon socket cylinder head bolt M10*50 Flat washer Φ10 Hexagon lock nut Aluminum pulley Φ90 Hexagon socket cylinder head bolt...
- Page 13 9） Step 9 Bill of materials Name Specification Shroud T1*1963*484.2 Hexagon socket cylinder head bolt M8*16 Flat washer Φ8...
- Page 14 10） Step 10 Bill of materials Name Specification Footboard assembly Weldment L-shaped latch Φ10*70...
- Page 15 Pg 15 03/ PRODUCT DESCRIPTION The machine is for indoor fitness equipment use. It is suitable for anaerobic exercise, mainly used to train the total body muscles while improving cardio-pulmonary functions. Working out with the machine will enhance overall muscularity. Users can adjust the resistance by weight stack easily.
