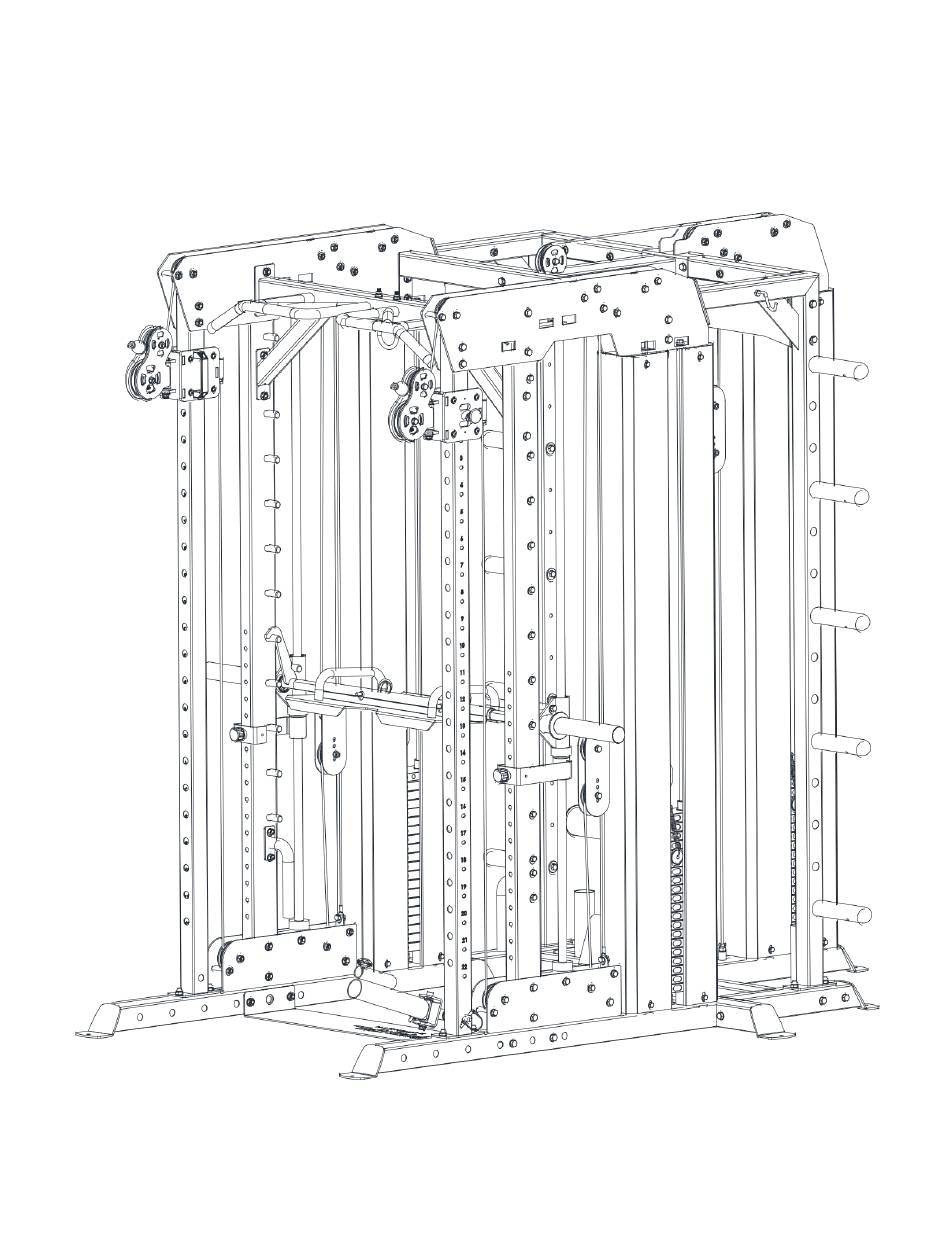

- Page 1 MEGATRON DELUXE MT-R-3S ASSEMBLY INSTRUCTIONS...
- Page 2 CONTENTS 01/IMPORTANT NOTICE 02/ ASSEMBLY PROCEDURE AND BILL OF MATERIALS 03/PRODUCT DESCRIPTION 04/PRODUCT PARAMETER 05/MAINTENANCE GUIDELINE 06/TROUBLESHOOTING 07/WARRANTY INSTRUCTION...
- Page 3 Pg 3 01/IMPORTANT NOTICE Thank you for choosing our machine, proper use of the machine is important to keep you convenient and away from danger. Please read the instruction before operating the machine: 1. Please read all user manuals before operating the machine and operate the machine according to the instructions.
- Page 6 02/ASSEMBLY PROCEDURE 1） Step 1 Bill of materials Name Specification Right bottom tube Weldment Left bottom tube Weldment upright Weldment Upright Weldment Guide rod Weldment Handle Weldment φ20*50 Small rod Rubber Bumper φ50*φ22*45 Carriage bolt M10*85 Carriage bolt M12*95 Hexagon socket cylinder head bolt M10*70 Hexagon socket cylinder head bolt M10*75...
- Page 7 2） Step 2 Bill of materials Name Specification Checkered plate T6*200*1227 Guide rod assembly Weldment Rear bottom tube 1 Weldment Rear bottom tube 2 Weldment Rear upright Weldment Handle bracket Weldment Round tube φ14*1.5*72 Cable bumping post 2 Round tube φ14*1.5*29 Idler wheel fixed leg φ50*φ22*45 Crash pad...
- Page 8 3） Step 3 Bill of materials Name Specification Sliding block Weldment Weight stack selector A Weight stack selector B Φ114 Aluminum pulley Selector pin Round-shaped shaft Top plate Weight stack Hexagon socket cylinder head bolt M10*50 Φ10 Flat washer Hexagon lock nut Weight stack label Φ90 Aluminum pulley...
- Page 9 4） Step 4 Bill of materials Name Specification Guide rod bracket Weldment φ25*1929 LM shaft Buffer bracket Weldment φ50*φ22*45 Crash pad Φ80*Φ50*T5 Rubber buffer ring Quick pull pin Ø38*M16*1.5 Hexagon socket cylinder head bolt M12*25 Hexagon socket cylinder head bolt M12*70 Hexagon socket cylinder head bolt M12*120...
- Page 10 5） Step 5 Bill of materials Name Specification Short frame Weldment Hook assembly Weldment Round tube φ14*T1.5*60 Cable bumping post 1 Φ16*24 Nylon bush Hexagon bolt M10*25 Hexagon socket cylinder head bolt M10*85 Hexagon socket cylinder head bolt M10*90 Hexagon socket cylinder head bolt M12*85 Hexagon socket cylinder head bolt M12*80...
- Page 11 6） Step 6 Bill of materials Name Specification Front upper connecting assembly Weldment Rear upper connecting assembly Weldment Hanger assembly Weldment Rear upper connecting assembly 2 Weldment Chin-up frame Weldment Round steelφ12*314 Lifting hook Hexagon socket cylinder head bolt M12*80 Hexagon socket cylinder head bolt M12*90 Φ10...
- Page 12 7） Step 7 Bill of materials Name Specification Rear top beam assembly Weldment Round tube φ14*T1.5*60 Cable bumping post Φ16*24 Nylon bush Hexagon bolt M10*25 Hexagon socket cylinder head bolt M10*50 Hexagon socket cylinder head bolt M10*85 Hexagon socket cylinder head bolt M10*90 Hexagon socket cylinder head bolt M12*70...
- Page 13 8） Step 8 Bill of materials Name Specification Bottom pulley baffle Steel plateT5*532.5*150 Round tube φ14*T1.5*60 Cable bumping post 1 Bracket Weldment Φ16*24 Nylon bush Hexagon socket cylinder head bolt M10*85 Hexagon socket cylinder head bolt M10*90 Hexagon socket cylinder head bolt M12*85 Φ10 Flat washer...
- Page 14 9） Step 9 Bill of materials Name Specification Adjustable foam rod Weldment Checkered plate T6*150*219 Annular tube Weldment Φ90*6 Foam end cover Φ90 foam end cover Φ90*6 Φ23*Φ90*190 Foam(black) Hexagon socket countersunk bolt M8*20 Quick pull pin Ø38*M16*1.5 Hexagon socket cylinder head bolt M12*95 Φ12 Flat washer...
- Page 15 10） Step 10 Bill of materials Name Specification Pulley frame Weldment Pulley seat Weldment Φ5*6955 SWC08 Cable 3 Φ5*3220 SWC08 Cable 4 Φ5*3875 SWC08 Cable 1 Φ5*3190 SWC08 Cable 2 Hexagon socket cylinder head bolt M10*25 Hexagon socket cylinder head bolt M10*50 Φ10 Flat washer...
- Page 16 11） Step 11 Bill of materials Name Specification Shroud T1*1963*484.2 Weight plate rod Weldment Φ25*Φ50*230 Barbell sleeve Hexagon socket cylinder head bolt M8*16 Hexagon socket cylinder head bolt M10*25 Φ8 Flat washer Φ10 Large Flat washer...
- Page 17 12） Step 12 Bill of materials Name Specification Footboard assembly Weldment Φ10*70 L-shaped latch...
- Page 18 Pg 18 03/ PRODUCT DESCRIPTION The machine is for indoor fitness equipment use. It is suitable for anaerobic exercise, mainly used to train the total body muscles while improving cardio-pulmonary functions. Working out with the machine will enhance overall muscularity. Users can adjust the resistance by weight stack easily.
