GENERAL
Power source:
Power consumption:
Semiconductors:
Dimensions:
Weight:

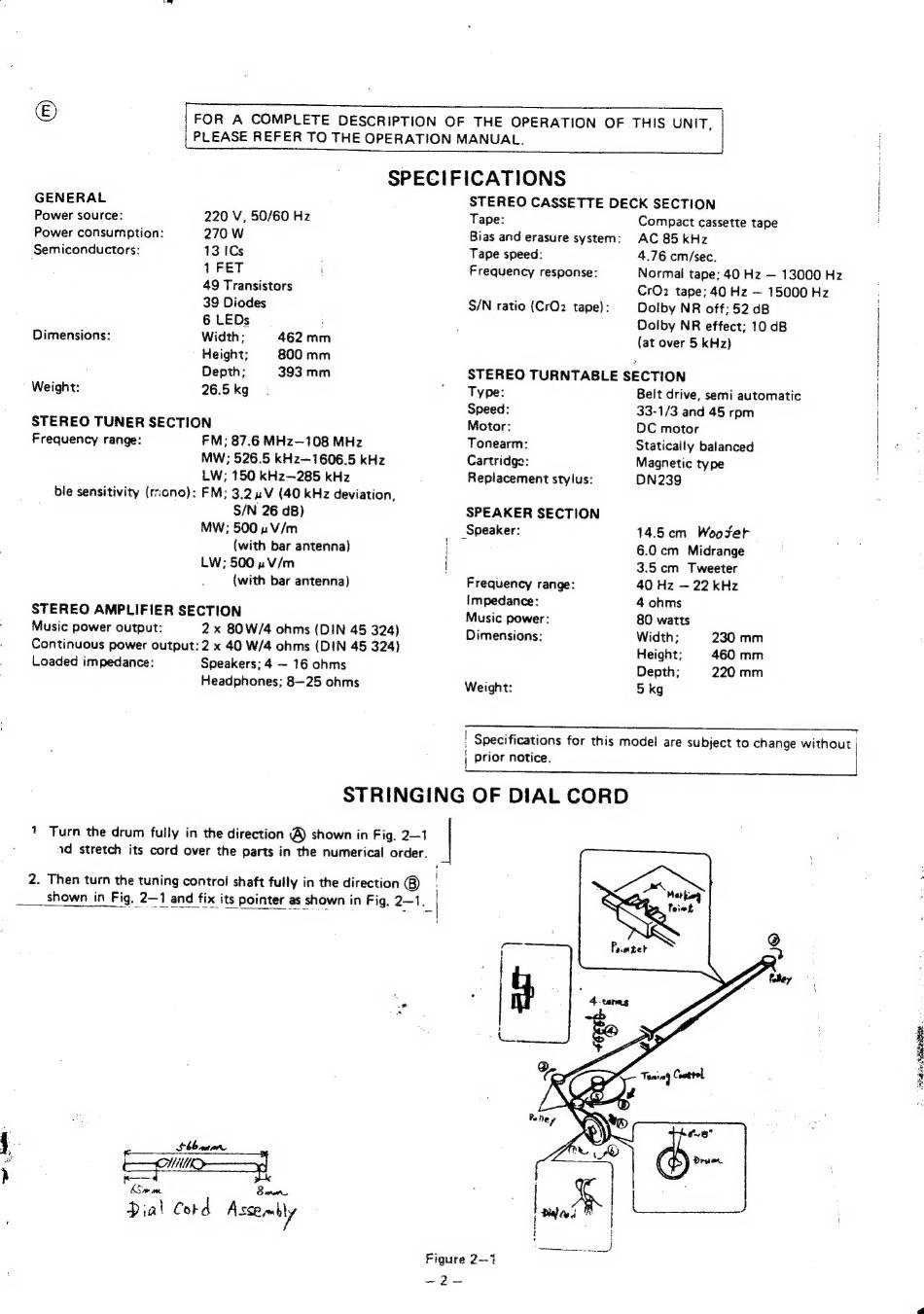

SPECIFICATIONS
STEREO CASSETTE DECK SECTION
220 V, 50/60 Hz
270 W
13 ICs
1 FET
49 Transistors
39 Diodes
6 LEDs :
Width; 462 mm
Height; 800 mm
Depth; 393 mm
26.5 kg
STEREO TUNER SECTION
Frequency range:
ble sensitivity (ricno):
FM; 87.6 MHz—108 MHz
MW; 526.5 kHz—1606.5 kHz
LW; 150 kHz—285 kHz
FM; 3.2uV (40 kHz deviation,
S/N 26 dB)
MW; 500 1 V/m
(with bar antenna)
LW; 500 np V/m
(with bar antenna)
STEREO AMPLIFIER SECTION
Music power output:
Continuous power output:
Loaded impedance:
2 x 80W/4 ohms (DIN 45 324)
2 x 40 W/4 ohms (DIN 45 324)
Speakers; 4 — 16 ohms
Headphones; 8—25 ohms
STRINGING OF DIAL CORD
£bb ster
Sam
won 8 end
+
Tape:
Bias and erasure system:
Tape speed:
Frequency response:
S/N ratio (CrO2 tape):
Compact cassette tape
AC 85 kHz
4.76 cm/sec.
Normai tape; 40 Hz — 13000 Hz
CrO2 tape; 40 Hz — 15000 Hz
Dolby NR off; 52 dB
Dolby NR effect; 10 dB
(at over 5 kHz)
STEREO TURNTABLE SECTION
Type:
Speed:
Motor:
Tonearm:
Cartridge:
Replacement stylus:
SPEAKER SECTION
_Speaker:
Frequency range:
Impedance:
Music power:
Dimensions:
Weight:
| Prior notice.
Figure 2—14
RG ee
Belt drive, semi automatic
33-1/3 and 45 rpm
DC motor
Statically balanced
Magnetic type
DN239
14.5cm Woover
6.0 cm Midrange
3.5cm Tweeter
40 Hz — 22 kHz
4 ohms
80 watts
Width; 230 mm
Height; 460 mm
Depth; 220 mm
5 kg
ject to change without |
{
