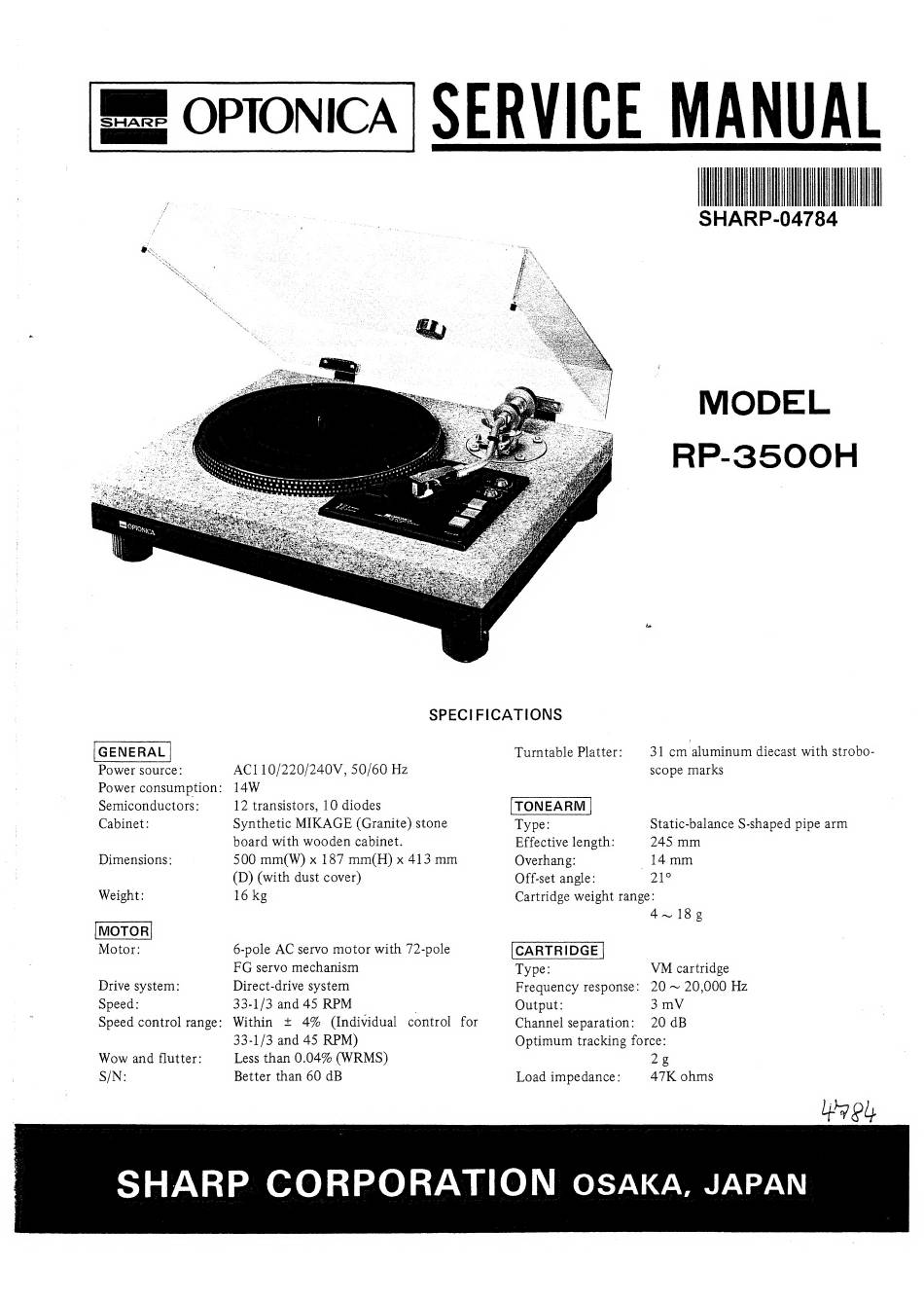

SERVICE MANUAL
we OPIONICA
HG
SHARP-04784
MODEL
RP-3500H
SPECIFICATIONS
GENERAL
Turntable Platter:
3] em alumintim diecast with strobo-
Power source:
AC1 10/220/240V, 50/60 Hz
scope marks
Power consumption:
14W
Semiconductors:
12 transistors, 10 diodes
Cabinet:
Synthetic MIKAGE (Granite) stone
Type:
Static-balance S-shaped pipe arm
board with wooden cabinet.
Effective length:
245 mm
Dimensions:
500 mm(W) x 187 mm(H) x 413 mm
Overhang:
14mm
(D) (with dust cover)
Off-set angle:
Zi
Weight:
16 kg
Cartridge weight range:
4—18g8
Motor:
6-pole AC servo motor with 72-pole
FG servo mechanism
Type:
VM cartridge
Drive system:
Direct-drive system
Frequency response:
20 ~ 20,000 Hz
Speed:
33-1/3 and 45 RPM
|
Output:
3 mV
Speed control range:
Within
+ 4%
(Individual
control for
Channel separation:
20 dB
33-1/3 and 45 RPM)
Optimum tracking force:
Wow and flutter:
Less than 0.04% (WRMS)
22
S/N:
Better than 60 dB
Load impedance:
47K ohms
47 ly
