Dometic Go Power! ASW-1200 Quick Start Manual

PRODUCT SPECIFICATIONS
ELECTRICAL SPECIFICATONS
Rated Power
Nominal Voltage
Input Voltage Range
Input Over-Voltage Protection
Input Over-Voltage Warning
Input Under-Voltage Protection
Input Under-Voltage Warning
Input Over-Voltage Recovery
Input Under-Voltage Recovery
Surge Rating Current (Max)
INVERTER
No Load Current @12.5VDC
Power Saving mode @12.5VDC
Overload (Max. 1 min.)
Peak Power (Max. 3 sec.)
Peak Power (Max. 2 sec.)
Frequency
Output Voltage
Max. E ciency
Output Waveform
Total Harmonic Distortion (THD)
TRANSFER Transfer Relay Rating
SWITCH
Transfer Time
DC Input Protection
AC Output Protection
PROTECTION
AC Input Protection
Temperature Protection
REMOTES Go Power! SWR-A Remote (GP-SWR-A), or PowerTrak™ Screen (GP-PT-DIS-3 and GP-RVC-EXT-25)
Full Load
OPERATING
Power de-rating
TEMPERATURE
Storage
RANGE
Operating Humidity Range
Dimensions W x H x D (in/mm)
MECHANICAL
SPECIFICATIONS
Net Weight (lb/kg)
Safety Standards
SAFETY
AND EMS EMC Standards
WARRANTY
WARNINGS
Do not open or disassemble the Inverter. Attempting to do so may cause risk of electrical shock or fire.
We guarantee this product against defects in materials and workmanship for a period of 24 months from
date of purchase. In case you need to repair or replace any defective power inverters, please contact your
local Go Power! distributor.
This warranty will be considered void if the unit has been misused, altered, or accidentally damaged.
Go Power! is not liable for anything that occurs as a result of the user's fault.
Please read the Owner's Manual BEFORE connecting to the supply.
Scan the QR code to view the complete product manual
ASW-1200 ASW-1800 ASW-3000
1200 W 1800 W 3000 W
12.5 VDC
10 ~ 16.5 VDC ± 0.3 Vdc
> 16.5 ± 0.3 Vdc
> 15.5 ± 0.3 Vdc
< 10.0 ± 0.3 Vdc
< 11.0 ± 0.3 Vdc
<13.5 ± 0.3 Vdc
>12.5 ± 0.3 Vdc
133 A 197 A 330 A
≤ 1.8 A ≤ 2.0 A ≤ 2.8 A
< 0.1 A
1201 ~ 1440W 1801 ~ 2160W 3001 ~ 3600W
1441 ~ 2400W 2161 ~ 3600W 3601 ~ 6000W
> 2400W > 3600W > 6000W
50/60 Hz ± 0.3 Hz (User-selectable)
120 Vac ±3%
91%
Pure Sine Wave
< 3% (Bat. 12.5V @120Vac, resistive load)
30A continuous
≤ 20mS
OCP (fuse), Reverse Polarity (mosfet), OVP, UVP
Short-Circuit, Overload
30A Breaker (Automatically Reset)
Heatsink Temperature Reaches > 203 °F / 95 °C
-68°F ~ 104°F / -20°C ~ 40°C
105.8°F ~ 140°F / 41°C~ 60°C
-104°F ~ 158°F / -40 ~ 70°C
0-95% RH, non-condensing
8.94 x 3.39 x 13.62 in 9.96 x 3.39 x 14.80 in
11.42 x 4.02 x 16.50.in
(227 x 86 x 346) (253 x 86 x 376)
(290 x 102 x 419)
7.50 lb (3.4 kg) 9.70 lb (4.4 kg) 14.33 lb (6.5 kg)
Certified UL458
Certified FCC
Certified FCC Class A
Class B
2 year
6
7

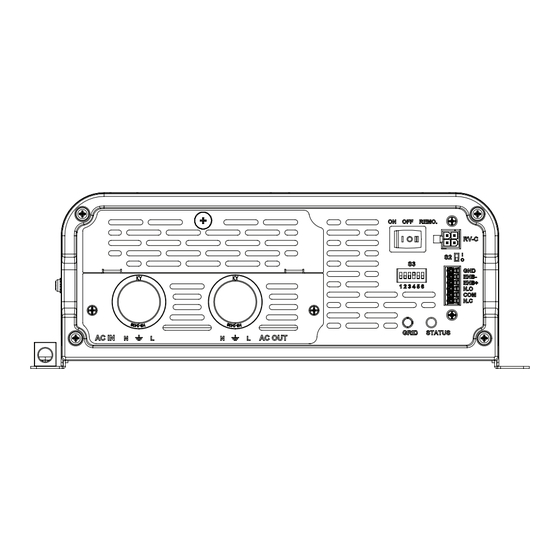

NO. DESCRIPTION
1 ON/OFF Remote Main Switch
2 RV-C Connection Port
3 RV-C Terminal Switch
LED Indicator
4
8
9
NO. DESCRIPTION
8 Remort Port
DC Positive Terminal
9
Find tech tips, manuals and support at gopowersolar.com
SCAN TO SEE
FULL MANUAL
5
1
2
3
4
NO. DESCRIPTION
5 Dip Switches
6
AC Out
7
AC In
NO. DESCRIPTION
10 DC Negative Terminal
Ground
11
10
11
