Before making any changes to the IA-440i, read the
document. Unauthorized modifications to the card can void the warranty.

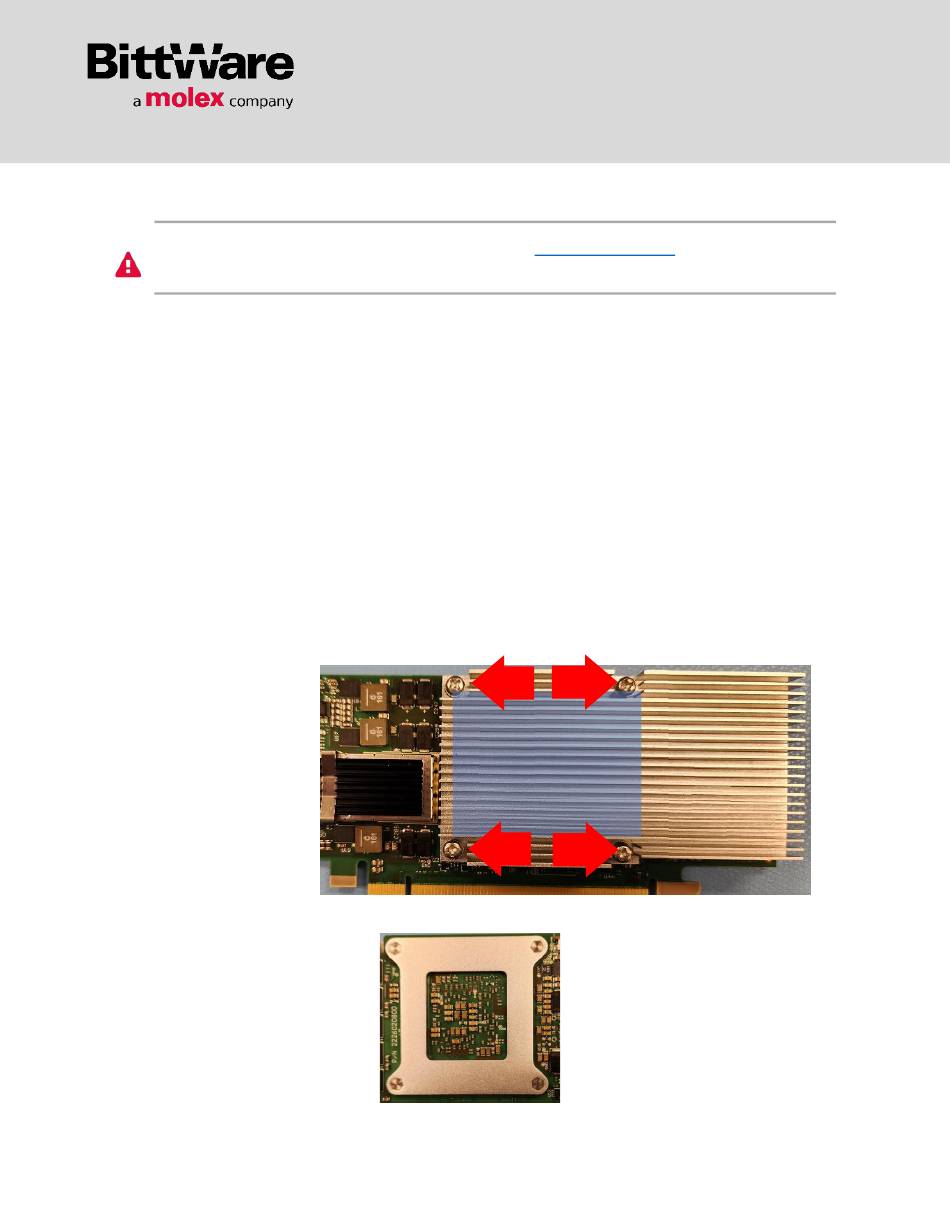

IA-440i Top Level Assembly
Tools Required
You will need the following tools for this procedure:
•
Size no. 1 Posi-headed screwdriver
•
50ml two-part dispensing gun (for thermal gap filler)
•
Mixing dispensing nozzles for dispensing gun
•
Bergquist GF3500S35-50CC Thermal Interface Gap Filler
Removing the Heatsink
To remove the heatsink from the IA-440i,
1. Place the card on a flat surface.
2. Following the
sequence
shown, turn the
screws up to two
full turns until
they are
loosened from
the backplate
PEM nuts.
3. Remove the backplate.
© 2023 BittWare, a Molex company
Top Level Assembly Instructions
warranty information
1
4
3
2
IA-440i
20-Apr-2023
at the end of this
1
Advertisement
Related Manuals for molex BittWare IA-440i
Summary of Contents for molex BittWare IA-440i
- Page 1 1. Place the card on a flat surface. 2. Following the sequence shown, turn the screws up to two full turns until they are loosened from the backplate PEM nuts. 3. Remove the backplate. © 2023 BittWare, a Molex company...
- Page 2 FPGA. 3. Use a new lint free cloth and isopropyl alcohol to clean the package lid of the FPGA (indicated with a red dot). 4. Set the assembly aside to dry. © 2023 BittWare, a Molex company...
- Page 3 PEM nuts. 11. Tighten each screw to a torque value of 2 in-lb (22 N·cm). © 2023 BittWare, a Molex company...
- Page 4 Installing DIMMs at the customer location will void the BittWare hardware warranty. If you suspect an issue with your DIMM, please contact BittWare for support. For any clarification on operations allowed under the warranty, please reach out to BittWare. © 2023 BittWare, a Molex company...
