USE AND CARE GUIDE

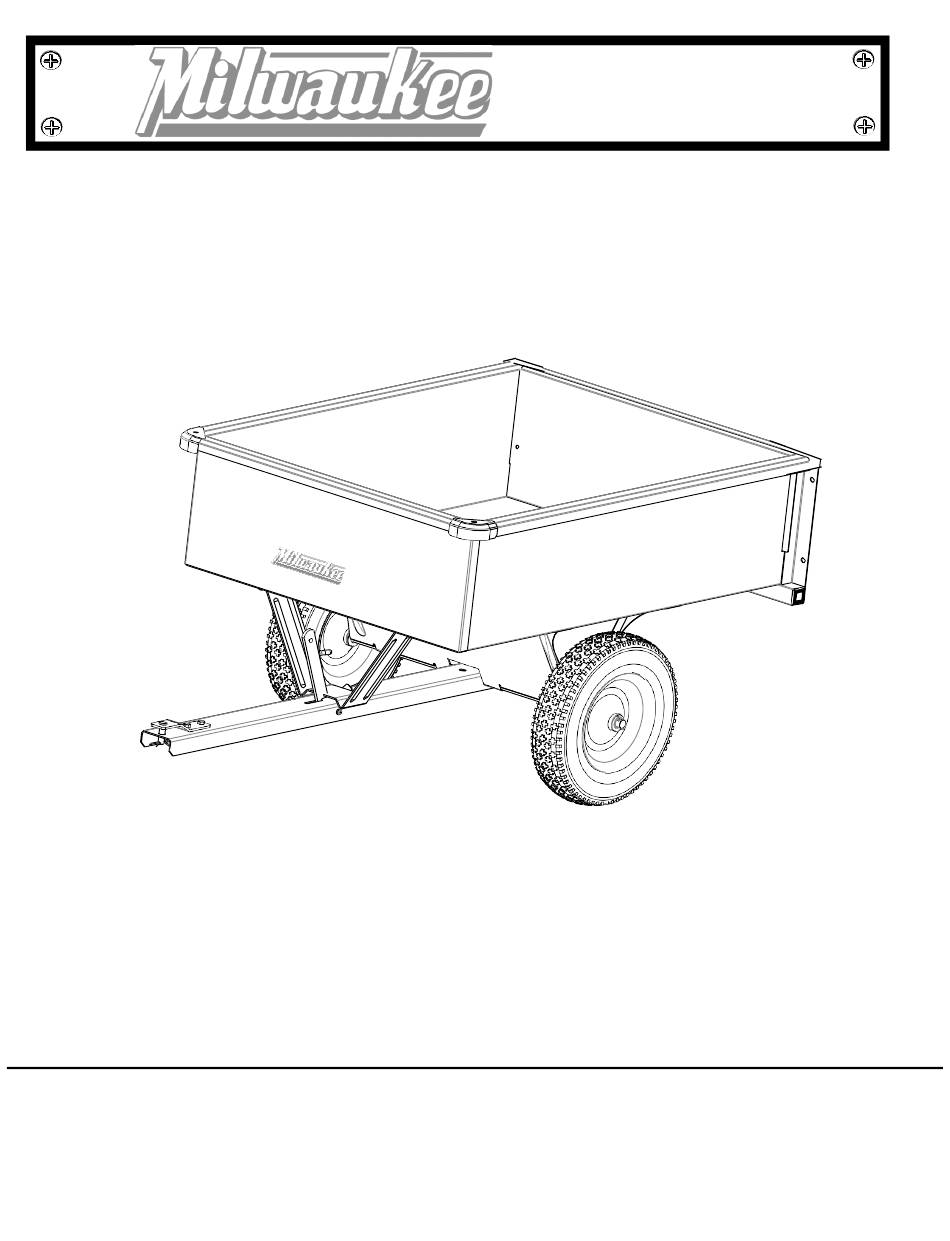

500 LB STEEL DUMP CART
Questions, problems, missing parts? Before returning to the store,
call Precision Customer Service
8 a.m. – 4 p.m., CST, Monday-Friday
1-800-225-5891
1351M Rev 4/23
THANK YOU!!
We appreciate the trust and confidence you have placed in the purchase of this 750 lb. Steel Dump Cart. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Milwaukee!
Advertisement
Table of Contents
Related Manuals for Milwaukee LC700BM
Summary of Contents for Milwaukee LC700BM
- Page 1 We appreciate the trust and confidence you have placed in the purchase of this 750 lb. Steel Dump Cart. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Milwaukee!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Service Parts (continued) ..........8 500 lb Steel Dump Cart ..........8 Safety Information ............2 SAFETY INSTRUCTIONS ......... 2 Troubleshooting ............8 Pre-Assembly ..............3 Maintenance ..............8 Planning Installation ........... 3 Storage ................ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING INSTALLATION Remove the Hardware from the Hardware Sack and verify that all the Hardware shown are included. TOOLS REQUIRED (1) 9/16 in. Wrenches Safety (1) Flat Head (1) Hammer goggles Screwdriver Pliers (1) 1/2 in. Wrenches HARDWARE INCLUDED NOTE: Hardware not shown to actual size. -
Page 4: Package Contents
Pre-Assembly (Continued) PACKAGE CONTENTS ___K ___L ___N ___M ___O ___P Part Description Quantity 3498 - **Wheel 1364TB - Cart Body 1356C-17 - Tow Bar Assembly 478TB - Under Carriage 4630TB - Pedestal 1252 - Axle **Tread pattern on tires may vary. -
Page 5: Assembly
Assembly Under Carriage Assembly Pedestal Assembly □ Attach the Under Carriage (N) to the bottom of the □ Attach the Pedestal (O) to the Cart Body (L) using Cart Body (L) using 3/8 in. x 3/4 in. Truss Head 5/16 in. x 3/4 in. Truss Head Bolts (I), 5/16 in. Bolts (G), 3/8 in. -
Page 6: Assembly (Continued)
Assembly Wheel Assembly □ Place a 1 in. Spacer (J) and a 3/4 in. Flat Washer Wheel (K) (B) onto the Axle (P) up against the Under Carriage (N). Spacer (J) 1/8 in. x 1-1/4 in. □ Next place the Wheel (K) onto the Axle (P). Axle (P) Cotter Pin (A) □... -
Page 7: Service Parts
Service Parts 500 LB STEEL DUMP CART Tow Bar Assembly 4676-17 (Reference) Tow Bar Assembly **Not all parts are shown... -
Page 8: Service Parts (Continued)
Service Parts (continued) 500 LB STEEL DUMP CART Ref # Part # Description Ref # Part # Description 3498 Wheel 1645 1/4 in. x 3-1/2 in. Hex Head Bolt 1364TB Cart Body 1042 #14 Hitch Pin Clip 1358-2 Tailgate 1262 1/8 in. -
Page 9: Warranty
Warranty 12 MONTH LIMITED WARRANTY FOR ACCESSORIES WHAT IS COVERED The limited warranty set forth below is given by the manufacture with respect to new merchandise purchased and used in the United States, its possessions and territories and Canada. The manufacturer warrants the product(s) listed against defects in material and workmanship, and will at our option, repair or replace, free of charge, any part found to be defective in materials or workmanship.
