- LC1700BM
USE AND CARE GUIDE

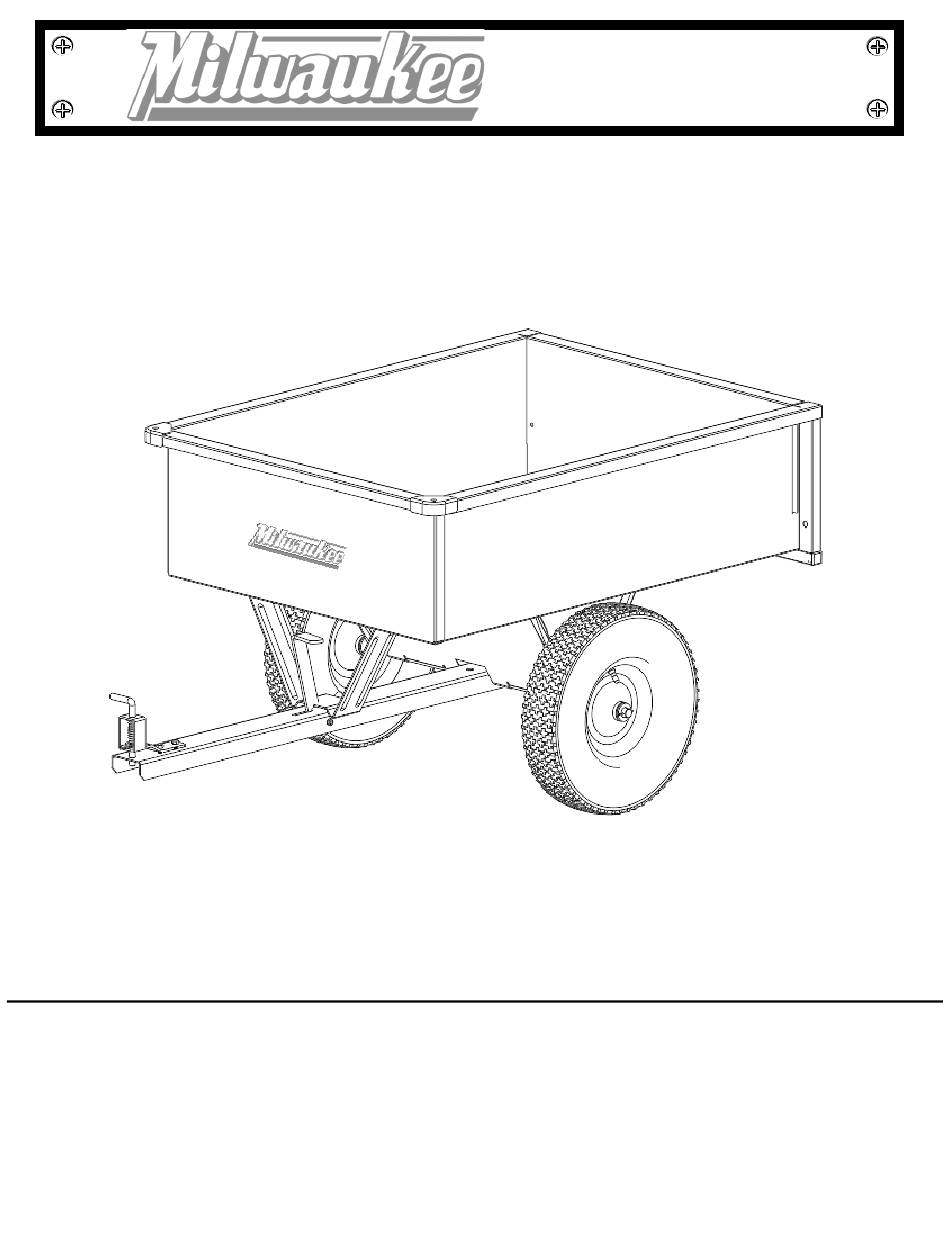

1500 LB STEEL DUMP CART
Questions, problems, missing parts? Before returning to the store,
call Customer Service
8 a.m. – 4 p.m., CST, Monday-Friday
1-800-225-5891
4109-1MW Rev 2/23
THANK YOU!!
We appreciate the trust and confidence you have placed in the purchase of this 1500 lb. Steel Dump Cart. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Milwaukee!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Milwaukee LC1700BM
Summary of Contents for Milwaukee LC1700BM
- Page 1 We appreciate the trust and confidence you have placed in the purchase of this 1500 lb. Steel Dump Cart. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Milwaukee!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Service Parts (continued) ..........8 1500 lb Steel Dump Cart..........8 Safety Information ............2 SAFETY INSTRUCTIONS ......... 2 Troubleshooting ............8 Pre-Assembly ..............3 Maintenance ..............8 Planning Installation ........... 3 Storage ................ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING INSTALLATION Remove the Hardware from the Hardware Sack and verify that all the Hardware shown are included. TOOLS REQUIRED (1) 9/16 in. Wrench (1) Flat Safety Head Hammer (1) Pliers goggles (1) 1/2 in. Screwdriver Wrench HARDWARE INCLUDED NOTE: Hardware not shown to actual size. -
Page 4: Package Contents
Pre-Assembly (Continued) PACKAGE CONTENTS ___J ___K ___M ___L ___N ___O Part Description Quantit 5547A - **Wheel 5517B - Cart Body 5506C - Tow Bar 5630B - Under Carriage 4630TB - Pedestal 5629 - Axle **Tread pattern on tires may vary. -
Page 5: Assembly
Assembly Under Carriage Assembly Pedestal Assembly □ Attach the Under Carriage (M) to the bottom of the □ Attach the Pedestal (N) to the Cart Body (K) Cart Body (K) using 3/8 in. x 3/4 in. Truss Head using 5/16 in. x 3/4 in. Truss Head Bolts (I), 5/16 Bolts (G), 3/8 in. -
Page 6: Wheel Assembly
Assembly Wheel Assembly □ Place a 3/4 in. Flat Washer (B) onto the Axle (O) up against the Under Carriage (M). Wheel (J) □ Next place the Wheel (J) onto the Axle (O). 1/8 in. x 1-1/4 □ Then place a 3/4 in. Flat Washer (B) onto the Axle Axle (O) in. -
Page 7: Service Parts
Service Parts 1500 LB STEEL DUMP CART Tow Bar Assembly Tow Bar Assembly **Not all parts are shown... -
Page 8: Service Parts (Continued)
Service Parts (continued) 1500 LB STEEL DUMP CART Ref # Part # Description Ref # Part # Description 5517B Cart Body 5631B Tailgate 5629 Axle 1262 1/8 in. x 1-1/4 in. Cotter Pin 5502P Tow Bar 1264 3/4 in. Flat Washer 1243VNW Clevis 1273... -
Page 9: Warranty
Warranty 12 MONTH LIMITED WARRANTY FOR ACCESSORIES WHAT IS COVERED The limited warranty set forth below is given by the manufacturer with respect to new merchandise purchased and used in the United States, its possessions and territories and Canada. The manufacturer warrants the product(s) listed against defects in material and workmanship, and will at our option, repair or replace, free of charge, any part found to be defective in materials or workmanship.
