Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Electrical shock
instruction hazard
manual
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs
9
and all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with
all electrical products.
ELECTRICAL SAFETY INFORMATION. It is important that the following information is read and understood:
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9
IMPORTANT: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct
fuse.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately
8
by a qualified electrician.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensure that repairs are carried out by a qualified electrician.
The light source contained in this floodlight shall only be replaced by the manufacturer or sealey authorised service centre or a similar
qualified person.
1.1.1. POWER CORD
1.1.2. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service
agent or a similar qualified person in order to avoid a hazard.
1.2. GENERAL
1.2.1. DO NOT allow children to use the lamp.
1.2.2. DO NOT install the light where it is likely to be knocked over or hit.
Suitable for use indoors and outdoors at -20
9
2. INTRODUCTION

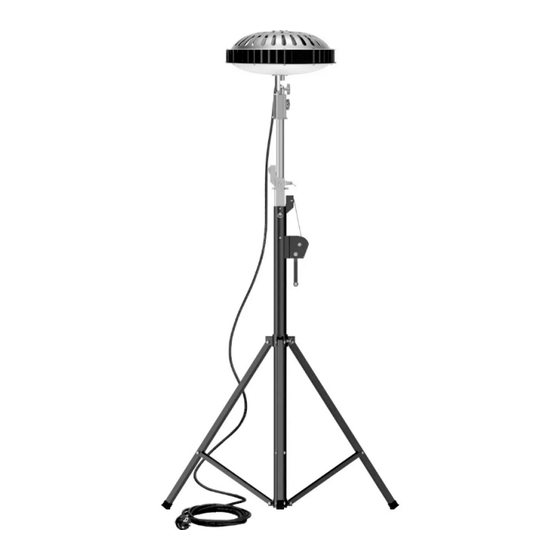

300W LED Floodlight with a huge 40,000lm output creates a large radius of light. Built-in diffuser ensures the light created is glare free
and evenly distributed. Easy height adjustment, from a working height of 1.8m to 4m using the ratcheting hand crank mechanism. 'UFO'
style design creates 360° of light, ensuring the work area remains well lit. The light head can be angled to focus the light where required.
Light head detaches from the tripod and is supplied with a
carry bag to make transportation and storage simple. Easy for
one person to set up, light head secures to the tripod with two
securing screws and hand crank sets the height. Built-in constant
current driver provides the optimum electrical input for the light
which maximises the lifespan of the LEDs.
3. SPECIFICATION
Model No:
Colour Temperature:
IP Rating:
Lumen Output:
Minimum/Maximum Height:
Nett Weight:
Plug Type:
Power Supply Cable Length:
Power:
Supply:
© Jack Sealey Limited
INDUSTRIAL LED TRIPOD FLOODLIGHT, 40,000LM,
110V, 300W, 1.8M-4M WORKING HEIGHT, IP65
MODEL NO:
C to + 40 C.
o o
LED40K
5000K
IP65
40,000lm
1.8m/4m
21.4kg
Yellow - 16A-2P+E
4.8m
300W
110V - 16A
Original Language Version
LED40K
LED40K Issue 2 09/10/24
