Sealey LED093 Instructions

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
electrical
refer to
shock
instructions
Hazard
1. safety
1.1. electrical safety
WarNiNg! it is the user's responsibility to check the following:
‰
check all electrical equipment and appliances to ensure that they are safe before using. inspect power supply leads, plugs and
9
all electrical connections for wear and damage. sealey recommend that an rcd (residual current device) is used with all electrical
products. You may obtain an rcd by contacting your local sealey dealer. if the floodlight is used in the course of business duties, it
must be maintained in a safe condition and routinely PAt (Portable Appliance test) tested.
electrical safety information, it is important that the following information is read and understood.
ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
ensure that the voltage rating on the appliance suits the power supply to be used.
9
do Not pull or carry the appliance by the power cable.
8
do Not pull the plug from the socket by the cable.
8
do Not use worn or damaged cables, plugs or connectors. ensure that any faulty item is repaired or
8
replaced immediately by a qualified electrician.
This product should be fitted with a en 60309 (110volt 16amp) plug.
9
if the cable or plug is damaged during use, switch the electricity supply and remove from use.
9

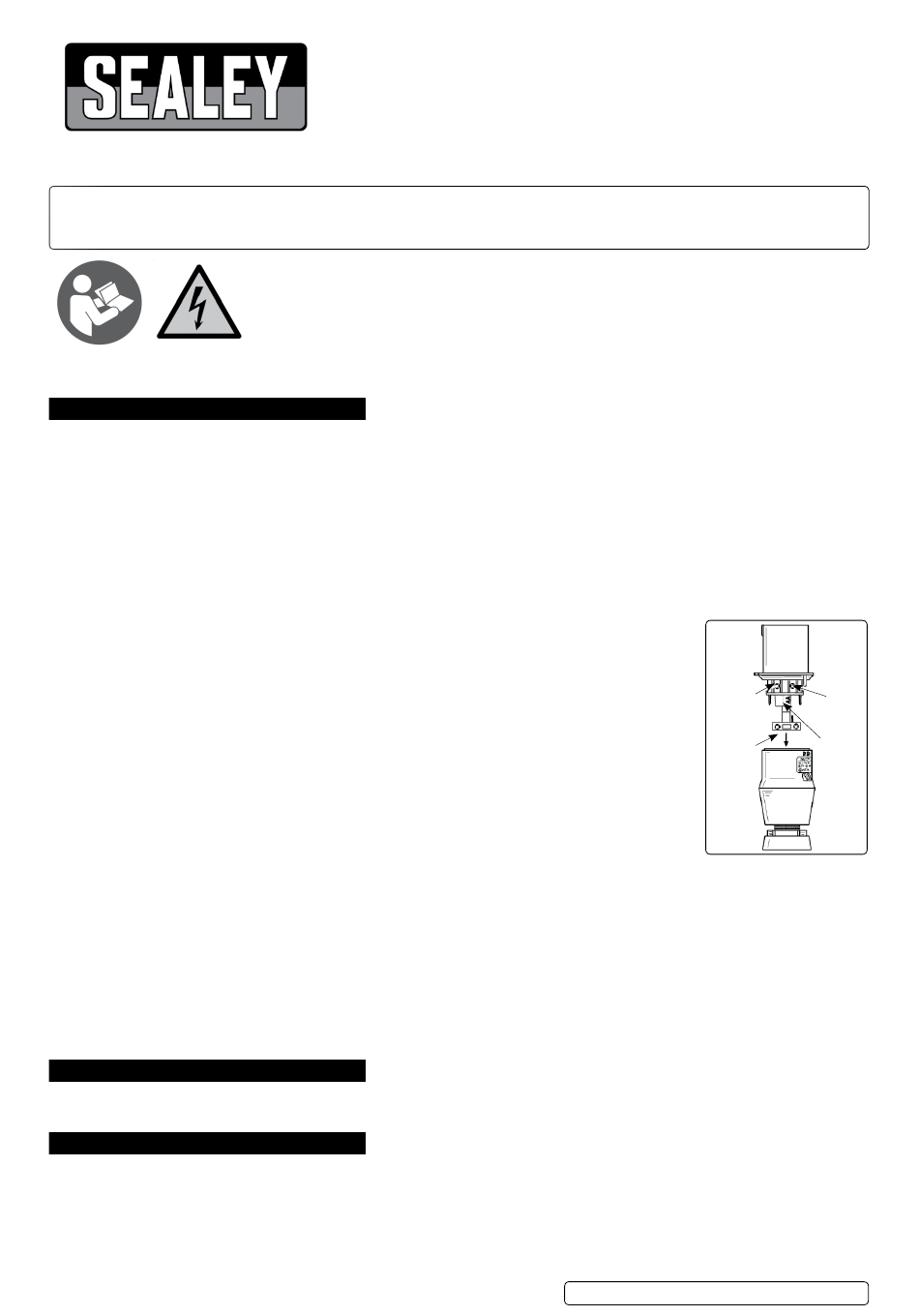

replace a damaged plug with a en 60309 (110volt amp) plug If in doubt contact a qualified
9
electrician.
a) connect the Green/YelloW earth wire to the earth terminal 'e'.
b) connect the BroWn live wire to the live terminal 'l'.
c) connect the Blue neutral wire to the neutral terminal 'n'.
ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
9
Sealey recommend that repairs are carried out by a qualified electrician.
1.2. general safety
WarNiNg! turn off the mains power supply before servicing or performing any maintenance.
‰
ensure the light is installed correctly in accordance with these instructions.
9
if you use an extension lead the cable must be fully unwound from the drum.
9
▲ daNger! do Not direct the light into a person's eyes. All models have a very intense light output which, if
incorrectly used, could cause eye damage.
do Not use the light without the front glass shield.
8
do Not use the light near flammable, combustible or explosive liquids, solids, gases or equipment.
8
Maintain the light in good condition. Repairs must only be undertaken by a qualified electrician (use an authorised service agent).
9
locate the light in an adequate area for its function, keep area clean and tidy and free from unrelated materials.
9
When not in use, switch off the light and disconnect from the power supply. ensure that the unit is cool and dry and
9
then store in a safe, dry, childproof area.
do Not install the light where it is likely to be knocked or hit.
8
do Not install in bathrooms, shower rooms, sauna or such locations.
8
2. iNtroductioN
Portable floodlight in die-cast aluminium housing with stand. SMD LED technology allows ultra bright illumination whilst still keeping costs
lower than traditional halogen tubes. even spread of light across a 110°angle. supplied with power cable and is suitable for outdoor use.
3. specificatioN
model no ...................led093......................led095......................led097
Supply...................110V-50HZ.................110V-50Hz..................110V-50Hz
Power..............................20W...........................50W............................50W
lumen output.............1600lm.......................3800lm.......................5600lm
led Quantity......................24...............................54...............................80
colour Temperature ........6000K.................................6000K................................6000K
iP rating.........................iP54............................iP54............................iP54
© Jack sealey limited
instructions for
portable floodlight 20W, 50W, 70W smd
led 110v
led093, led095, led097
model no:
Original Language Version
Brown
(l)
cable
restraint
led093,led095,led097 | issue 1 13/06/16
Blue(N)
Yellow/
Green
(e)
