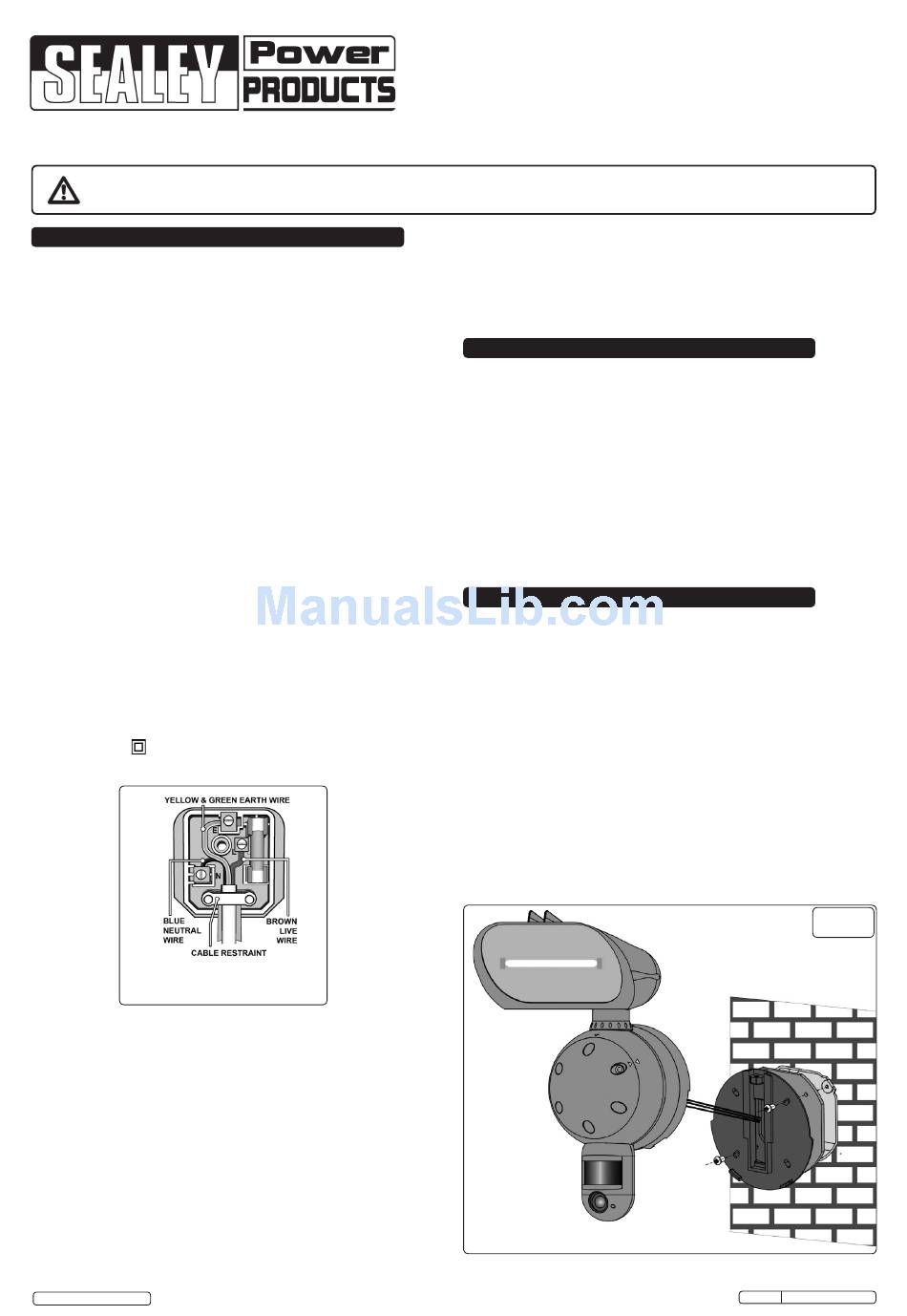

Sealey SL300 Instructions

Thank you for purchasing a Sealey product. Manufactured to a
high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE, OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY.
1. SAFETY INSTRUCTIONS
1.1. ELECTRICAL.
WARNING! It is the user's responsibility to read, understand and

comply with the following:
You must check all electrical equipment and appliances to ensure they
are safe before using. You must inspect power supply leads, plugs and
all electrical connections for wear and damage. You must ensure the risk
of electric shock is minimised by the installation of appropriate safety
devices. An RCCB (Residual Current Circuit Breaker) should be
incorporated in the main distribution board. You must also read and
understand the following instructions concerning electrical safety:
1.1.1. Ensure the unit is connected to an appropriate electrical on/off switch.
1.1.2. Ensure the insulation on all cables and the product itself is safe before
connecting to the mains power supply.
1.1.3. Ensure that cables are always protected against short circuit and
overload.
1.1.4. Regularly inspect power supply, leads, plugs and all electrical
connections for wear and damage, especially power connections, to
ensure that none are loose.
1.1.5. Important: Ensure the voltage marked on the product is the same as
the electrical power supply to be used.
1.1.6. DO NOT pull power cable once installed.
1.1.7. DO NOT pull power plugs from sockets by the power cable.
1.1.8. DO NOT use worn or damaged leads, plugs or connections.
Immediately replace or have repaired by a qualified electrician. A UK 3
pin plug with ASTA/BS approval is fitted. In case of damage, cut off and
fit a new plug according to the following instructions (discard old plug
safely). (UK only - see diagram below).
a) Connect the GREEN/YELLOW earth wire to the earth terminal 'E'.
b) Connect the BROWN live wire to live terminal 'L'.
c) Connect the BLUE neutral wire to the neutral terminal 'N'.
d) After wiring, check there are no bare wires, that all wires have been
correctly connected and that the wire restraint is tight.
Double insulated products are fitted with live (BROWN) and neutral
(BLUE) wires only. Double insulated products are always marked with
this symbol . To re-wire, connect the brown and blue wires as
indicated above. DO NOT connect the brown or blue to the earth
terminal.
RECOMMENDED FUSE RATING:
1.2. GENERAL SAFETY.
WARNING! Turn off the mains power supply before servicing or

performing any maintenance.
Maintain the unit in good condition (Repairs must only be undertaken

by a qualified electrician).
Only use genuine replacement halogen tubes (Sealey Part No.

ML300/01).
Ensure the unit is installed correctly in accordance with these

instructions.
Only install the unit on a vertical surface. DO NOT fix the unit on any

horizontal surface i.e. ceiling, or overhang.
Ideally the Installation should be away from flammable or combustible

materials such as wood, cloth, paper etc.
DANGER! DO NOT direct the light into a persons eyes. This unit

has a very intensive light output, which if incorrectly used could
cause eye damage.
DO NOT install the unit where it is likely to be knocked or hit.

DO NOT install in bathrooms, shower rooms, sauna or such locations.

DO NOT install near an exhaust outlet. i.e. Boiler flue, dryer outlet, etc.

© Jack Sealey Limited
3AMP
INSTRUCTIONS FOR:
HALOGEN AUTO SECURITY LIGHT WITH
CAMERA 300W/230V
SL300
MODEL No:
DO NOT touch the light when operating, allow to cool before touching,

light operates at high temperature.
DO NOT use the light without the front glass shield. Avoid touching the

glass shield as handling may reduce its serviceable life and cause the
glass to crack.
DO NOT use the unit near flammable, combustible or explosive

liquids, solids, gases or equipment.
2. INTRODUCTION
High powered floodlight with built in security camera, fitted with a 300W
halogen tube. Features a 5 megapixel camera with PIR sensor for a
crystal clear image. Unit can be adjusted to capture 3 or 9 burst pictures
or video footage. Automatically starts capturing footage as soon as the
PIR sensor is activated and is date and time stamped for easy
distinction. All footage is stored via an on-board SD card (not supplied),
which can be removed for easy viewing on laptop/computer. Features
timing and capture setting controls allowing the user to easily adjust the
delay between the picture bursts and adjusting the length of video
capture. All settings are shown on LCD display. When SD card memory
is full, the SL300 automatically cycles through and replaces old footage
ensuring that you always have the most up to date recordings available.
Unit is fitted with protective front cover designed to hide and protect
controls and SD card. IP44 weatherproof design.
3. INSTALLATION
WARNING! DO NOT connect unit to the mains power supply before

installation. When properly installed, the SL300 can only then be
connected to the mains.
3.1. FITTING.
3.1.1. Give careful consideration to the position of the unit to ensure you
obtain maximum benefit from the lighting range, and that an appropriate
electrical power source can be provided.
3.1.2. Mount the SL300 to a solid vertical surface more than ½" or 12.7mm
thick in a secure location, overseeing the area to be monitored. Screws
are provided with SL300 for installation.
3.1.3. Mount the SL300 at least 2 metres above ground level with the camera
pointing at a downward angle of 15°. Avoid mounting the SL300 facing
to the East or to the West as the rising and setting of the sun may
produce false triggers and over exposed images.
NOTE! It is recommended that EVA foam is installed between the wall
mounting bracket (fig.2-10) and the wall to protect the unit.
3.1.4. Ensure the area in front of the SL300 is clear of any branches and other
obstuctions that may obscure the PIR sensor.
Original Language Version
fig.1
SL300 Issue: 2 - 18/10/12
