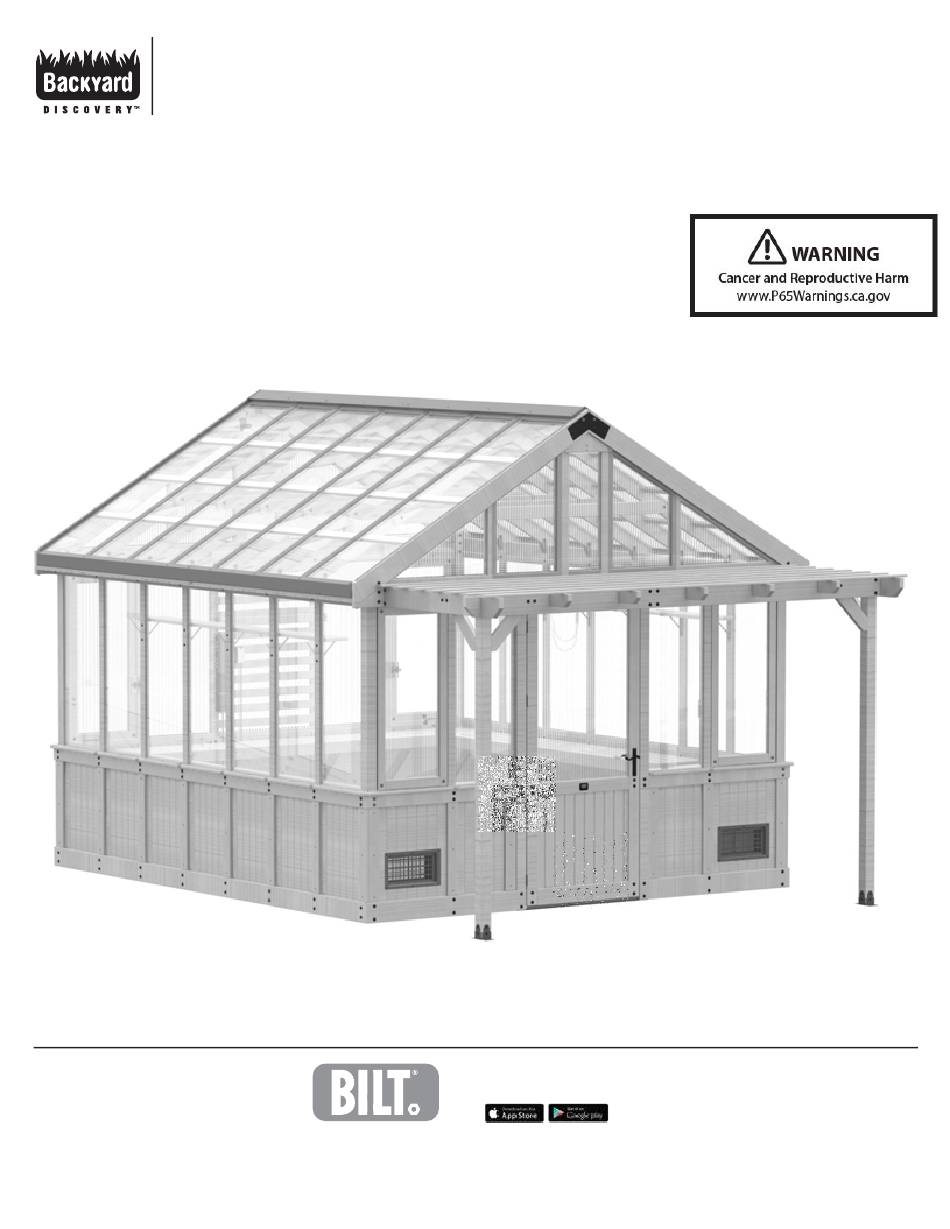

Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 BELLEROSE XL GREENHOUSE MODEL # : 2404113 For Horticulture Use Only Please visit www.backyarddiscovery.com...
Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings or concrete pad to attach your structure It is critically important that you start with square and level footings or concrete pad to attach your structure Check you local building and city codes for permit requirements or restrictions, including any Home Owner's Association (HOA) restrictions.
Page 3 OWNER'S MANUAL - ANCHORING LAYOUT 12'-5 13/16" 3805mm 2'- 5/8" 2'-9 7/8" 2'- 5/8" 2'-9 3/8" 625mm 860mm 625mm 847mm 10'-10 11/16" 3320mm 9 9/16" 9 9/16" 242mm 242mm 6" 6" 152mm 152mm 2'-9 3/8" 847mm 1'-1 3/16" 334mm 1'-9 9/16" 3'-4"...
Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE) AA01 DOOR STOP - W4L 19558 (x1) 1 7/8"x1 15/16"x37" (47x50x940) AJ01 WINDOW SILL - W4L20335 AJ02 WINDOW SILL - W4L20321 (x2) 1 7/16"x4"x28 3/8" (36x102x721) (x2) 1 7/16"x4"x28 3/8" (36x102x721) POST- W4L 19791 (x1) 3"x3"x88 3/4"...
Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE)
Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE)
Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE)
Page 8 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE)
Page 9 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE)
Page 10 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE) •• • • •O• �: •• •• TB01 TABLE ASSEMBLY - W2A04387 DA01 DOOR ASSEMBL y - W2A04009 (x1) 2 1/16" x 16 1/16" x 32 3/4 " (52x408x832) . .. (x1) 1 7/8 "...
Page 11 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE) WA02 WINDOW ASSEMBLY -W2A04376 (x2) 1 7/16"x21 3/16"x35 1/8" (36x537x892) WA03 WINDOW ASSEMBLY - W2A04375 (x2) 1 7/16"x22 3/16"x33 15/16" (36x563x861) WA06 WINDOW ASSEMBLY - W2A04205 (x2) 1 7/8"x21 13/16"x47 3/16" (48x554x1198) WA04 WINDOW ASSEMBLY - W2A04377 (x2)
Page 12 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (NOT TO SCALE) WP04 WALL PANEL - W2A04161 (x1) 1 1/16"x31 3/8"x31 9/16" (27x798x802) WP05 WALL PANEL - W2A04162 (x4) 1 1 /16"x22 1 /8"x31 9/16" (27x563x802) WP06 WALL PANEL - W2A04383 (x1) 1 1/16"x18 3/4"x31 9/16"...
Page 13 OWNERS MANUAL - PARTS IDENTIFICATION Accessory Components (NOT TO SCALE) A4M01591 HOOK A4M02095 L-BRACKET (x8) (x2) A4M02835 L-BRACKET (x16) A4M00555 L BRACKET BLK (x4) A4M02099 T-CLEAT A4M02533 SUPPORT HINGE A4M02383 EXHAUST FAN (x8) (x4) (x1) A4M02158 BYD ID TAG PATIO A4M02384 HOSE FAUCET A4M02085...
Page 14 OWNERS MANUAL - PARTS IDENTIFICATION Accessory Components (NOT TO SCALE) A4M02868 SOFFIT SPLICE (x4) A4M03127 BRACKET (x4) A4M03471 EDGE TRIM (x4) A4M03467 TRIM (x4) A4M03473 HOSE HANGER (x1) A4M03493 SOFFIT SPLICE COVER (x2) A4M03463 DRIP EDGE SPLICE (x2) A4M03494 RIDGE CAP A4M03469 SOFFIT (x2)
Page 15 OWNERS MANUAL - PARTS IDENTIFICATION Accessory Components (NOT TO SCALE)
Page 16 OWNERS MANUAL - PARTS IDENTIFICATION Accessory Components (NOT TO SCALE)
Page 17 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100974 | BOLT WH BLK (x12) | 5/16x5-3/4 H100469 | NUT BARREL WH BLK (x8) | 5/16x5/8 H100964 | BOLT WH BLK | 5/16x5-1/2 (x4) H100459 | BOLT WH BLK (x14) | 5/16x1-1/4 H100480 | BOLT WH BLK H100407...
Page 18 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100411 | SCREW PFH BLK H100202 | SCREW PWH BLK (x3) | 8x5/8 | 8x5/8 (x9) H100395 | SCREW PFH BLK H100398 | T-NUT BLK (x44) | 8x3/4 H100392 | SCREW PWH BLK (x2) | 1/4 (x41)
Page 19 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H101106 | SOCKET DRIVER (x1) H101114 | RIGHT HAND | DRILL ADAPTER (x1) H100147 | TORX BIT H101100 | MAGNETIC DRIVER (x1) | T-30 (x1) H100114 | TORX WRENCH (x1) | T-30 H100764 | SCREW SETTER (x1) H101261...
Page 20 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: − Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). −...
Page 22 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
Page 23 POLYCARBONATE SHEETING INFORMATION - IMPORTANT! The Polycarbonate Sheeting has UV protection on ONE (1) SIDE. CRITICAL to install with the UV protection facing the OUTSIDE • Wear safety gloves to protect against any sharp edges during handling or install. • Do NOT use knife or sharp object to remove protective film as it may result in damage to polycarbonate sheeting •...
