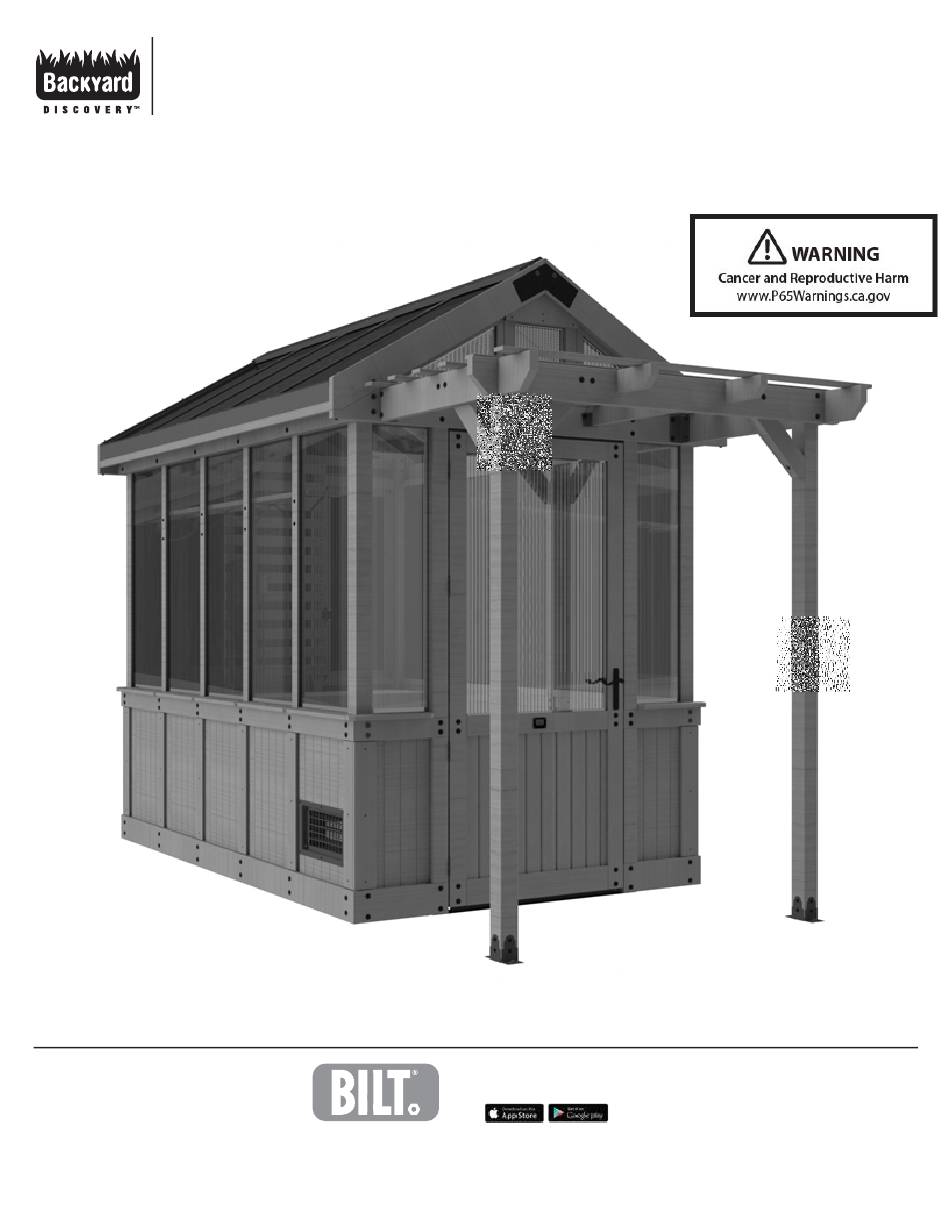

Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 9x6 BELLEROSE GREENHOUSE MODEL # : 2404021 For Horticulture Use Only Please visit www.backyarddiscovery.com...
Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings or concrete pad to attach your structure Check you local building and city codes for permit requirements or restrictions, including any Home Owner's Association (HOA) restrictions. Select a location with lots of sun, good drainage, and the ability to create a level, firm surface for your greenhouse.
Page 3 OWNER'S MANUAL - ANCHORING LAYOUT 7'- 3/4" 2153mm 2'-7 3/16" 1'-10 3/8" 792mm 569mm 6" 6" 152mm 152mm 5'-5 11/16" 9 9/16" 1668mm 9 9/16" 242mm 242mm 1'-10 3/8" 568mm 3'-4" 1016mm 1'- 13/16" 325mm 4'-11 1/8" 1502mm...
Page 14 H100974 | BOLT WH BLK (x12) | 5/16x5-3/4 H100379 | T-NUT BLK (x141) | 5/16 H100459 | BOLT WH BLK H100513 | BOLT WH BLK (x8) | 5/16x1-1/4 (x16) | 5/16x4-1/4 H100407 | BOLT WH BLK H100415 | BOLT WH BLK (x8) | 5/16x1-1/2 (x24)
Page 15 H100380 | SCREW PFH BLK H100200 | SCREW PFH BLK H100201 | SCREW PFH BLK (x52) | 8x1-1/8 | 8x1-1/2 | 8x2-1/2 (x108) (x31) H100387 | SCREW PFH BLK H100385 | SCREW PFH BLK H100382 | SCREW PFH BLK (x36) | 8x1-1/4 | 8x1 (x87)
Page 16 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: − Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). −...
Page 18 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
Page 19 POLYCARBONATE SHEETING INFORMATION - IMPORTANT! The Polycarbonate Sheeting has UV protection on ONE (1) SIDE. CRITICAL to install with the UV protection facing the OUTSIDE • Wear safety gloves to protect against any sharp edges during handling or install. • Do NOT use knife or sharp object to remove protective film as it may result in damage to polycarbonate sheeting •...
