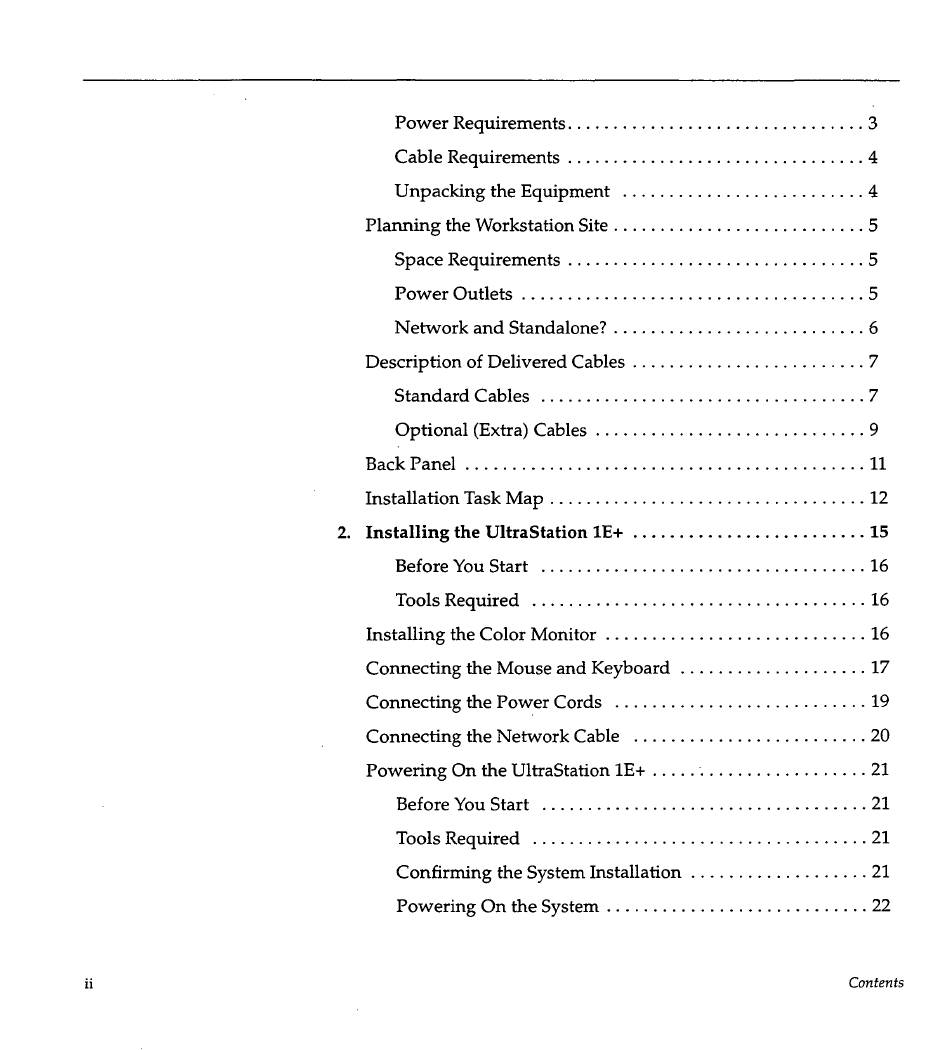

Tritec UltraStation 1E+ Installation And User Manual page 4

Power Requirements ................................ 3
Cable Requirements ................................ 4
Unpacking the Equipment .......................... 4
Planning the Workstation Site ........................... 5
Space Requirements ................................ 5
Power Outlets ..................................... 5
Network and Standalone? ........................... 6
Description of Delivered Cables ......................... 7
Standard Cables ................................... 7
Optional (Extra) Cables ............................. 9
Back Panel ........................................... 11
Installation Task Map .................................. 12
2. Installing the UltraStation lE+ ......................... 15
Before You Start ................................... 16
Tools Required .................................... 16
Installing the Color Monitor ............................ 16
Connecting the Mouse and Keyboard .................... 17
Connecting the Power Cords ........................... 19
Connecting the Network Cable ......................... 20
Powering On the UltraStation lE+ ....................... 21
Before You Start ................................... 21
Tools Required .................................... 21
Confirming the System Installation ................... 21
Powering On the System ............................ 22
