Connecting the Network Cable
20
If the system is being connected to a network, you will need an Ethernet
transceiver cable. This cable is not supplied with your system, but can be
obtained from the person in charge of the network.
The rear panel has two Ethernet ports, the MII and twisted-pair Ethernet
(TPE) which are shown in Figure 2-7.
Only one of the two interfaces can be used at the same time. If only one
interface is connected, software determines automatically which one is to be
used.

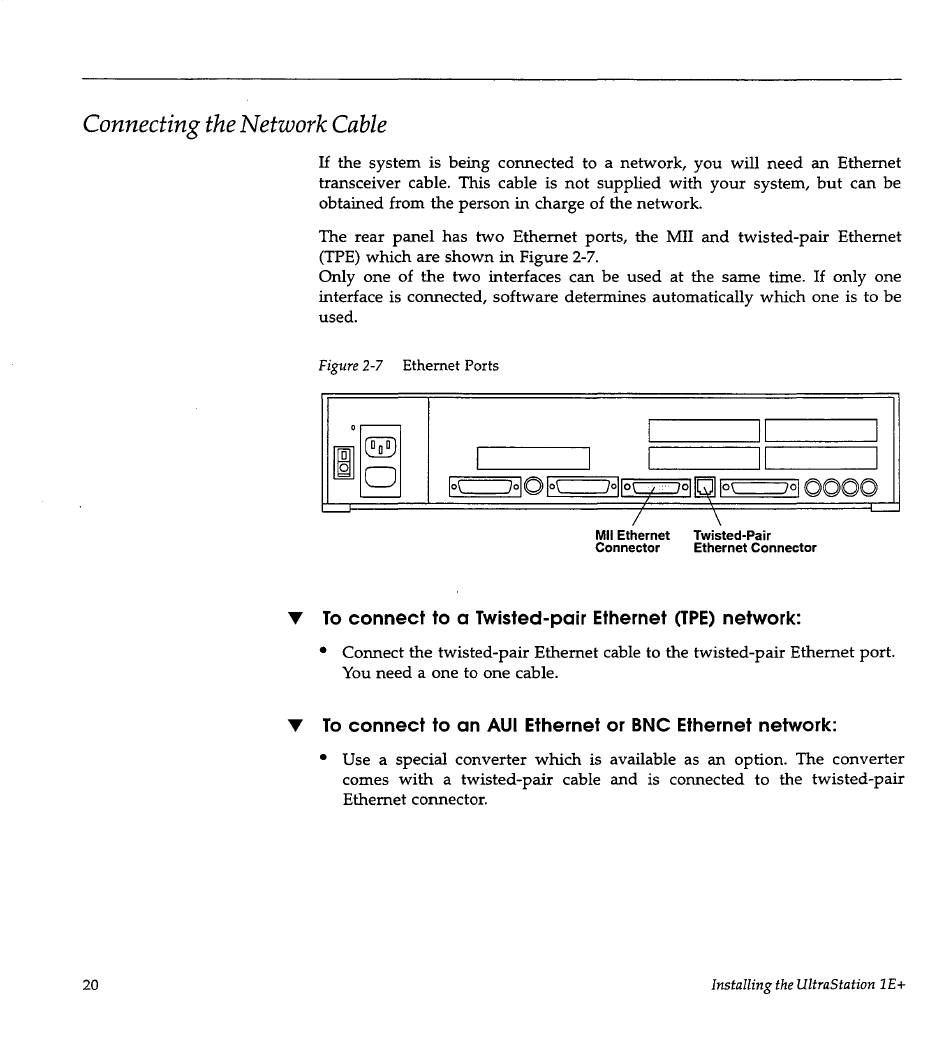

Figure 2-7 Ethernet Ports
I II
I 11
::=
========::::::::::
1°c=-=HOl
0
c==J
0
ll
0
\
I
10
11Q11°\
JOI
0000
I \
MIi Ethernet Twisted-Pair
Connector Ethernet Connector
T
To connect to a Twisted-pair Ethernet (TPE) network:
• Connect the twisted-pair Ethernet cable to the twisted-pair Ethernet port.
You need a one to one cable.
T
To connect to an AUi Ethernet or BNC Ethernet network:
• Use a special converter which is available as an option. The converter
comes with a twisted-pair cable and is connected to the twisted-pair
Ethernet connector.
Installing the UltraStation lE+
