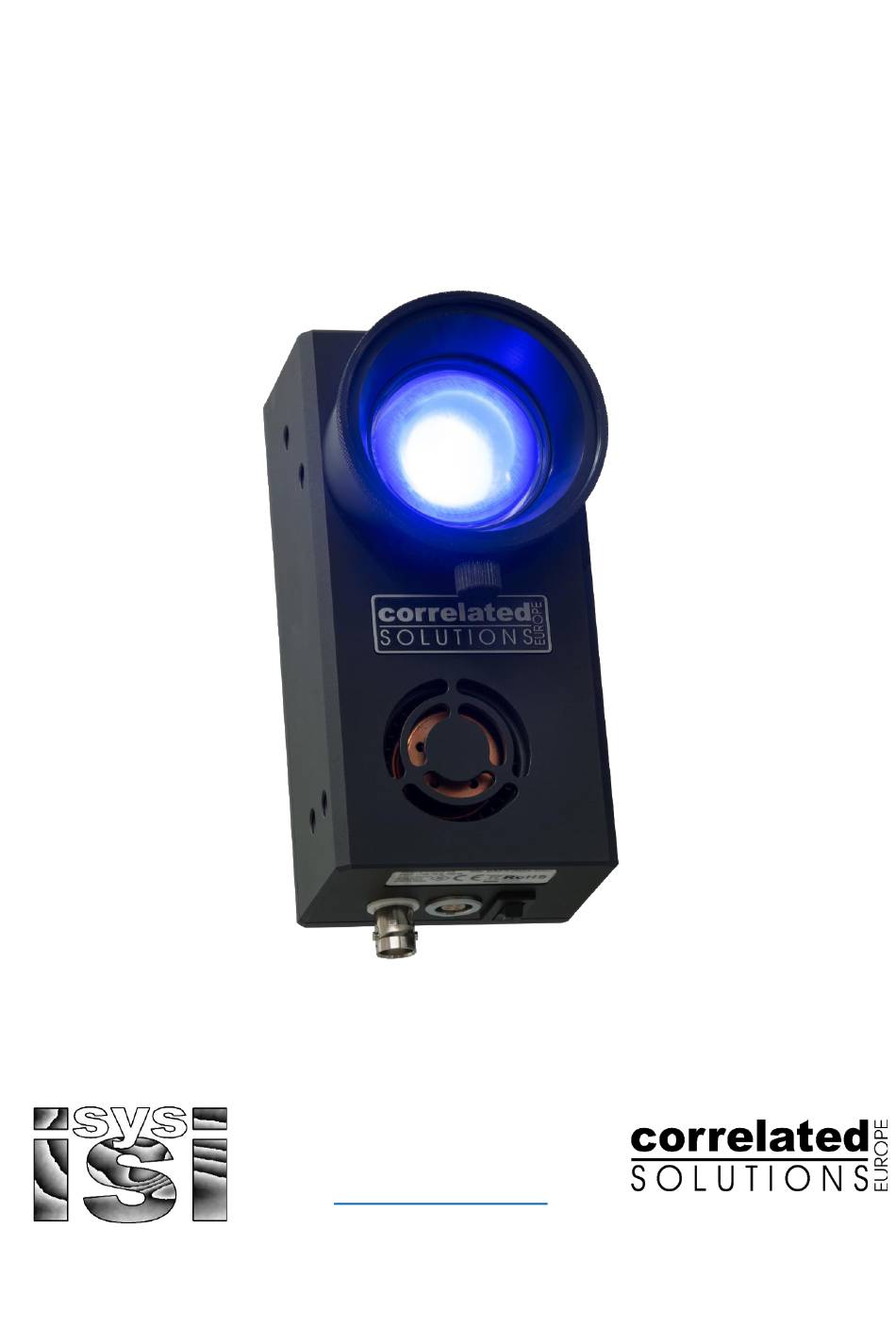

- Page 1 User Manual and Service Instructions for Blue-X-Focus Version: 3 Support: Phone: +49-561-739798-0 Email: info@isi-sys.com www.isi-sys.com ©2003-2023 by isi-sys GmbH, Wasserweg 8, 34131 Kassel, Germany Page 1 of 18 Blue-X-Focus V3 © isi-sys GmbH 2023 Rev.: 18/07/2024...
-
Page 2: Table Of Contents
Contents SAFETY AND OPERATION INSTRUCTIONS FOR BLUE-X-FOCUS ..........3 1.1..........................4 NTENDED 1.2. -X-F ................5 ENERAL SAFETY INSTRUCTIONS FOR OCUS 1.3........................ 5 RANSPORT AND TORAGE 1.4. -X-F ...................... 5 NSTALLATION OF OCUS 1.5. -X-F ......................6 PERATION OF OCUS 1.6. -
Page 3: Safety And Operation Instructions For Blue-X-Focus
1. Safety and Operation Instructions for Blue-X-Focus • Before the system’s initial operation, read the operating instructions carefully and pay particular attention to the safety instructions. These contain important information for your protection. • Save these documents together with the technical brochures and accessories for later reference. -
Page 4: Intended Use
The Blue-X-Focus is used exclusively for illumination purposes. The scope of delivery includes the Blue-X-Focus light source and a power supply. The information in the operating instructions, in particular the safety instructions and permitted operating ranges, must be observed, and obey at every phase of the product’s life. -
Page 5: General Safety Instructions For Blue-X-Focus
-15 °C to + 60°C, 5% to 95% humidity (non-condensing). Attach the lens cap to the Blue-X-Focus! The lens cap is used to protect the lens during transport and for long-term installation to protect the lens from dust and dirt. -
Page 6: Operation Of Blue-X-Focus
Operation of Blue-X-Focus WARNING! Warning against melting of the lens cap and destruction of the Blue-X-Focus due to heat build-up. Always remove the lens cap before operating the Blue-X-Focus! The lens cap is primarily used to protect the lens during transport and for long-term installation to protect the lens from dust and dirt. -
Page 7: Maintenance
Always disconnect the power supply from the power socket if it is not in use or • in operation. In the case of overthrowing, falling down and/or jarring heavily a Blue-X-Focus • has to be checked by isi-sys for damages 1.6. -

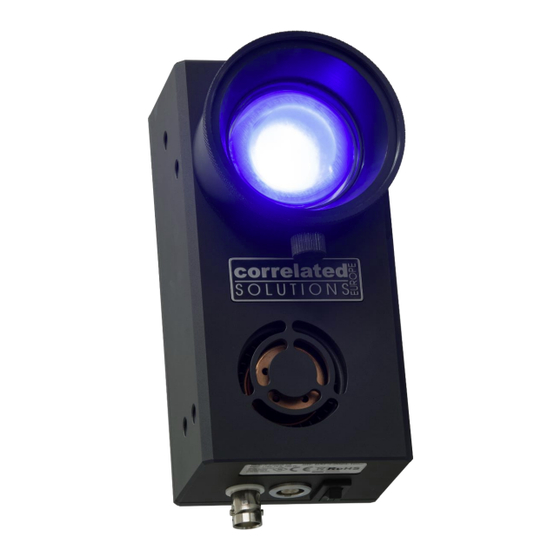

Page 8: Blue-X-Focus
Technical description The Blue-X-Focus can be synchronized with a DAQ and can be triggered up to 100 kHz in pulse mode. The power of the LED is adjustable via a rotary knob on the back of the device. Besides it is equipped with a special active fan cooling and an integrated temperature safety switch-off. - Page 9 Warning against melting of the lens cap and destruction of the Blue-X-Focus due to heat build-up. Always remove the lens cap before operating the Blue-X-Focus! The lens cap is primarily used to protect the lens during transport and for long-term installation to protect the lens from dust and dirt.
-
Page 10: Exemplary Setup Scheme
The Blue-X-Focus can be operated standalone in continuous wave mode when connected to the power supply through the power supply cable. To operate the Blue-X-Focus in pulse mode, the Blue- X-Focus must be connected to a trigger device (TTL Signal). The higher power of 220W can only be reached through pulse mode (depending on the duty cycle). - Page 11 The DAQ is connected via USB with a Laptop or Desktop PC and is fully integrated in VIC Snap Data acquisition software. The BNC Trigger Input of the Blue-X-Focus is connected to Trigger I/O of DAQ with switch to “internal trigger”, optional the PFI13/ TTL can be used. In the “Timer Control”...
-
Page 12: Focusing Mechanism And Illumination Area
2.4. Focusing mechanism and Illumination area The Blue-X-Focus can be equipped with two different lens tubes. For larger field of view (FOV) we recommend using the focusing tube LFOV with the small knurled ring (left image). Depending on the flange focal distance the beam expands from 10° to 60°. For small areas the SFOV lens tube with the bigger knurled ring (right image) is recommended in combination with the diffus er, it expands from 7.5°... - Page 13 Optimal illumination setting for a specific field of view by choosing suitable lenses and standoff distance For optimal homogeneous illumination on the area of the selected field of view, the settings in the diagram above can be used. Page 13 of 18 Blue-X-Focus V3 © isi-sys GmbH 2023 Rev.: 18/07/2024...
-
Page 14: Diffuser
To avoid burn out of the polarization filter the filter can be used to certain operation levels. The maximum allowed exposures can be seen in the chart below. For continuous wave mode the maximum allowed intensity is 35 % to avoid burn out. Page 14 of 18 Blue-X-Focus V3 © isi-sys GmbH 2023 Rev.: 18/07/2024... -
Page 15: Operation Limits For Exposure Time And Frequency
Application examples for combination with DIC system (NO POLARIZATION FILTER ATTACHED!): → Scenario 1: Frame rate: 75 fps max. camera exposure time: 13.33 ms → max. Blue-X-Focus exposure time: 3.95 ms → Scenario 2: Frame rate: 35 fps max. camera exposure time: 28.5 ms →... - Page 16 To avoid burn out of the polarization filter, the filter can be used to certain operation levels. The maximum allowed exposure time for Blue-X-Focus can be seen in the chart below. Parameters for safe operation with a polarization filter (100 % intensity) – T = 20°C...
-
Page 17: Device Safety Measures
To reduce wear, operation in pulse mode is recommended. A special high temperature polarization filter from isi-sys is recommended. 3. Technical data Page 17 of 18 Blue-X-Focus V3 © isi-sys GmbH 2023 Rev.: 18/07/2024... -
Page 18: Technical Specifications
If requested, e.g. because of technical improvements, these typ. data will be changed without any further notice. Page 18 of 18 Blue-X-Focus V3 © isi-sys GmbH 2023 Rev.: 18/07/2024... -
Page 19: Conformance, Malfunction And Warranty
The manufacturer isi-sys GmbH confirms, that the products, described in this document and delivered with this document, are in compliance with the general requirements and other relevant regulations of the relevant EU/EC-directives. Page 19 of 18 Blue-X-Focus V3 © isi-sys GmbH 2023 Rev.: 18/07/2024...
