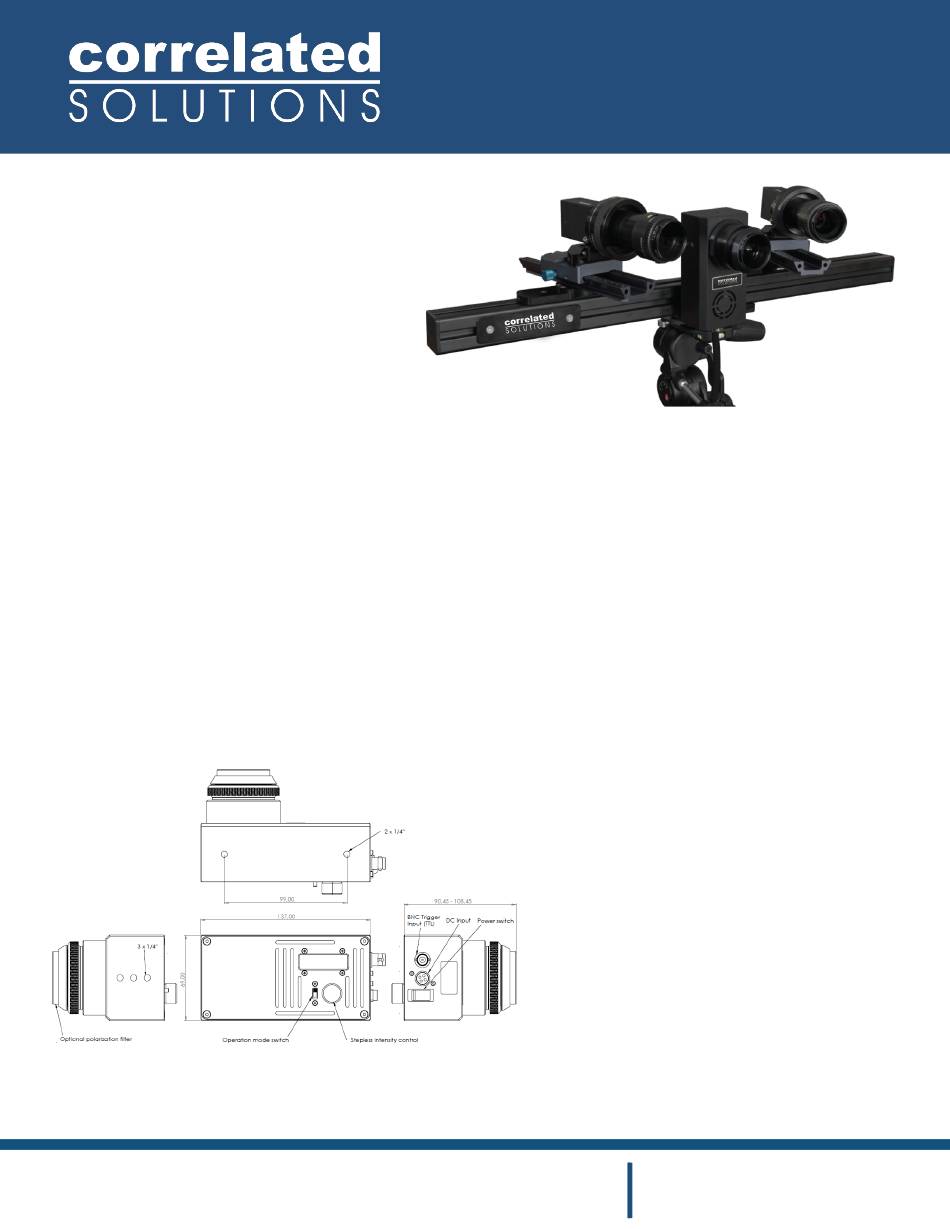

BLUE-x-FOCUS
User Manual
& Service Instructions
Technical Description
The all-new Blue-x-Focus is designed for AC use from 110 - 230 V and 50/60 Hz. It is equipped with
one 100 W high-power single cell LED and generates a flicker-free light which is ideal for digital image
correlation applications. The device can be synchronized with a DAQ and can trigger up to 40kHz in
Pulse mode. The power of the LED is fully adjustable via a dial on the back of the device. For safety,
the light is equipped with a special active cooling fan and an integrated temperature safety switch-off.
The Blue-x-Focus can be mounted in different directions and allows the light been to be focused in a
variety of configurations (spot light, flood light, etc).
Technical Data
► Type: Blue-x-Focus
► Power: 100 W @ CW | 180 W @ pulse
► Ambient Temperature (Ta): -15° to +40° C
Contact our Sales Team for more details on the Blue-x-Focus and other
industry-leading systems from Correlated Solutions.
Measure with
Confidence
► Voltage: 110 - 230 V 1,0A 50/60 Hz
► Weight: 860 g
► Surface Temperature: 60° C
Controls
► Display: On the back of the device,
there is a seven-segment display
which shows the current power
in percent and a dial to manually
adjust the power of the device.
► Continous Wave/Pulse Switch: On
the left side of the dial there is a
switch to change the operation
mode from continuous wave to
pulse.
► ON/OFF Switch: Next to the DC
input and trigger input is a switch
to turn the light ON & OFF.
sales@correlatedsolutions.com
1.803.926.7272
Advertisement
Table of Contents
Related Manuals for Correlated Solutions BLUE-x-FOCUS
Summary of Contents for Correlated Solutions BLUE-x-FOCUS
- Page 1 Technical Description The all-new Blue-x-Focus is designed for AC use from 110 - 230 V and 50/60 Hz. It is equipped with one 100 W high-power single cell LED and generates a flicker-free light which is ideal for digital image correlation applications.
- Page 2 The Blue-x-Focus can be operated standalone in continuous wave mode when connected to the power supply through the lamp connector cable. To operate the Blue-x-Focus in pulse mode, Lamp has to be connected to a trigger device (TTL Signal). The setup scheme shown below illustrates possible setup schemes.
-
Page 3: Recommended Usage
The lamp is being operated in CW mode with a power level higher than 82.5%. Consider switching to Pulse mode or lower the power level. 5 sec. sales@correlatedsolutions.com Contact our Sales Team for more details on the Blue-x-Focus and other industry-leading systems from Correlated Solutions. 1.803.926.7272... - Page 4 ► Install the system so that the on/off-switch is easily accessible at all times. ► The power plug is the cut-off point to the main power supply. sales@correlatedsolutions.com Contact our Sales Team for more details on the Blue-x-Focus and other industry-leading systems from Correlated Solutions. 1.803.926.7272...
- Page 5 ► Always disconnect the power supply from the power socket if it is not in use or in operation. ► In the case of overthrowing, falling down and/or jaring heavily a Blue-x-Focus has to be checked by support for damage.
-
Page 6: Additional Safety Instructions
Focus out of the reach of children. Explanation of Symbols Maintenance For a secure operation of the Blue-x-Focus, it has to be maintained. Therefore: before using it has to be checked visually. Limited Liability For all injuiries and/or damages to people and/or objects, which are caused by using isi-sys products in a way that they are not intended for the user is liable - not the manufacturer.
