Pepperl+Fuchs RFID20 Series Manual

Pepperl+Fuchs RFID20 Series Manual

Rfid reader
Hide thumbs

Advertisement

Quick Links

Download this manual
RFID20-*
RFID Reader
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RFID20 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Pepperl+Fuchs RFID20 Series

Summary of Contents for Pepperl+Fuchs RFID20 Series

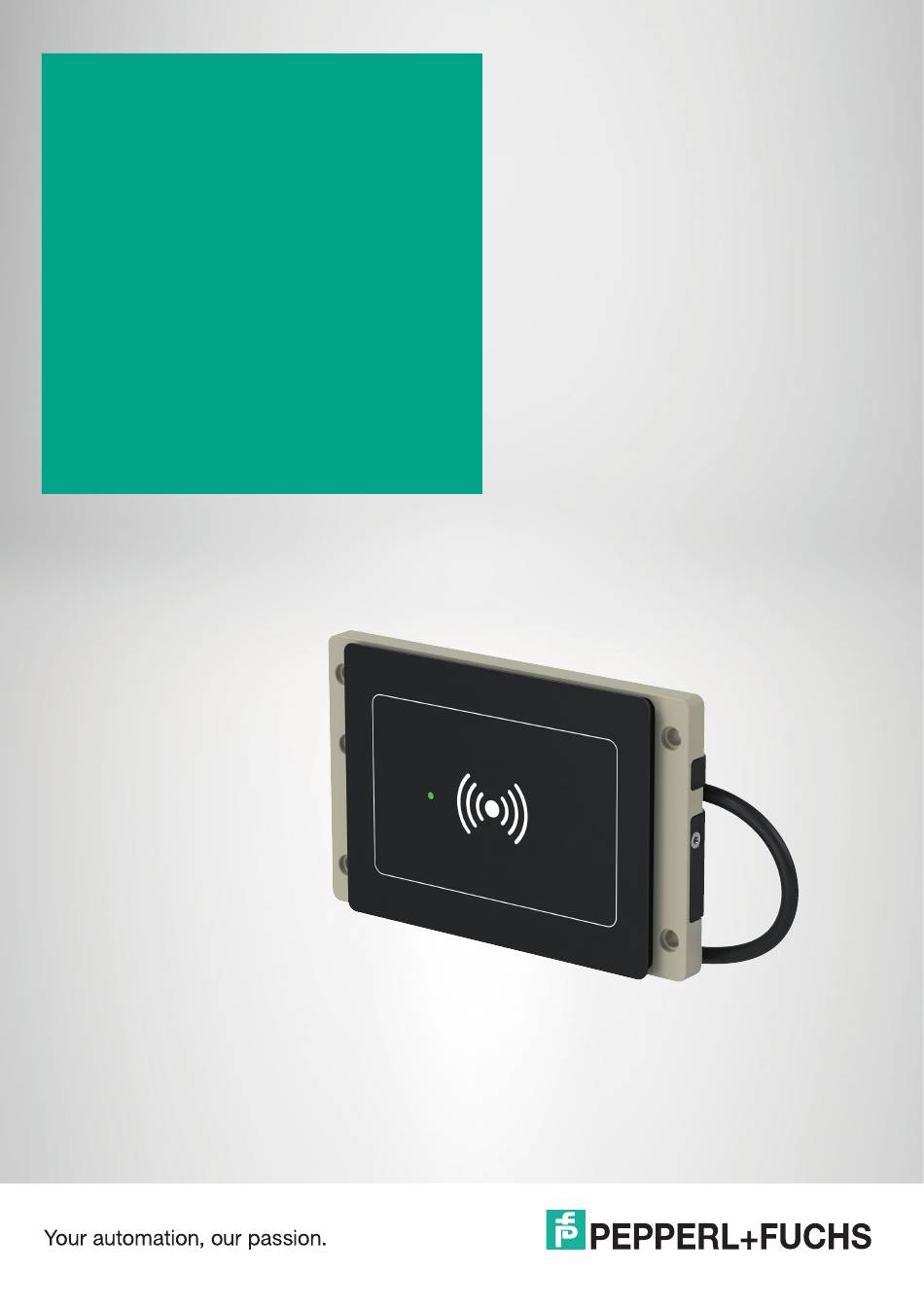

  • Page 1 RFID20-* RFID Reader Manual...
  • Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...

  • Page 3: Table Of Contents

    RFID20-* Contents History of the Manual ....................4 Introduction........................ 5 Content of this Document ................5 Manufacturer ....................5 Target Group, Personnel ................5 Symbols Used ....................6 Product Description ....................7 Overview......................7 Reference Documents ................. 10 Supported Transponder Media..............11 Recommended Mode for Integration into Systems........

  • Page 4: History Of The Manual

    RFID20-* History of the Manual History of the Manual The following editions of the manual have been released: Version Comments 11/2024 First edition...

  • Page 5: Introduction

    • Certificates • Control drawings • Functional safety manual • Additional documents Manufacturer Pepperl+Fuchs Group Lilienthalstraße 200, 68307 Mannheim, Germany Internet: www.pepperl-fuchs.com Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismount- ing lies with the plant operator.

  • Page 6: Symbols Used

    RFID20-* Introduction Only appropriately trained and qualified personnel may carry out mounting, installation, com- missioning, operation, maintenance, and dismounting of the product. The personnel must have read and understood the instruction manual and the further documentation. Prior to using the product make yourself familiar with it. Read the document carefully. Symbols Used This document contains symbols for the identification of warning messages and of informative messages.

  • Page 7: Product Description

    RFID20-* Product Description Product Description Overview Figure 3.1 RFID20-* is an RFID (Radio Frequency Identification) device consisting of an enclosure with integrated electronics equipped with an RFID chipcard reader. These are proximity readers that can read the corresponding transponder media without direct contact and transfer the data to operating devices or any other systems.
  • Page 8 RFID20-* Product Description RFID20-* Reader as VisuNet System Accessory Figure 3.2...
  • Page 9 RFID20-* Product Description RFID20-* Reader as Stand-alone component Figure 3.3...

  • Page 10: Reference Documents

    RFID20-* Product Description Reference Documents Important Instructions and Manuals for Operating the Device Documentation Contents VisuNet FLX System Manual - Dimensions - Important: Installation of the ferrite core - Card holder installation VisuNet RM Shell 6 Manual - Software Settings VisuNet Control Center Man- - Software Settings...

  • Page 11: Supported Transponder Media

    RFID20-* Product Description Supported Transponder Media Legend UID only r/w enhanced security features on request Supported as part of the EV1 downward com- patibility UID + r/w public area AV2 only, requires one free SAM slot for MIFARE SAM AV2 card Hash value only only emulation of 4100/4102 without encription...
  • Page 12 RFID20-* Product Description TWN4 Multi- TWN4 Multi- Tech 3 LEGIC M Tech 3 M LF HF LF HF Standard Standard (Standalone (Standalone Option: "A"; Option: "B"; FLX Version FLX Version Option: "R") Option: "F") 13.56 MHz (HF) ISO 14443A LEGIC Advant NTAG2xx NXP MIFARE Classic...
  • Page 13 RFID20-* Product Description TWN4 Multi- TWN4 Multi- Tech 3 LEGIC M Tech 3 M LF HF LF HF Standard Standard (Standalone (Standalone Option: "A"; Option: "B"; FLX Version FLX Version Option: "R") Option: "F") 13.56 MHz (HF) ISO 15693 EM4x33 EM4x35 ICODE SLI LEGIC Advant...
  • Page 14 RFID20-* Product Description TWN4 Multi- TWN4 Multi- Tech 3 LEGIC M Tech 3 M LF HF LF HF Standard Standard (Standalone (Standalone Option: "A"; Option: "B"; FLX Version FLX Version Option: "R") Option: "F") 125 kHz (LF) AWID Cardax CASI-RUSCO Deister EM4050 EM4100...

  • Page 15: Recommended Mode For Integration Into Systems

    Depending on the Installation environment and the used RFID Tag (Technology and Manufac- turer) the reading distance can highly vary. Warning! Pepperl+Fuchs does not guarantee that tags utilizing the listed technologies can be read in the customer specific installation situation. Technical Data...
  • Page 16 RFID20-* Product Description Directive conformity Explosion protection Directive 2014/34/EU EN IEC 60079-0:2018 EN IEC 60079-7:2015+A1:2018 EN IEC 60079-31:2024 Radio and telecommunication terminal equipment Directive 2014/53/EU RFID20-A-*NF-****-N**: EN 300 330 V2.1.1 EN 301 489-1 V1.9.2 EN 62368-1:2014+AC:2015-05+AC:2015-11 EN 50364:2010 EN 62479:2010 EN 55032:2015 Additional standards: EN 301 489-1 V2.1.1...

  • Page 17: Certifications And Markings

    RFID20-* Product Description Mechanical specifications Material PEEK housing, anodized aluminum backside Mass 300 g Dimensions 126 mm x 81 mm x 25 mm Cut out dimensions 90 mm x 65 mm Cable length 1.8 m / 0.6 m Certifications and Markings Self-Declaration Dust II 3G Ex ec IIC T4 Gc...
  • Page 18 RFID20-* Product Description Dimensions Figure 3.6...

  • Page 19: Installation And Commissioning

    RFID20-* Installation and Commissioning Installation and Commissioning Installation Warning! Warning/Caution! When the front foil is peeling off and or not fully intact any more. Explosion protection and IP66 protection cannot be ensured. Prior to mounting, installation, and commissioning of the device you should make yourself familiar with the device and carefully read the instruction manual.

  • Page 20: Mounting

    RFID20-* Installation and Commissioning Mounting The device may be installed and operated in any position. The device must be mounted securely. For this, use the threads and holes integrated into the enclosure. Mounting, connection, commissioning, repair and maintenance may only be carried out by qualified staff specially trained for this purpose.
  • Page 21 The use of the device is only permitted under the ambient conditions (temperature, humidity, vibration and shock) which are specified in the technical data. Failure to comply with any of these conditions voids the warranty for the device. Pepperl+Fuchs cannot be held liable for any damage arising from improper use and handling.
  • Page 22 RFID20-* Installation and Commissioning Figure 4.3 Cut-out dimensions Cutout width Cutout height 90 mm 65 mm Observe the following recommended distance to other electrical components or to a housing wall: - Behind the device: ± 55 mm The RFID Reader can be integrated housings with wall thickness of 1,5 mm, 2 mm, 3 mm and 4 mm.

  • Page 23: Front Foil Attachment

    RFID20-* Installation and Commissioning Front foil attachment It is mandatory to align the front foil properly and use the right pressure to ensure good adhe- sion. Proceed as follows to attach the front foil for stand-alone applications of the RFID20-* reader or in case of exchanging a damaged front foil: Clean the housing with isopropanol.
  • Page 24 Figure 4.7 Important: Make sure that the foil is flush all around. Remove paint with isopropanol. The correct installation is the responsibility of the user/ installer of the device. Pepperl+Fuchs does not take on liability for damages resulting from improper installation.

  • Page 25: Connecting The Rfid Reader To A Visunet Device

    RFID20-* Installation and Commissioning Connecting the RFID Reader to a VisuNet device The RFID reader RFID20-* comes preinstalled in the VisuNet FLX system. The LED of the RFID reader is green per default when supply voltage is applied. Important: In order to meet certain electrical noise emission limits, it is necessary to install a ferrite core on the Ethernet cables and the USB Supply cable SK-IDM-Z2-J2-1M-U-N con- nected to the BPC3200-*.

  • Page 26: Software

    RFID20-* Installation and Commissioning Software Please refer to the VisuNet RM Shell RFID settings to get information on the RFID version num- ber. For stand-alone applications, please refer to the development kit from ELATEC. Note The default setting for the RFID20-* is Standard keyboard accepting upgrade and config cards. In this configuration the reader connects as USB HID keyboard and accepts upgrade as well as configuration cards.

  • Page 27: Led Indication

    Proceed as Follows to Install and Commission the RFID20-* reader to a Install the available driver package RFID Reader TWN4 on your device (available on the Pepperl+Fuchs website). Connect the reader to your PC using the USB cable. Install TWN4 DevPack from ELATEC and flash the RFID20-* reader with the AppBlaster once.

  • Page 28: Integration In Host Device

    RFID20-* Installation and Commissioning Integration in Host Device There are no specific operational use conditions for RFID20-*-*NF-****-N** other than the con- ditions mentioned in the product user manual and data sheet. The host manufacturer and inte- grator must ensure that these use conditions comply with the use conditions of the host device. In addition, these use conditions must be stated in the user manual of the host device.

  • Page 29: Maintenance And Cleaning

    RFID20-* Maintenance and Cleaning Maintenance and Cleaning Maintenance The devices are maintenance-free across their entire lifespan. The following must be checked during maintenance work: a. Damage to the seals. c. All screws and nuts are tightened fast. d. All cables and lines are properly connected and undamaged. In case of damage or modification to the delivery state, immediately contact your local sales support.

  • Page 30: Chemical Resistance

    RFID20-* Chemical Resistance Chemical Resistance The RFID reader foil is manufactured from a biaxially aligned polyester-based material and therefore has a greater resistance to solvents. The foil is stronger and more durable than other standard foils used on front panels, such as polycarbonate and PVC. The RFID RFID20-* Reader foil is resistant against the following substances (Test method: DIN42115): Alcohols...
  • Page 31 RFID20-* Chemical Resistance Symbol Meaning Fair - Moderate effect, not recommended Severe effect, not recommended for ANY use Foam Gasket BISCO HT-800 PEEK Plastic frame (Dimension stability @ 23 °C Aluminum wet/dry) Acetic acid (concen- 1 / 1 (* 10% concen- trated 50%) trated) Acetone...

  • Page 32: Appendix

    RFID20-* Appendix Appendix Accessories Mounting Accessories Part. No. Type Code Description 70185322 RFID20-REPLACEMENT- Replacement foil for RFID20-* FOIL reader family. For readers built into VisuNet FLX or stand- alone application. 70185321 RFID-CARD-HOLDER Card holder clip for RFID20-*, VisuNet FLX and VisuNet GXP.
  • Page 33 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-9497...
