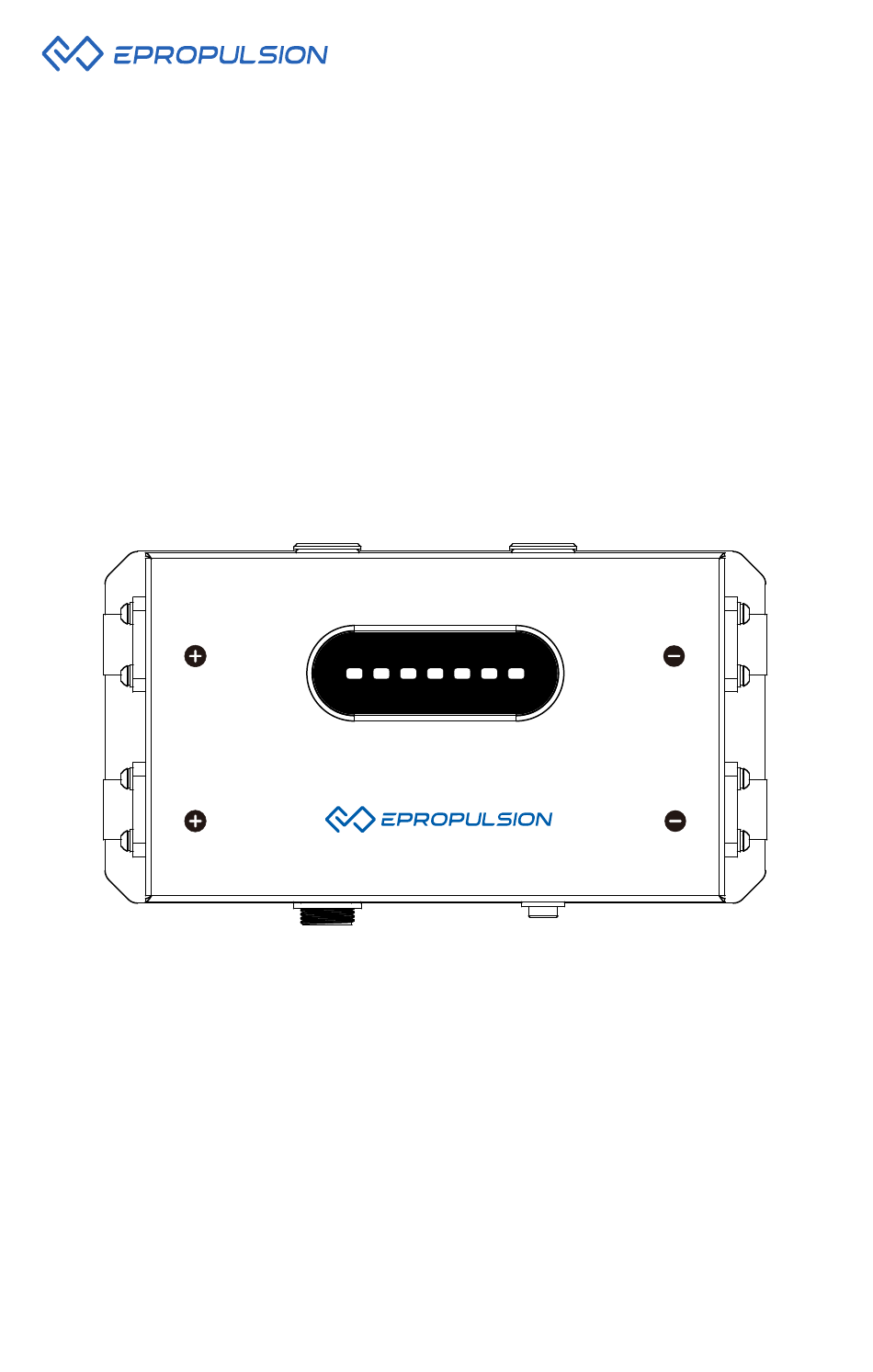

- Page 1 E Battery External Controller ON/OFF Mode Switch Charge Charge RUN 1 Control 字符颜色：黑色 MODEL: BEC4850 Suitable for E Battery 2024.11 Version 1.3 Copyright © ePropulsion Technology Limited...
-
Page 3: Declaration Of Conformity
Address: Room 801, Building 1, 11 Daxue Road, Songshan Lake, Dongguan, Guangdong Province, China Signature: Date: 2024.9.3 Shizheng Tao, Chief Executive Officer & Cofounder of Guangdong ePropulsion Technology Limited Statement Operation is subject to the following three conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Disposal And Environment
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •... -
Page 5: Interface Description
Do not reverse the positive and negative poles of the External Controller. 13mm Before connecting the External Controller with the third party product, please contact 86mm 90mm ePropulsion authorized distributor. 86mm 13mm 90mm If the E battery is charged by the solar charger without a communication cable, it may not be fully charged to 100%. -
Page 6: Packing List
Packing List Item Qty. E Battery External Controller 1 pcs E Battery External Controller Manual 1 pcs Operations Recommendation: Charge the system via shore power after every five cycles. Wiring Guide 13mm If you are unsure about wiring the system, do not attempt it yourself. 86mm 90mm Connect E40/E80/E175... - Page 7 Connect E60/E163 ON/OFF Mode Switch Charge Charge Solar Panel Main Control Switch AC input cable Communication cable For different E battery connections, you will need to purchase the following additional materials: Connection Item Note Battery Remote Switch 5m EB-AC02-01 To connect the remote switch, you need to prepare Battery Comm Cable T Connector EB-AC05-00 It is needed to connect the...
- Page 8 Connection Item Note Battery Remote Switch 5m EB-AC02-01 Non-essential At least prepare 1pcs To connect the remote Battery Comm Cable T Connector EB-AC05-00 switch, you need to prepare 2pcs It is needed to connect the Remote Switch Extension Cable remote switch, which is Without Resistance included in the E Battery Solar Charger 48V 1600W...
-
Page 9: Led Indicator
Modes • Mode 1 (No Control Mode) : For normal vessel operation. In this mode, the battery will charge and discharge at the same time. • Mode 2 (Standby Charge Mode) : Use this mode when the boat is left idle for more than one hour. -
Page 10: Warranty
Standby Discharge Mode before leaving the boat. Warranty ePropulsion E Battery External Controller is guaranteed against any manufacturing defects for TWO years from date of delivery of products to end customers. Free warranty is only validated upon the presentation of legal serial number, Warranty Card, and evidence of purchase from an authorized ePropulsion dealer. - Page 13 WARRANTY CARD (*In order to validate warranty, please fill in this form first and read the Warranty Policies.) OWNER INFO. Owner Name Address Phone Email DEALER INFO. Store Name Address Phone Email PRODUCT INFO. Date of Purchase (mm/dd/yyyy) Serial No.
- Page 16 Thanks for reading this user manual. If you have any concerns or find any problems while reading, please don't hesitate to contact us. We are delighted to offer service for you Guangdong ePropulsion Technology Limited Webseite: www.epropulsion.com E-Mail: service@epropulsion.com...
