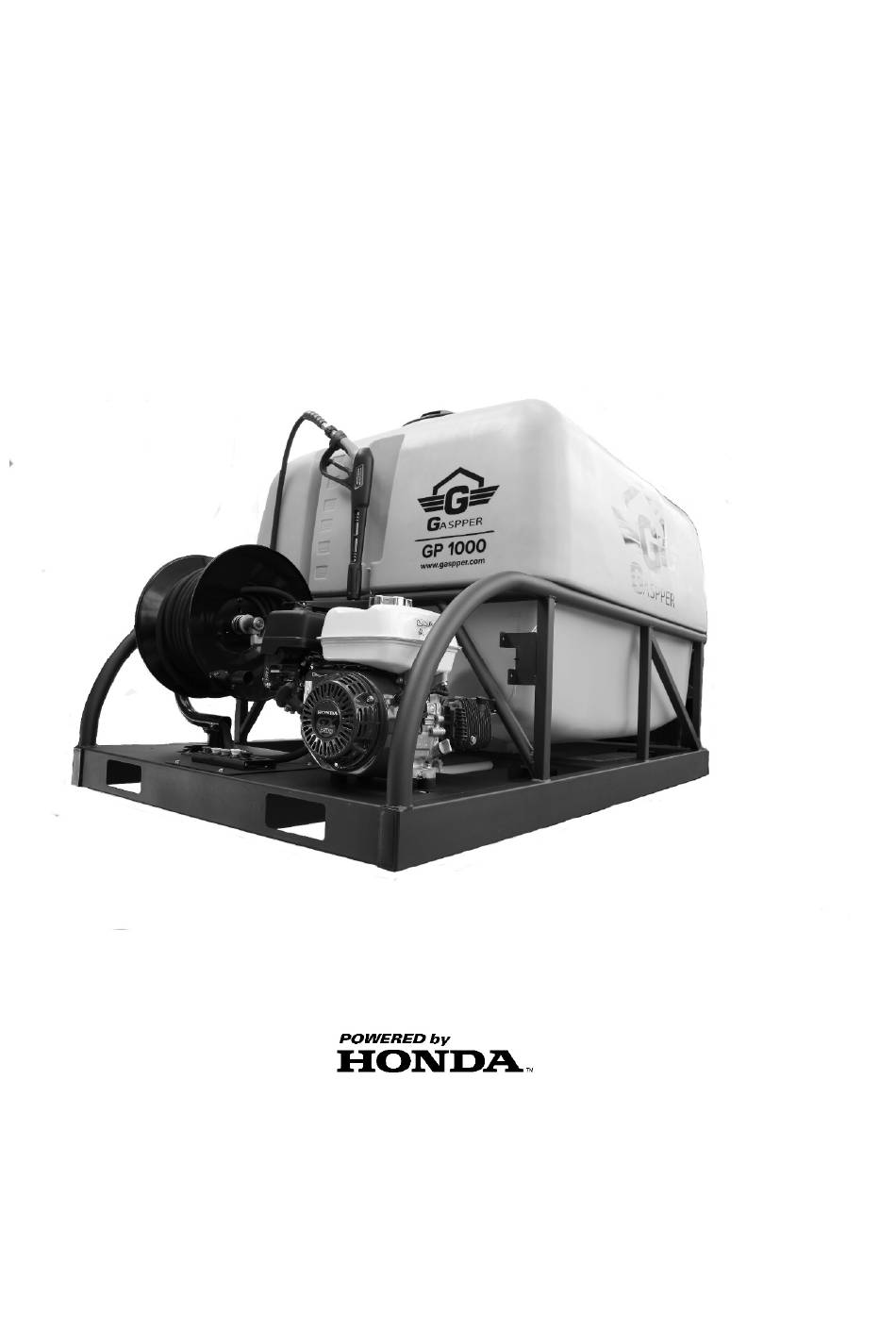

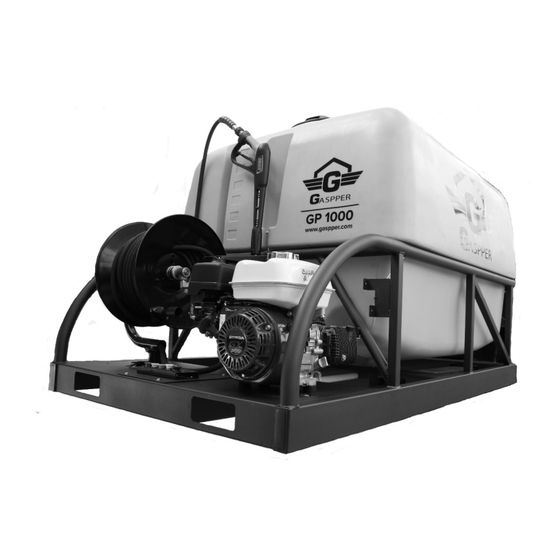

- Page 1 Operation manual GF1000 GE1065HD Motor-driven Original Manual of Use *The picture of the device is illustrative and it doesn`t have to comply with the actual view of the device...
-
Page 2: Table Of Contents
(in case of need with adding detergents); - with accessories and spare parts approved by the company Waspper s.r.o.. - In the environment without any direct exposure to the splashing polluted water with the solid particles. -
Page 3: Scope Of The Supply
Levels of danger DANGER - Warning before imminent danger, which may cause serious injuries or death. WARNING - Warning before a possible dangerous situation, which could result in minor injuries. WARNING - Warning before a possible dangerous situation, which could result in material injuries. Safety elements WARNING - Safety elements serve for the user protection against injuries and they mustn`t be altered or withdrawn from their operation... -
Page 4: Entry Into Service
Entry into service Supply with water WARNING Do not start up the pump without water in the tank. The minimal amount is around 50L. The pump switches off in case of lower water level. The water in the tank has to be clean, without solid particles or mud. Polluted water damages internal components of the high-pressure pump and clogs the water filter prematurely and sucking of water from the tank becomes more difficult. - Page 5 Turn the engine switch and fuel to the position (I). Move the gear control lever to the position CHOKE. Move the choke control lever to the position Hold the pump handle firmly by one hand and jump start leads handle by another hand. Pull jump start leads until you feel the engine resistance.
-
Page 6: Engine Maintenance
Spare parts are available through the producer or certified service point. Complete list of the components is published in this manual or on the Internet sites of the producer. Winter storage Correct long-term storage is a key to attain trouble free operation in the next season. You prolong the service life of the engine by the correct storage. -
Page 7: Pump
Pour the right amount and type of the engine oil into the engine. The oil specification is laid down below. - The accurate amount of the filler is written in the Technical specification. - Place the pump on the horizontal surface. Pour around ¾... - Page 8 Safety elements There is a water filter in the water entry to the pump. This filter needs to be checked and cleaned regularly. Deposited impurities cause decreased flow and increased vacuum during suction of the pump. It causes deactivation of the engine safety system and the engine switches off. Change the damaged filter or its rivet for a new one immediately.
- Page 9 Pump preparation for the operation The pump is filled up with the industrial oil. Because of the oil temperature change and thermal expansion during the operation, there is an AIR VALVE (pic. D). The operation of the pump with the low oil level or without oil causes the permanent damage on the pump and ceases the guarantee.
- Page 10 Usage of self-priming function of detergent The pump has self-priming function by use of vacuum from the pot. The black nozzle, determined for the purpose of detergent usage, is needed to start this function. The pump starts to suck the detergent itself through the opening marked by the arrow (pic. F).
- Page 11 Take away the hose of the pipe directed downwards ( pic. J) and decline the hose to enable outflow of all water from the pump. Leave the hose disconnected until the outflow process of water is finished. Disconnect the high-pressure hose in the outlet (pic. K). Then hold the jump 10 times start leads handle and pull the lead for like when starting the...
-
Page 12: Help With Failures
You find the list of the approved service points on our web site: www.waspper.com The company Waspper s.r.o. try continuously to improve the technical characteristics and user comfort of their products. Because of this reason the producer reserves the right to alter the construction and controls of the... -
Page 13: Technical Data
illustrated in this manual is accurate and realistic. Any design change of the controls does not need to be recorded in this manual. Technical data Device type GE1065HD GE1065BD GE1065LD GF1000 Engine type Honda Briggs/Stratton Peggas G200F-L ---- GX200 196cm3/ XR950 208cm3/ series... -
Page 14: Eu Declaration Of Conformity
EU Declaration of Conformity The company Waspper s.r.o. hereby declares that the water pumps defined below comply with the relevant EU directives on occupational health and safety of the device operators. Any alteration of the device without the prior consent from the manufacturer will render this declaration void. -
Page 15: Warranty Certificate
This registration enables the customer to avoid further procedures, as submitting of the purchase receipt or the warranty certificate. 1. The manufacturer - Waspper s.r.o. - is liable for inherent defects of the product purchased, if such defects become evident within the warranty period.
