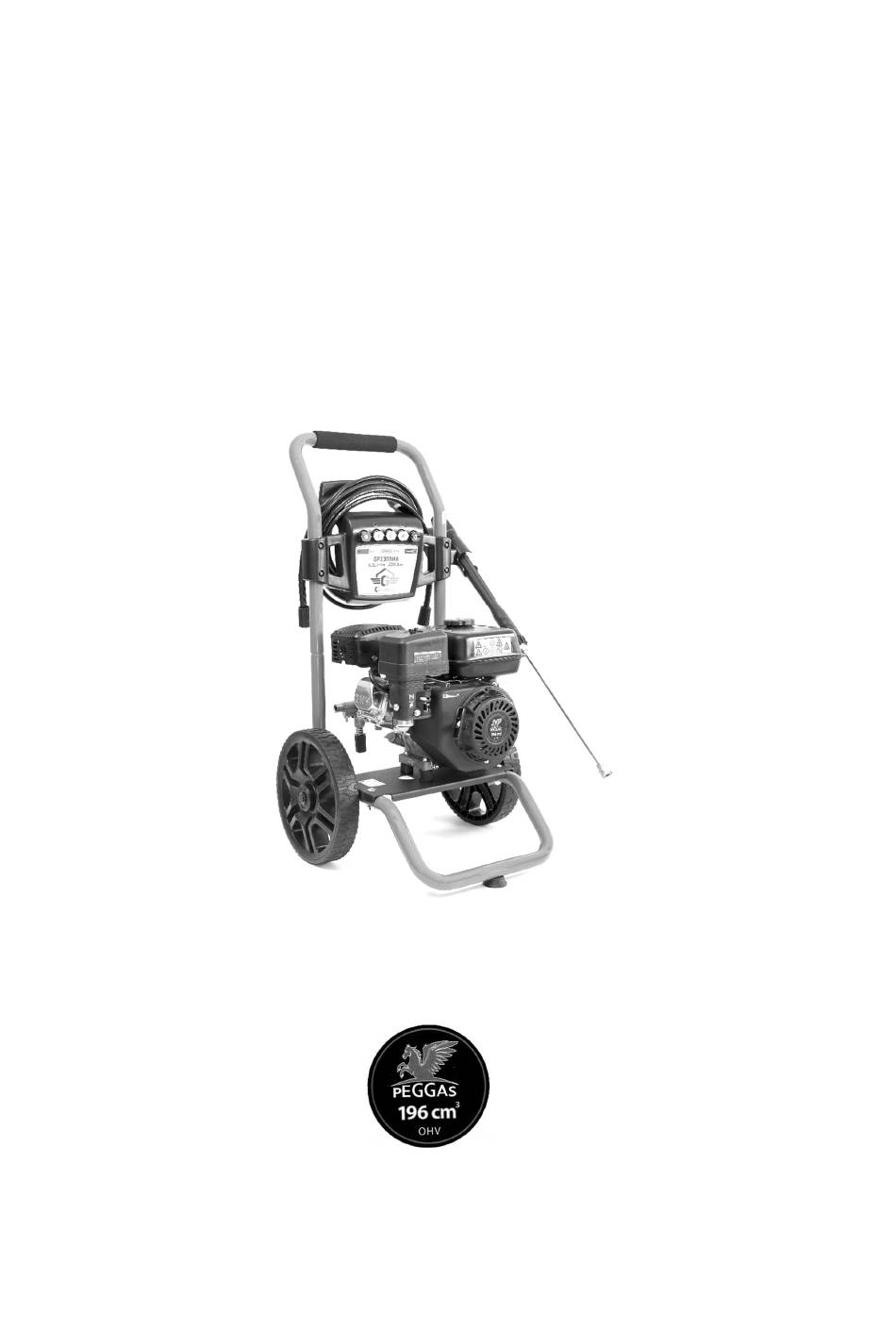

- Page 1 Operation Manual GP3300HA Engine driven Translation of the original operation manual *The picture serves for reference only and it may not represent an exact match of the device delivered...
-
Page 2: Table Of Contents
INDEX Application compliant with the product design p. 1 Environmental protection ....p. 1 Safety ....... p. 1 Scope of delivery . -
Page 3: Scope Of Delivery
Hazard levels DANGER - Indication of an immediate danger potentially resulting in serious injuries or death. CAUTION - Indication of a potential hazardous situation that may result in light injuries. WARNING - Indication of a potential hazardous situation that may result in material damage. Safety features CAUTION - Safety features are designed to protect their users from injuries and these may not be altered in any way or even put out of order... -
Page 4: Commissioning
Nozzle Quick-coupler The low-pressure inlet on the pump must be fitted with the garden hose adaptor, included in the delivery. Commissioning Water supply CAUTION Avoid operating the pump without a water supply line connected and fed from the source. The water resource yield must correspond with at least 14 litres per minute, at the minimum pressure of 1 bar. -
Page 5: Engine
CAUTION: When air gets into the pump, it’s necessary to remove the leaks and repeat the whole process of bleeding the pump. Engine MUST The engine be filled with the correct amount of engine oil supplied with the delivery before its first commissioning. The bottle with engine oil may contain larger amount than required for the particular engine type. -
Page 6: Engine Maintenance
CAUTION! starter cord recoil (engine resistance against the direction of starter cord pull) will draw your shoulder and hand towards the engine faster than you are able to release is, this may result in spraining, contusion or breakage of your limb. Once the engine has started up, shift the choke control lever RUN position SLOWLY. - Page 7 THERE IS AN OIL LEAKAGE HAZARD! It is recommended to change the engine oil at the end of the season. That will extend the engine service life. Engine oil change It is recommended to change the engine oil after use of this equipment (according to the Maintenance Schedule) Switch the engine off.
-
Page 8: Pump
Pump Your pump features an all-metal frame to ensure its long service life and flawless operation. The pump contains rotating parts mounted in very precise housings. It is therefore INEVITABLE that water fed into pump remains free of any mechanical contaminants. These contaminants would grind the contact surfaces inside the pump to increase the play between its internal components and reduce the output pressure. - Page 9 Preparing the pump for operation The pump is filled with operating oil. Due to the changes in oil temperature during operation and thermal expansion, a DISCHARGE VALVE is located on the upper side of the container. In order to avoid oil leaks from the pump during the transport, the valve opening is closed with a sealant with an identification label.
-
Page 10: Troubleshooting
Use of self-priming cleaning agent The pump has a function for automatic drawing of the cleaning agent from its supply contained using vacuum. The use of this function requires ASBS0-N0065) Black nozzle for cleaning agent application (item No.: . The pump will start drawing the cleaning agent through the opening marked with an arrow, only when this nozzle is used. -
Page 11: Warranty
The engine fails to start or 1.Clogged air filter 1.Clean the air filter starts and runs in jerky way 2.The engine has run out of fuel 2.Add fuel into the tank 3.Old fuel 3.Replace the fuel with fresh one or even top 4.The spark plug terminal is not linked with the up a larger amount of fresh fuel spark plug... - Page 12 List of components Top frame section - grip Pressure hose High-pressure nozzle Hose bracket High-pressure gun Tank Air filter Gun adaptor with quick-coupler Exhaust Engine Engine bracket Bottom section of frame with chassis Flexible grip locking pin...
-
Page 13: Declaration Of Conformity In Compliance With Eu Standards
Product details: High-pressure washer TYPE Inspection reports Noise level Guaranteed noise level measured GP3300HA 2617/3/2017-02 100dB 102dB TECHNICKÁ INŠPEKCIA a.s., pracovisko KOŠICE, ako akreditovaný inšpekčný orgán Certificate issued by: v zmysle EN ISO/IEC 17020 Applicable EU Directives: 2006/42/ES (+2009/127/ES) - Page 14 Application of claims for repairs under warranty requires completion and submission of the complaint form via the manufacturer's website: www.waspper.com. The product is covered by a full warranty of 24 months for private customers (as defined by the Civil Code) and 12 months for corporate customers (as defined by the Commercial Code). The warranty period commences upon completion and submission of the complaint report via the website in case of simple defects and damages.
- Page 15 Preparation of the device before the first start! Check the oil level in the engine Engine is oil-free from production! Unscrew the oil plug with a gauge and pour the engine oil supplied with the cleaner. Pour 0.6L oil into the engine.
