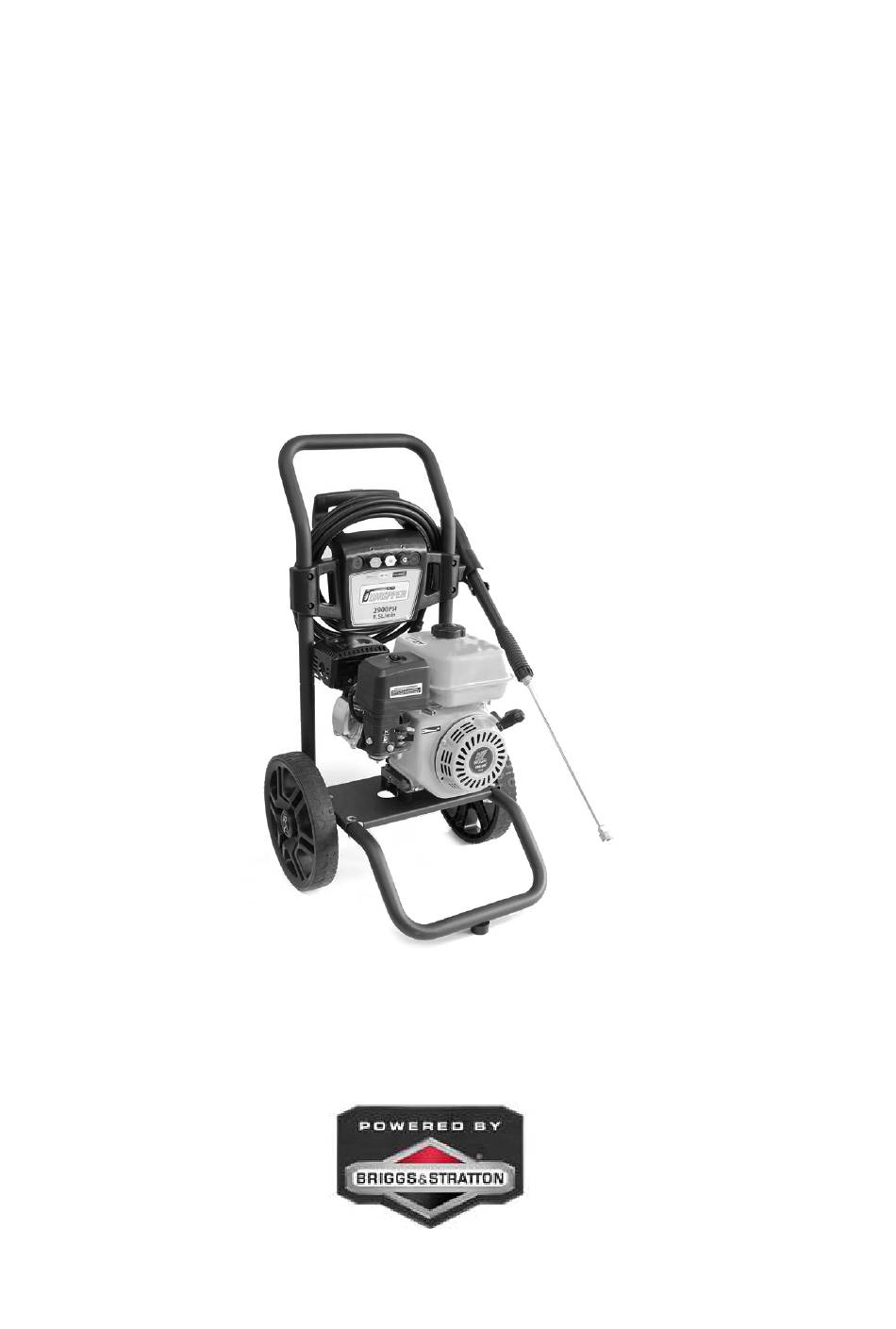

- Page 1 Operation Manual W3000HC Engine driven Translation of the original operation manual *The picture serves for reference only and it may not represent an exact match of the device delivered...
-
Page 2: Table Of Contents
INDEX Application compliant with the product design p. 1 Environmental protection ....p. 1 Safety ....... p. 1 Scope of delivery . -
Page 3: Scope Of Delivery
Hazard levels DANGER - Indication of an immediate danger potentially resulting in serious injuries or death. CAUTION - Indication of a potential hazardous situation that may result in light injuries. WARNING - Indication of a potential hazardous situation that may result in material damage. Safety features CAUTION - Safety features are designed to protect their users from injuries and these may not be altered in any way or even put out of order... -
Page 4: Commissioning
Nozzle Quick-coupler The low-pressure inlet on the pump must be fitted with the garden hose adaptor, included in the delivery. Commissioning Water supply CAUTION Avoid operating the pump without a water supply line connected and fed from the source. The water resource yield must correspond with at least 12 litres per hour, at the minimum pressure of 1 bar. -
Page 5: Engine
Engine MUST The engine be filled with the correct amount of engine oil supplied with the delivery before its first commissioning. The bottle with engine oil may contain larger amount than required for the particular engine type. For specifics refer to the Technical data section. -
Page 6: Engine Maintenance
CAUTION! starter cord recoil (engine resistance against the direction of starter cord pull) will draw your shoulder and hand towards the engine faster than you are able to release is, this may result in spraining, contusion or breakage of your limb. Once the engine has started up, shift the choke control lever RUN position SLOWLY. - Page 7 THERE IS AN OIL LEAKAGE HAZARD! It is recommended to change the engine oil at the end of the season. That will extend the engine service life. Engine oil change It is recommended to change the engine oil after use of this equipment (according to the Maintenance Schedule) Switch the engine off.
-
Page 8: Pump
When topping up the engine oil, use the type and brand of oil already matching the existing filling. Mixing of different oil types is not recommended! Pump Your pump features an all-metal frame to ensure its long service life and flawless operation. The pump contains rotating parts mounted in very precise housings. -
Page 9: Troubleshooting
When using the self-priming water supply mechanism: Make sure the water inside the supply contained is placed as high as possible, when compared to the water supply into the pump. Higher elevation difference of water levels helps to simplify the priming and reduce cavitation - the phenomenon associated with release of air bubbles from the liquid. -
Page 10: Warranty
The position of all control and safety features illustrated in this manual corresponds with their actual positioning. This manual does not have to reflect any changes in design of control levers. Technical data Device type W3000HC Engine type Biggs-Stratton 163cm3/ 3,7kw Maximum speed... - Page 11 List of components Top frame section - grip Pressure hose High-pressure nozzle Hose bracket High-pressure gun Tank Air filter Gun adaptor with quick-coupler Exhaust Engine Engine bracket Bottom section of frame with chassis Flexible grip locking pin...
-
Page 12: Declaration Of Conformity In Compliance With Eu Standards
Any alteration of the device without the prior consent from the manufacturer will render this declaration void. Product details: High-pressure washer TYPE Inspection reports Noise level Guaranteed noise level measured W3000HC 2617/3/2017-01 97 dB 99 dB Certificate issued by: Technická inšpekcia, a.s., Trnavská cesta 56, 82101 Bratislava Slovenská republika Applicable EU Directives: 2006/42/ES (+2009/127/ES) - Page 13 Application of claims for repairs under warranty requires completion and submission of the complaint form via the manufacturer's website: www.waspper.com. The product is covered by a full warranty of 24 months for private customers (as defined by the Civil Code) and 12 months for corporate customers (as defined by the Commercial Code). The warranty period commences upon completion and submission of the complaint report via the website in case of simple defects and damages.
