Amba RADIANT SQUARE LARGE RSWHL-P Installation Instructions

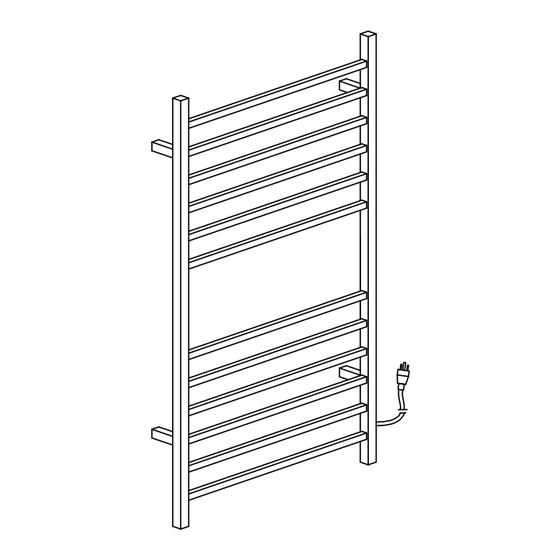

RADIANT SQUARE LARGE
INSTALLATION INSTRUCTIONS
W ARNINGS
• These units should be installed by a certified electrician in accordance with the National Electrical Code (NEC)and the Canadian Electrical Code (CEC).
• The unit requires a 120 volt, 60 Hz power source and should be installed on a GFCI protected circuit.
• Plug-in units should be connected to a grounded outlet with a minimum rating of 10 amps.
• Follow instructions to ensure he learned is securely fix the wall. Unit is designed for drying towels. Under no circumstances should anyone climb on or hang on unit.
• Unit is intended for indoor use only. Do not place units inside a shower, sauna, steam room, or wherever unit would be exposed to water.
C AUTION
• As this is a heating device, the surface temperature can increase depending on the ambient temperature in the room and the number of tiles apply to the unit.
• Overloading the unit can cause the unit to become extremely hot and they result in a burn it touched and or damage the towels.
• The fasteners provided with installation kit are for convenience only are not suitable for all installation conditions.
• It is the ultimate responsibility of the installer to ensure proper mounting hardware is employed in attaching the unit to the wall.
OPERATING INSTRUCTION
• After installation, connect electrical power.
• Remove the protective cover from the switch and turn it to the on position.
• The indicator light will glow blue and the towel warmer will start to heat — allow 10–20 minutes to heat up.
• This towel warmer has been designed to run continuously-turn off the switch or unplug the cord in the tower is not in use for long periods of time.
• Never use an extension cord for plug-in models.
INC
M5x6
SKUS
ＲＳＷＨＬ－Ｐ ｜ ＲＳＷＨＬ－Ｂ ｜ ＲＳＷＨＬ－ＭＢ
Ｐ － ＰＯＬＩＳＨＥＤ ｜ Ｂ － ＢＲＵＳＨＥＤ ｜ ＭＢ － ＭATTE BLACK
INTEGRATED SWITCH
•The radiant collection features an
integrated on/off switch.
•Remove plastic cover after installation
•Switch is located on the bottom of the right
vertical bar.
•Press switch to power on unit.
•Switch will illuminate when on.
Please read the following information before installing and using your heated towel rack
LUDED COMPONENTS
ST4.2x40
! CAUTION —SURFACE OF UNIT IS HOT WHEN ON !
***
FOR HARDWIRE INSTALLATION PLS SEE PAGE 3.
TOOLS REQUIRED
M8x28
CONFOR M S T O UL S T D.499
CER T IFIED T O C S A S T D C22.2 NO.6 4
T O W EL WA R MER | MODEL : R S W HL
R AT ED V OLTA GE : 120V~
R AT ED FR EQUENC Y: 60H z
R AT ED P OW ER INP U T: 150W
S ER I A L NO :
C AUTION:
HOU S EHOL D U S E ONLY
DO NO T IMMER S E IN WAT ER
HO T S UR FA CE : AV OID CON TA C T
U T IL I S AT ION DU MÉN A GE S EUL EMEN T
NE PA S P L ONGER DA N S L' E AU
S UR FA CE CH AUDE É V I T ER CON TA C T
TEL : 404-350-9738 FA X : 404-355-0166
cus tomer s er v ice@ambaproduc t s .com
w w w.ambaproduc t s.com
WARRANTY
2 YE AR S
T H E WA R R A N T Y CO V ER S
DEF EC T S I N W O R K M A N S H I P
A N D M AT E R I A L S
Two year limited warranty
with proof of purchase
will apply if all terms and
conditions of sale are met
and installation instructions
are adhered to.
FOR FULL WARRANTY AND
TERMS OF SALE VISIT:
www.ambaproducts.com/warranty
PARAMETER
CONTACT
EM A IL :
PAGE - 1
***
