3165407
CONSULT THIS INSTRUCTION MANUAL IN ITS ENTIRETY PRIOR TO
THE HANDLING & INSTALLATION OF ANY TOWEL WARMER
FOLLOW THE GENERAL GUIDELINES & INCLUDED WIRING DIAGRAM.

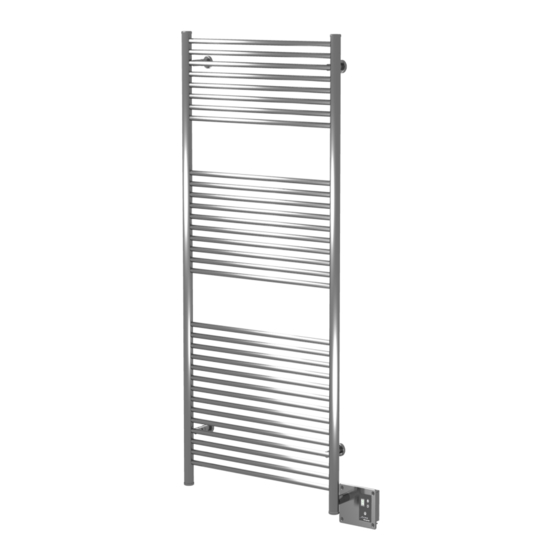

Instructions for Use & Installation
ANTUS COLLECTION
SKU
A2056
A2072
A2856
ADDITIONAL COMPONENTS
Width HEIGHT Power
19 3/4"
56 3/8"
19 3/4"
72 3/8"
27 1/2"
56 3/8"
7
8
9
1 – Plastic Anchor
2 – Cover Washer
3 – Regulating Plate
4 – Anchor Screw
5 – Supporting Screw
110v
Amps
400 watts
3.5
530 watts
4.6
530 watts
4.6
3
5
4
6
2
6 – Washer
7 – Cover
8 – Mounting Fixture
9 – Fixing Screw
10 – Extension
DIGITAL HEAT CONTROLLER
Please see Instructions
for Optional Switch see guide
790 Pickens Industrial Dr,
Marietta, GA 30339 USA
Phone : (404) 350 9738
Fax : (404) 355 0166
www.ambaproducts.com
IP 54
BTU
1364
1807
1807
1
(not shown - optional)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amba EmmeSteel ANTUS A2056
Summary of Contents for Amba EmmeSteel ANTUS A2056

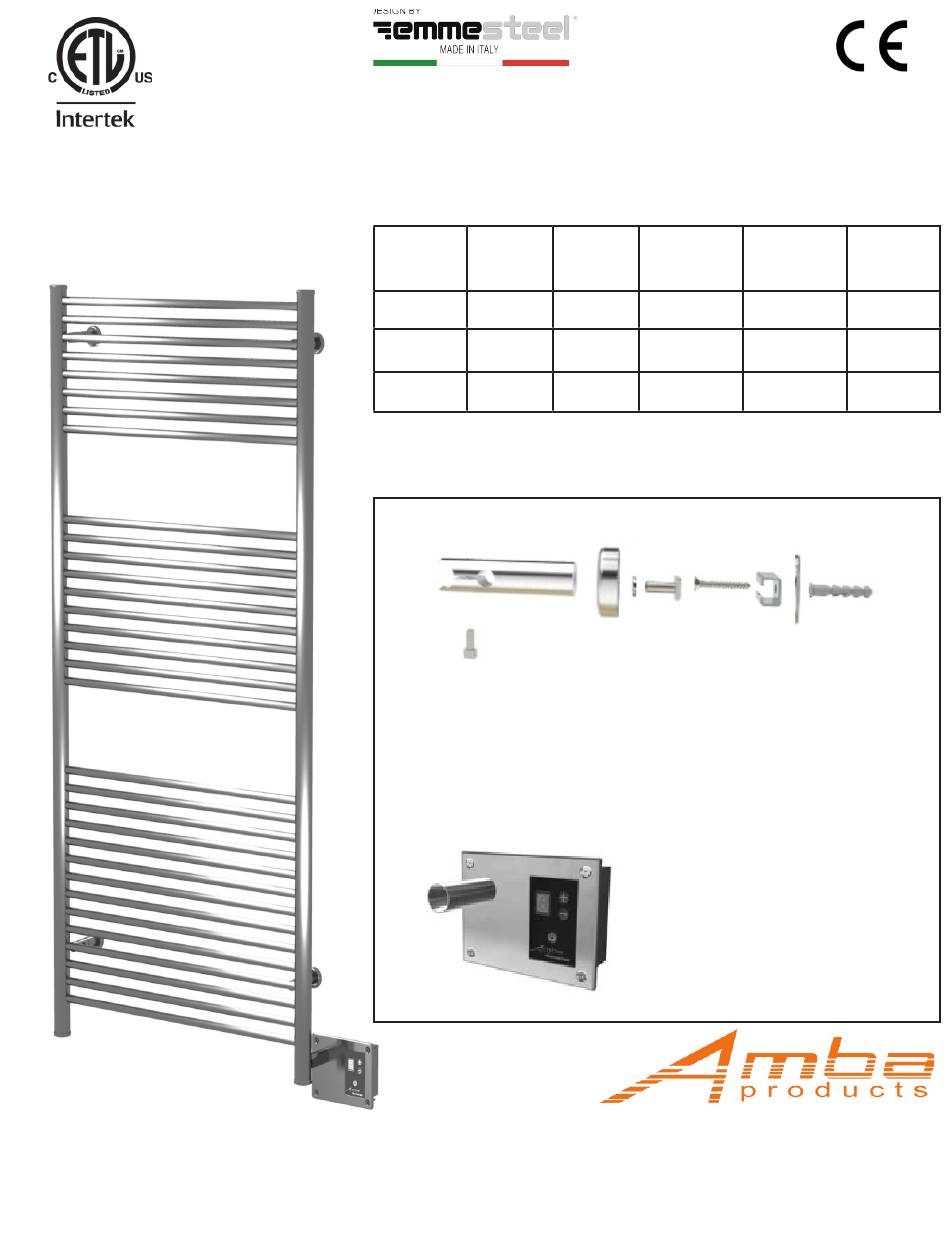

- Page 1 IP 54 Instructions for Use & Installation ANTUS COLLECTION 3165407 110v Width HEIGHT Power Amps A2056 19 3/4” 56 3/8” 400 watts 1364 A2072 19 3/4” 72 3/8” 530 watts 1807 A2856 27 1/2” 56 3/8” 530 watts 1807 ADDITIONAL COMPONENTS 1 –...
- Page 2 Discoloration of some towels may occur — this could be the result of fabric makeup, detergent residue, or if too many towels are placed on the towel warmer. For these reasons Amba Products cannot be held liable for any damage to towels. Consider the option of using a digital heat controller for delicates, acrylics, or nylon —...
- Page 3 It is also possible to use a solvent — use caution & make sure to read the technical forms and norms for it’s use • In case of uncertainty, do not hesitate to contact Amba Products Amba Products declines any responsibility if these instructions are not followed...
- Page 4 INSTALLATION CAUTION: DO NOT TAKE OFF THE PROTECTIVE P.V.C. TAPE BEFORE INSTALLING TOWEL WARMER TO INSTRUCTIONS AVOID SCRATCHING, MARKING OR GRAZING THE SURFACE. STEP 1 STEP 2 Brick Wall Cover Washer Regulating Plate Plastic Anchor Drywall Drywall: • Fasteners should be fixed to studs or structural members behind the drywall Brick wall: •...
- Page 5 INSTALLATION STEP 7 INSTRUCTIONS View Without View With Extension Extension • Proceed with the fastening of the wall bracket to the bar by screwing the fixing screw (9); • Repeat this procedure for the other wall brackets; CAUTION: REMOVE THE PROTECTIVE P.V.C. TAPE BEFORE SWITCHING THE TOWEL WARMER ON www.ambaproducts.com...
- Page 6 • Do not use the digital heat controller in case of wire or damaged plug, in event of malfunction, fall or other kind of circumstances: contact Amba Products- see the “general terms of sale” • We recommend that p.V.C. Protective tape is left in place until the digital heat controller is fully installed; however please remove tape before switching unit on as p.V.C.
- Page 7 DIGITAL HEAT CONTROLLER (DHC) INSTALLATION STEP 1 INSTRUCTIONS E - Ground faston POWER REGULATOR B - DHC Supply Cable D - Towel Warmer cable A - Power Source Cable C - DHC Output cable Connect T1 (A)-T2(B)-T3(D) to faston T(E) STEP 2 Connect L 1 (A)-L2(B) Connect N 1 (A)-N2(8)
- Page 8 SWITCH INSTALLATION FOR UNITS WITHOUT DIGITAL HEAT CONTROLLER COMPONENTS Power source cable Towel warmer cable • Connect the two grounding cables (green) • Consider the button as 2 separate vertical sections, one on the right and one on the left •...
