CONSULT THIS INSTRUCTION MANUAL IN ITS ENTIRETY PRIOR TO
THE HANDLING & INSTALLATION OF ANY TOWEL WARMER
FOLLOW THE GENERAL GUIDELINES & INCLUDED WIRING DIAGRAM.

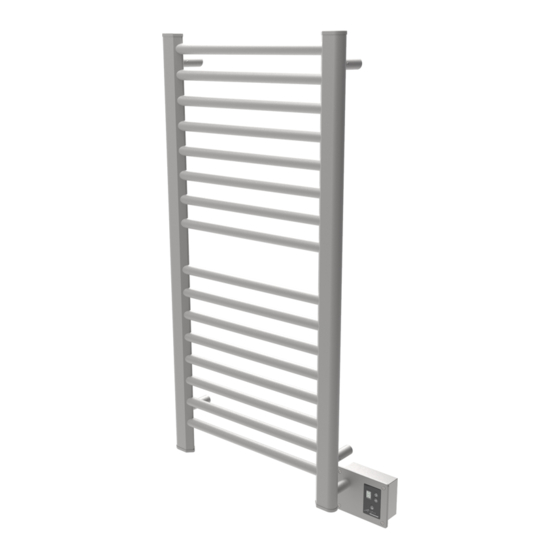

Instructions for Use & Installation
SIRIO COLLECTION
SKU
S2121
S2133
S2142
S5721
S2933
S2921
S2942
COMPONENTS
1 – Plastic Anchor
2 – Threaded Wall Support
3 – Anchor Screw
4 – Threaded Long Tube
Width HEIGHT Power
21 1/2"
21 1/2"
21 1/2"
33 1/2"
21 1/2"
42 3/4"
56 3/4"
21"
33 1/4"
29 1/4"
21 1/2"
29 1/4"
29 1/4"
42 3/4"
7
5
4
6
110v
Amps
115 watts
1
172 watts
1.5
232 watts
2.0
370 watts
3.2
232 watts
2.0
148 watts
1.4
296 watts
2.5
2
3
5 – Setscrew
6 – Fixing Screw
7 – Bushing
DIGITAL HEAT CONTROLLER
Please see Instructions;
DHC Included on all models excluding S2121
See optional switch guide
790 Pickens Industrial Dr,
Marietta, GA 30339 USA
Phone : (404) 350 9738
Fax : (404) 355 0166
www.ambaproducts.com
IP 54
BTU
392
586
791
1262
791
505
1009
1
Advertisement
Table of Contents
Related Manuals for Amba emmesteel SIRIO S2121
Summary of Contents for Amba emmesteel SIRIO S2121

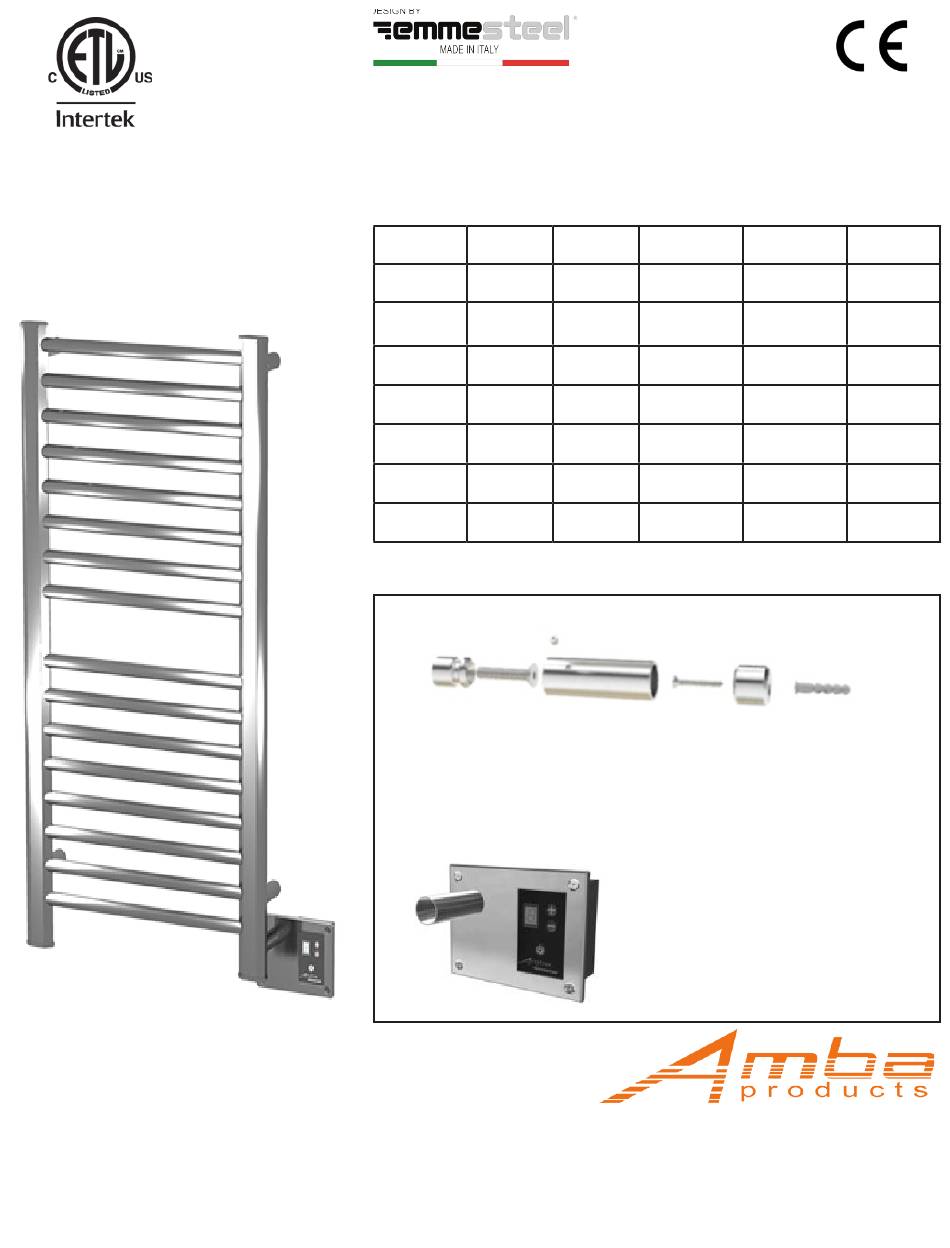

- Page 1 IP 54 Instructions for Use & Installation SIRIO COLLECTION 3165407 110v Width HEIGHT Power Amps S2121 21 1/2” 21 1/2” 115 watts S2133 21 1/2” 33 1/2” 172 watts S2142 21 1/2” 42 3/4” 232 watts S5721 56 3/4” 21” 370 watts 1262 S2933...
- Page 2 Discoloration of some towels may occur — this could be the result of fabric makeup, detergent residue, or if too many towels are placed on the towel warmer. For these reasons amba products cannot be held liable for any damage to towels. Consider the option of using a digital heat controller for delicates, acrylics, or nylon —...
- Page 3 It is also possible to use a solvent — use caution & make sure to read the technical forms and norms for it’s use • In case of uncertainty, do not hesitate to contact Amba Products Amba Products declines any responsibility if these instructions are not followed...
- Page 4 INSTALLATION CAUTION: DO NOT TAKE OFF THE PROTECTIVE P.V.C. TAPE BEFORE INSTALLING TOWEL WARMER TO INSTRUCTIONS AVOID SCRATCHING, MARKING OR GRAZING THE SURFACE. STEP 1 STEP 2 Drywall Brick Wall Anchor Screw Threaded Wall- Support Plastic Anchor Drywall: • Fasteners should be fixed to studs or structural members behind the drywall Brick wall: •...
- Page 5 • Do not use the digital heat controller in case of wire or damaged plug, in event of malfunction, fall or other kind of circumstances: contact Amba Products- see the “general terms of sale” • We recommend that p.V.C. Protective tape is left in place until the digital heat controller is fully installed; however please remove tape before switching unit on as p.V.C.
- Page 6 DIGITAL HEAT CONTROLLER (DHC) INSTALLATION STEP 1 INSTRUCTIONS E - Ground faston POWER REGULATOR B - DHC Supply Cable D - Towel Warmer cable A - Power Source Cable C - DHC Output cable Connect T1 (A)-T2(B)-T3(D) to faston T(E) STEP 2 Connect L 1 (A)-L2(B) Connect N 1 (A)-N2(8)
- Page 7 SWITCH INSTALLATION FOR UNITS WITHOUT DIGITAL HEAT CONTROLLER COMPONENTS Power source cable Towel warmer cable • Connect the two grounding cables (green) • Consider the button as 2 separate vertical sections, one on the right and one on the left •...
