KRUG+PRIESTER IDEAL AP40 PRO Operating Instructions Manual
Hide thumbs
Also See for IDEAL AP40 PRO:
- Operating instructions manual (68 pages) ,
- Operating instructions manual (136 pages)
Related Manuals for KRUG+PRIESTER IDEAL AP40 PRO
Summary of Contents for KRUG+PRIESTER IDEAL AP40 PRO

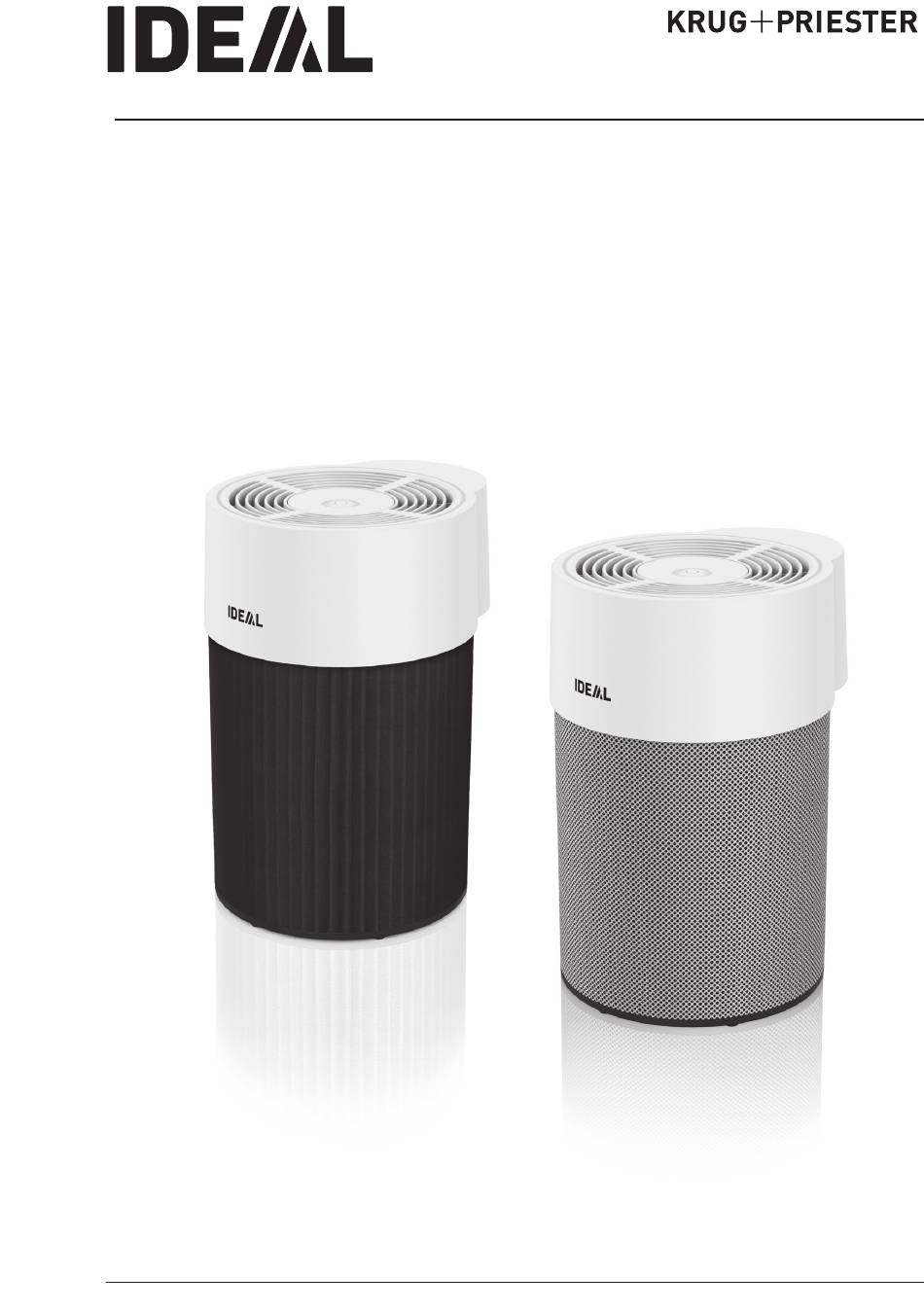

- Page 1 Operating Instructions Air Purifier IDEAL AP30 PRO IDEAL AP40 PRO AP30 40 PRO DE-NL 08-2022 9700281 20240318zm...
-
Page 2: Table Of Contents
Unpacking and setting up Operation Startup / Fan speeds Operation Display Air quality indicator Filter replacement indicator only IDEAL AP40 PRO: Remote control (when using for the first time) Remote control (replacing the battery) Remote control (function) Changing the filter... -
Page 3: Intended Use
Important safety instructions Introduction Thank you for choosing a device from IDEAL. Intended use • The device is used exclusively for cleaning the ambient air indoors. • Please read these operating instructions before starting to use the device and please follow the safety instructions. The operating instructions must be kept available with the device at all times. - Page 4 Important safety instructions Important safety instructions • Children being supervised not to play with the appliance. • Do not block the air intake and outlet. • Keep this air purifier away from direct sunlight, naked flames or heat. • Only use the air purifier in closed interiors and within the specified technical parameters.
-
Page 5: Product Features
Easy maintenance and replacement of the filter cartridge. Included in the box r b o Air Purifier Filter cartridge Remote control (Unit head) • With 3V lithium battery (only IDEAL AP40 PRO) Luftreiniger Betriebsanleitung Air Purifier Operating Instructions Purificateur Mode d´emploi IDEAL AP30 PRO IDEAL AP40 PRO www.ideal.de... -
Page 6: Unpacking And Setting Up
• Place the device on a stable, even surface and make sure there is sufficient air circulation. Remove power cable (1.), operating instructions (2.), remote control (3. only IDEAL AP40 PRO) and textile cover (4. only IDEAL AP40 PRO). Lift the filter cartridge out of the box, unpack it and remove the protective film. - Page 7 Unpacking and setting up Take the textile cover (only IDEAL AP40 PRO) out of the protective film, place it around the filter cartridge and close it at the back (locking component A). Insert the filter cartridge with the three snap-fit...
-
Page 8: Operation Startup / Fan Speeds
Operation Startup / Fan speeds 1. Plug in the power cable, press the switch button (B). The air purifier starts in automatic mode . The switch button lights up. 2. Press the switch button to exit automatic mode. The air purifier now runs at fan speed 1 . -
Page 9: Operation Display
Operation / Display Display Air quality indicator The air quality is displayed in 3 colours (in all fan speeds): Switch button (B) green: good air quality Switch button yellow: average air quality Switch button red: poor air quality Filter replacement indicator The switch button (B) flashes orange to indicate that the filter needs changing (flashes at intervals). - Page 10 Remote control (only IDEAL AP40 PRO) Battery usage • Always use 3V lithium batteries CR2025 for the remote control. • Incorrect battery usage may result in leakage of battery fluid and/or damage. • If the remote control is not going to be used for a long time, please remove the battery.
- Page 11 Remote control (only IDEAL AP40 PRO) Replacing the battery • Open the battery compartment by pressing (A) and pulling out (B) at the same time. Take out the flat battery. • Insert a new battery into the battery compartment, making sure the polarity is correct (+ / -).
-
Page 12: Remote Control (Function)
Remote control (only IDEAL AP40 PRO) On/off button Quiet button Automatic button Turbo Auto Timer buttons Fan speed buttons Locking button Function Select the required fan speed Switches the air purifier to automatic mode Switches the air purifier on/off Switches the air purifier to Quiet mode Select the required timer time Pressing the timer while the air purifier is switched on activates the "switch-off timer"... -
Page 13: Only Ideal Ap40 Pro
Unlock the filter cartridge at the locking component (A) and remove. Remove the textile cover (only IDEAL AP40 PRO). Remove the protective film from the new filter cartridge. AP30 40 PRO DE-NL 08-2022 9700281 20240318zm... - Page 14 Filter replacement Put the textile cover (only IDEAL AP40 PRO) back on the filter cartridge and close it at the back (locking component A). Insert the filter cartridge with the three snap-fit tabs into the three recesses provided for this and lock it at the locking...
-
Page 15: App Control
App Control / WLAN App Control Your purifier can additionally be controlled by the "IDEALAIRPRO" App via your smartphone / tablet (iOS /Android). WLAN Querying the WLAN status: The air purifier is switched on. Press the WLAN button the WLAN is enabled when the switch button flashes blue ... -
Page 16: Cleaning And Maintenance
Cleaning and maintenance / Accessories Cleaning and maintenance CAUTION: Disconnect the mains plug prior to any cleaning or maintenance work! • Replace the filter cartridge as soon as the filter replacement indicator lights up. The average life expectancy of the filter is approx. 1 year (depending on operation and purification activities). -
Page 17: Troubleshooting
The switch button on the air purifier is not Has the locking function been activated? working. Disable the locking function on the remote control (only IDEAL AP40 PRO) or via the app (Function F). Unplug the power cable and then plug it back in. - Page 18 Disable the Quiet function by selecting a different fan speed via the app or on the remote control (only IDEAL AP40 PRO). Automatic mode is not working properly. The air purifier is calibrating the air quality sensor.
- Page 19 Troubleshooting The air purifier is making loud noises. Is the filter cartridge really dirty? Clean the pre-filter with a vacuum cleaner. Is the air purifier located on an even surface? Place the device on an even surface. Is the air purifier running at a high fan speed? ...
-
Page 20: Technical Data
298 × 255 × 398 mm Weight 3,6 kg 54,2 dB(A) Volume at turbofan speed (max.) 16,7 dB(A) Volume in Quiet mode (min.) IDEAL AP40 PRO: Power supply 200-240V 50/60Hz / 100-120V 50/60Hz Power consumption 75W (200-240V) / 55W (100-120V) Suitable for rooms 30 to 50 m²... - Page 21 The company Krug + Priester has the following certifications: • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2015 • Energy management system according to DIN EN ISO 50001:2018 Storage We recommend storing the air purifier in its original packaging in a cool, dry place.
- Page 22 - Herewith we declare that GS-IDENT. No. UL-IDENT. No. IDEAL AP30 PRO Made in Germany 11731002 10731002 IDEAL AP40 PRO Made in Germany 11731001 10731001 - complies with the following provisons applying to it 2014/35/EU Low voltage directive 2011/65/EU, 2015/863/EU...
- Page 23 Supplier‘s Declara�on of Conformity 47 CFR § 2.1077 Compliance Informa�on This device complies with part 15 of the FCC Rules. Opera�on is subject to the following two condi�ons: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera�on.
- Page 24 Notes : AP30 40 PRO DE-NL 08-2022 9700281 20240318zm...
- Page 25 Made in Germany Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) AP30 40 PRO DE-NL 08-2022 9700281 20240318zm...
