Summary of Contents for KRUG+PRIESTER IDEAL AP60 PRO

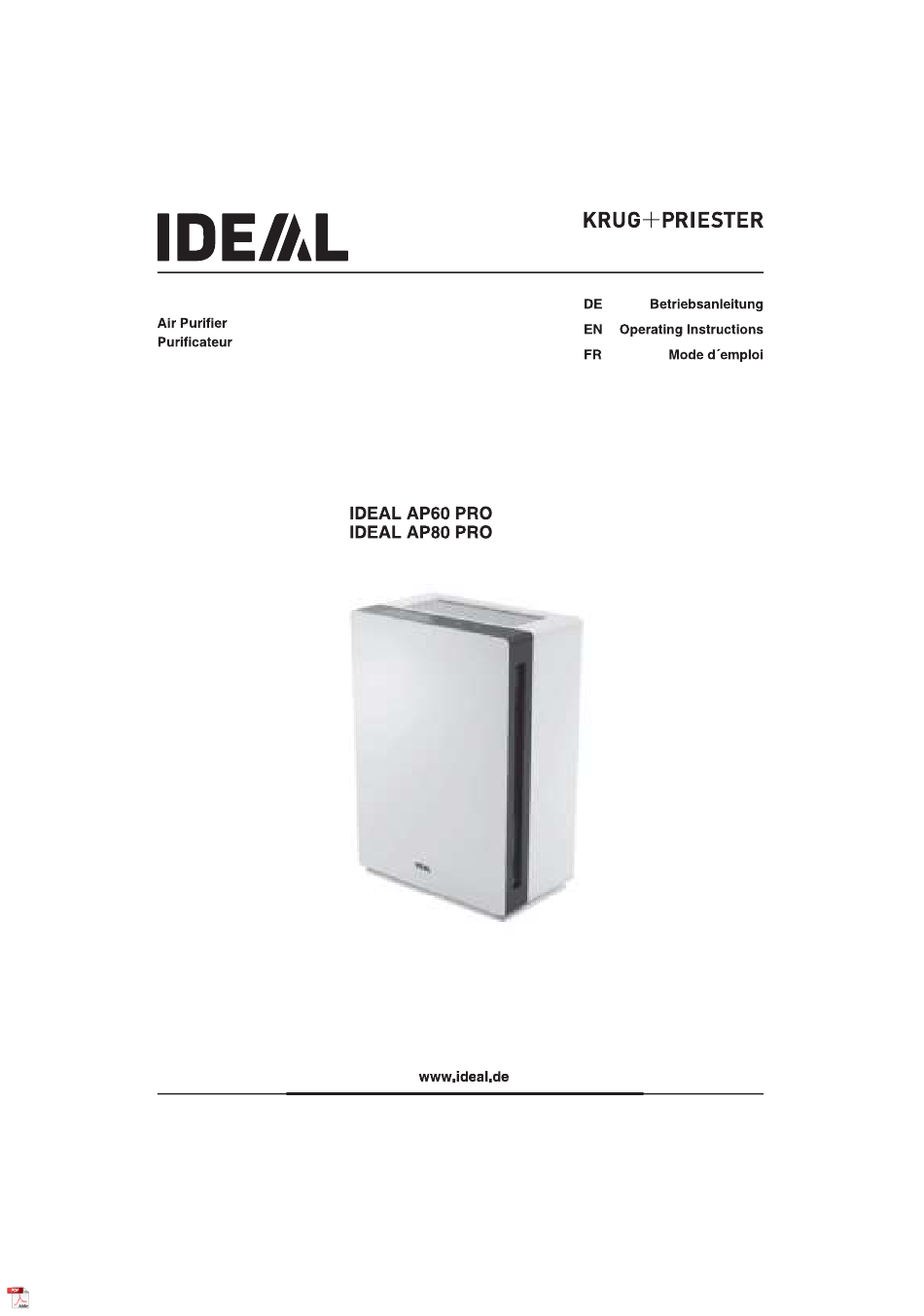

- Page 1 Luftreiniger www.ideal.de...
- Page 3 Thank you for choosing a device from IDEAL. • The device is used exclusively for cleaning the ambient air indoors. • Please read these operating instructions before starting to use the device and please follow the safety instructions. The operating instructions must be kept available with the device at all times. Read and save these instructions: to persons associated with use of the appliance.
- Page 4 • Children being supervised not to play with the appliance. • Do not block the air intake and outlet. technical parameters. Improper usage may pose a threat to life and health. • Disconnect the mains plug prior to any cleaning or maintenance work. •...
- Page 5 • needs to be replaced. • • • • With self-adhesive • With 3V lithium battery Luftreiniger www.ideal.de...
- Page 6 • The air intake ducts on the top can be used as handles (see adjacent diagram). • Place the device at least 10 cm away from the wall. • Keep the device away from areas subjected to draft (wind). • Make sure that furniture, fabrics or other objects do not come in contact with the air intake/ outlet or block them.
- Page 7 using the recessed grips provided and turn it anti-clockwise ( ). ) and remove the notches provided and lock in position by turning clockwise then pivot upwards and press shut ( ), then to the socket ( Note: Use the original packaging to store the air protect the activated carbon.
- Page 8 Air outlet grill Control panel Air intake ducts Filter cartridge Front panel Power cable...
- Page 9 On/off button Air quality indicator Quiet button Fan speed button Timer button Fan speed indicator Timer indicator Filter replacement Daylight sensor Air quality sensor Quiet indicator indicator IR receiver A) and after being The air quality sensor (L disconnected from the mains power supply. Once the air quality sensor has been calibrated, the (F) and air quality indicators (E) flash red alternately.
- Page 10 On/off button Air quality indicator Quiet button Fan speed button Timer button Fan speed indicator Timer indicator Filter replacement Daylight sensor Air quality sensor Quiet indicator indicator IR receiver • Press the on/off button (A . In automatic mode, the fan speed ( ) automatically adapts to the measured air quality.
- Page 11 On/off button Air quality indicator Quiet button Fan speed button Timer button Fan speed indicator Timer indicator Filter replacement Daylight sensor Air quality sensor Quiet indicator indicator IR receiver The Quiet button (D) is provided for particularly low-noise, unobtrusive operation (e.g.
- Page 12 • Always use 3V lithium batteries CR2025 for the remote control. • Incorrect battery usage may result in leakage of battery fluid and/or damage. • If the remote control is not going to be used for a long time, please remove the battery. •...
- Page 13 • Open the battery compartment by pressing (A) and pulling out (B) at the same time. Take out the flat battery. • Insert a new battery into the battery compart- ment, making sure the polarity is correct (+ / -). •...
- Page 14 On/off button Quiet button Automatic button Turbo Auto Timer buttons Fan speed buttons Locking button Select the required fan speed Select the required timer time Press the locking button Press the locking button again to unlock. pressing and holding down the on/off button (A) on the device. Note: When you operate the remote control, the air quality indicator (E) lights up for approx.
- Page 15 F, see page 34) The front panel is hooked in at the bottom in two places, and kept shut with 4 magnets. Open the front panel from the top and hold ( ), pivot downwards ( ) and take off ( ). using the recessed grips provided and turn it anti-clockwise ( ).
- Page 16 smartphone/tablet (iOS /Android). Air quality indicator Quiet button Press and hold down the Quiet button (D) until the air quality indicator (E) flashes The WLAN is enabled when the air quality indicator (E) flashes blue The WLAN is disabled when the air quality indicator (E) flashes white. Press and hold down the Quiet button (D), plug in the power cable and continue to hold down the Quiet button (D) until the air quality indicator (E) flashes pink The WLAN is reset to factory settings.
- Page 17 F, page 34) lights up. • Clean the control panel with a dry, lint-free cloth. • Clean the openings for the air quality sensor (L) and the dust sensor (M page 32) with a vacuum cleaner. cartridge (" " page 38). •...
- Page 18 Make sure that the power cable is not damaged in any way. Check both ends of the power cable. Make sure that these are plugged in and that the (page 30). cartridge is inserted. in place with all 3 tabs and is fully locked , page 30).
- Page 19 on/off button (A, page 32). Disable the Quiet function by pressing the Quiet button (D, page 34). Wait until the calibration process (see , page 32) has been completed (this may take a few minutes) Clean the openings for the air quality sensor L, dust sensor M (page 32), the air intake ducts and the interior of the air located) with a vacuum cleaner.
- Page 20 Place the device on an even surface. Use the fan speed button (B, page 33) to set a lower fan speed ( , page 33). Clean the relevant section on the control panel (J, page 32)! The display intensity automatically adapts to its surroundings.
- Page 21 Power supply 200-240V 50/60Hz / 100-120V 50/60Hz Power consumption 90W (200-240V) / 75W (100-120V) Suitable for rooms 50 to 70 m² * Air flow rate (max.) 600 m³/h Dimensions (L × W × H) 468 × 275 × 668 mm Weight 15 kg 56,6 dB(A)
- Page 22 The company Krug + Priester has the • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2015 • Energy management system according to DIN EN ISO 50001:2018 IDEAL provides a warranty for this device from the date of purchase. •...
- Page 23 This machine is GS-tested and conforms to the following EC guidelines: • 2014/35/EU for electrical safety • 2014/30/EU for electromagnetic compatibility. • 2011/65/EU, 2015/863/EU RoHS. machine. Subject to technical changes. - Herewith we declare that Made in Germany Made in Germany - complies with the following provisons applying to it Low voltage directive RoHS directive...
- Page 24 Supplier‘s Declara on of Conformity 47 CFR § 2.1077 Compliance Informa on This device complies with part 15 of the FCC Rules. Opera on is subject to the following two condi ons: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera on.
- Page 25 Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) www.krug-priester.com 9700285 01-2018 09.02.2022 zm...
