Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
!
CAUTION
Unit can NOT be installed behind a closed cabinet
door.

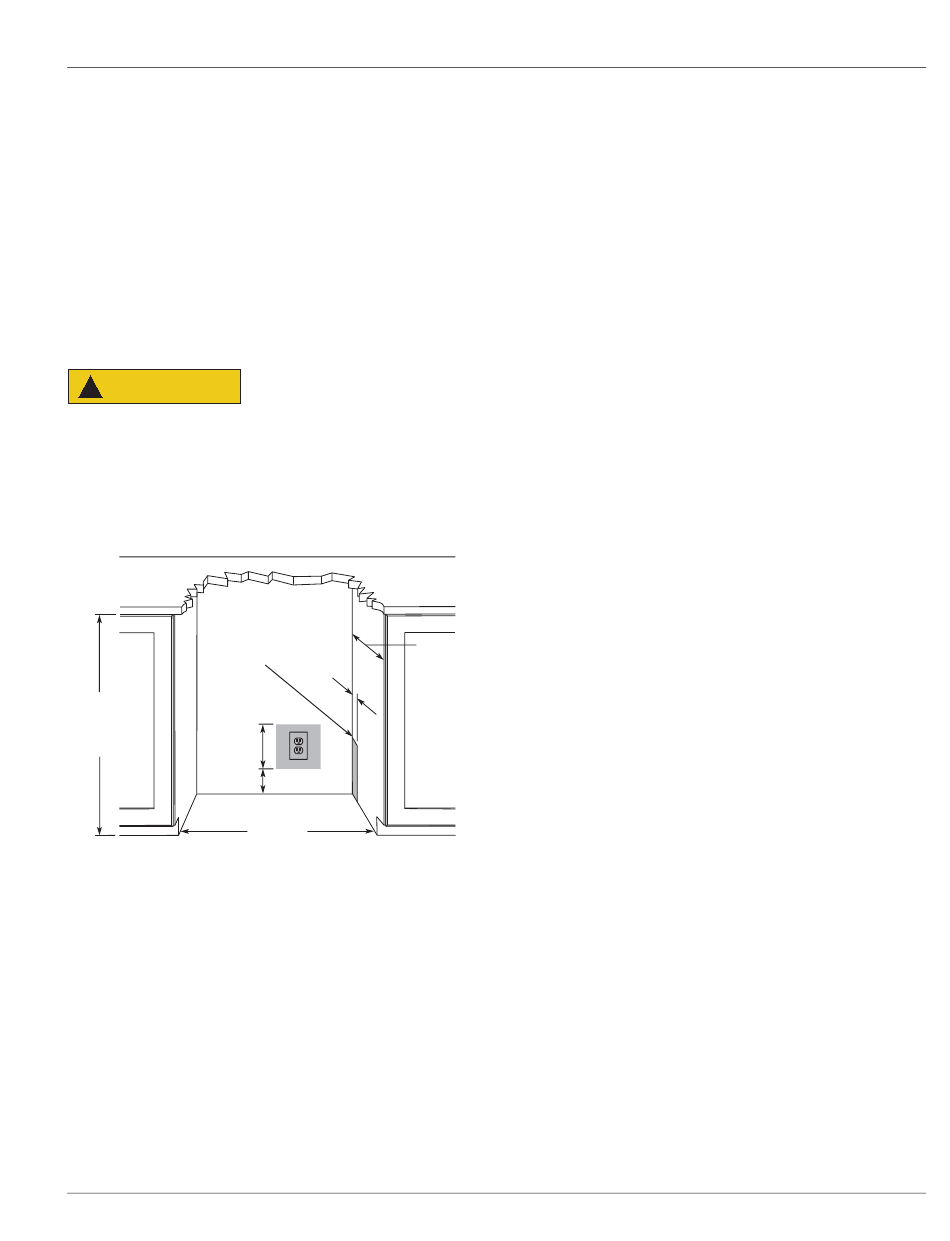

CUTOUT DIMENSIONS
Preferred location
for electrical
outlet is in
adjacent
cabinet.
32"
(813 mm)
to
33"
7"
(838 mm)
(178 mm)
4"
(102 mm)
24"
5/8"
(610 mm)
(16 mm)
24-1/4"
(616 mm)
8
Cutout Dimensions 1
