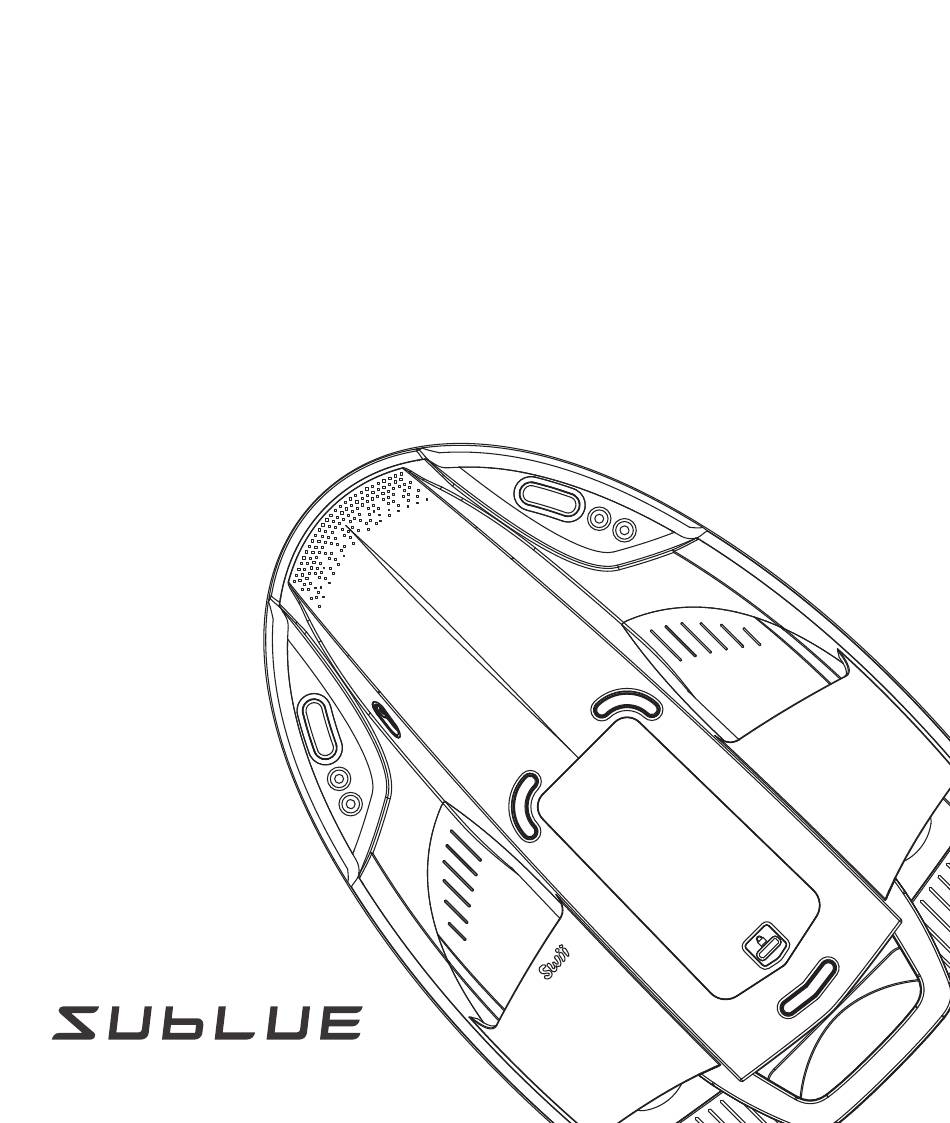

- Page 1 SUBLUE Swii Electronic Kickboard USER MANUAL Please read this user manual carefully before using the device and keep this user guide in safe place...
-
Page 3: Table Of Contents
Battery Monitoring and Replacement Operating Position Cleaning Maintenance and Storage Common Faults and Troubleshooting Safety Specifications Read and understand the user manual and all other safety instructions before using this equipment. Symbol Explanation： Notes （ Detailed explanations） ©2019 SUBLUE Copyright Important Notes... -
Page 4: Product Overview
Brief introduction Swii is a smart powered kickboard with strong buoyancy, excellent power and portability developed by Sublue for adults and children above 6 years old. Swii uses a built-in dual propeller system that can provide 5kgf thrust. Taking into account ergonomics and scientific allocation of weight and buoyancy, Swii could provide stable and comfortable user experience. -
Page 5: Explore Swii
Explore Swii 1. Main switch 5. Buoyancy component 2. Start buttons at both sides 6. Back cover 3. status light 7. Propeller 4. Battery cover 8. Front cover... -
Page 6: Contents
Contents List of items Before using the device, please check whether the package contains the following items. For missing items, please contact Sublue or local distributor. Kickboard×1 Charging Stand×1 Adapter&Power Cord×1 Battery×1 Battery protection cover Instructions Document×4 Check for any exterior damage... -
Page 7: Battery And Charging
Battery and Charging Charging Charging steps Swii uses removable and rechargeable lithium battery. Before using it for the first time, please fully charge the battery to guarantee a successful debut. Socket Bottom Of The Charging Stand Adapter Charging Charging Stand & Battery Charging Finished Battery installation... -
Page 8: Switch On/Off And Propeller
Switch on and off and propeller Switch on/off Switch on After installing the battery, press and hold the power button for 1 second until the status light starts flashing. You can loosen your hand after the device is turned on normally. Switch off Press and hold the power button for more than 2 seconds. -
Page 9: Speed Switch
Speed Switch Switch via the main switch When the device is turned on, the user may press the main switch quickly to switch from high speed to low speed and vice versa. * The user may determine the speed by observing the flashing frequency of the status light. -
Page 10: Battery Monitoring And Replacement
Battery Monitoring and Replacement Battery monitoring Please observe the battery from time to time and determine the remaining battery from the color of the status light. Please return to the shore when the breathing light turns red, indicating that the battery is low. Battery replacement Keep dry Keep the device upright... -
Page 11: Operating Position
Operating Position Place Swii horizontally on the water surface. The user may lay upon the floater. Turn on the device and push the start buttons on both sides. The device will stop when one of the buttons are released. Main Switch Starting Switch Children and swim beginners must use this device wearing life vest or other safety equipment under the supervision of guardians. -
Page 12: Deep Cleaning
Cleaning Cleaning After using Swii in seawater or fresh water， please clean the device in time in the following steps： Clean all parts of the device by rinsing with fresh water or immersing in fresh water. Keep the device on, immerse the device in fresh water and push the start buttons on both sides. -
Page 13: Maintenance And Storage
Maintenance and Storage Maintenance 1. Please perform monthly checks to the device in case of corrosion due to the change in storage environment. No. Routine checks Methods Install the battery. Switch on and off the device in accordance to the user guide. Observe the status light Switch on/off to determine whether the device is normally switched on or off. -
Page 14: Common Faults And Troubleshooting
3. Clean the device according to the steps in or abnormal “Cleaning” and dry up the device for further rotation examination. 4. Contact SUBLUE or SUBLUE’s authorized after-sale service centers. Battery damage Contact SUBLUE or SUBLUE’s authorized or swollen battery after-sale service centers. - Page 15 1. Make sure that the battery is fully charged. 2. Switch on the device again. Abnormal 3. Contact SUBLUE or SUBLUE’s authorized status light after-sale service centers. 1. Uninstall the App and try downloading it and installing the App again.
-
Page 16: Safety
Safety Before using this product, please read the user guide thoroughly and learn about the water conditions that you are about to enter. The device should be used in appropriate waters and approved by the management authority. To ensure safety, users should wear life jackets or life-saving equipment under any circumstances. - Page 17 Unofficial or authorized maintenance personnel must not carry out repairs. Improper repair will cause damage to the product and Sublue assumesno responsibility for such damage. All unauthorized disassemble will be deemed as the consumer's wavering of the product warranty. The user shall bear all consequences.
- Page 18 Safety Explanations Do not use this product directly on the beach to prevent sand, shells or other debris from damaging the surface of the product and the inside of the device. The device will be damaged if sand or other foreign objects were carried inside the propeller.
-
Page 19: Specifications
Specifications Device specifications Size L550 × W375 × H135 mm 4550 g （with 98 Wh Standard Battery） 4900 g （with 158 Wh Option Battery） Weight Power 400 W High speed mode 2 Kn （1 m/s） Low speed mode1.2 Kn （0.6 m/s） * Speed 98 Wh: 30 min (average) 158 Wh: 45 min(average) -
Page 20: Motor Parameters
Specifications Stator Propeller Rotor Front cover Back cover Motor parameters Rated Voltage 14.8 V Power 230 W Motor Grade B Continuous running Maximum RPM 3800 rpm Battery Capacity Standard 6600 mAh / option 10670 mAh Nominal Voltage 14.8 V Energy Standard 98 Wh / option 158 Wh 5~40 ℃... -
Page 21: Status Light
Specifications Status Light Color 4 sets of colors ＞70% 40%~70% 10%~40% Battery Range When battery is lower than 10%, the status light turns red. High speed mode： Twice/s Flashing Frequency Low speed mode: Once/ Bluetooth Connection Blue, no flashing 1. Normal Update: Blue, flash twice/s Firmware Update 2. - Page 22 Specifications Color of the status light Battery Indicator ＞70% 40%-70% 10%-40% * The speed varies due to the user’s weight, clothing, and environment. * Theoretically, the product should be used on the water surface. The product shall not be used underwater and the maximum depth is 1m. * The endurance data derived from experiments.
