WARNING
• Failure to position the logs in accordance
with these diagrams or failure to use only logs
specifically approved with this appliance may
result in property damage or personal injury.
• The logs are fragile and should be handled with care.
PHAZER™ logs and glowing embers, exclusive to
Napoleon, provide a unique and realistic glowing effect
that is different in every installation. Take the time to
carefully position the glowing embers for a maximum
glowing effect. Log colours may vary. During the initial
use of the appliance, the colours will become more
uniform as colour pigments burn in during the heat-
activated curing process.
1
A C
B
2
1. Place Luminous™ Log #1 on Venturi #1.
Ensure the locating hole is over locating stud D.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada · 1(866)820-8686 · www.napoleon.com
BLK-OLKTLV62L Birch-Oak Luminous

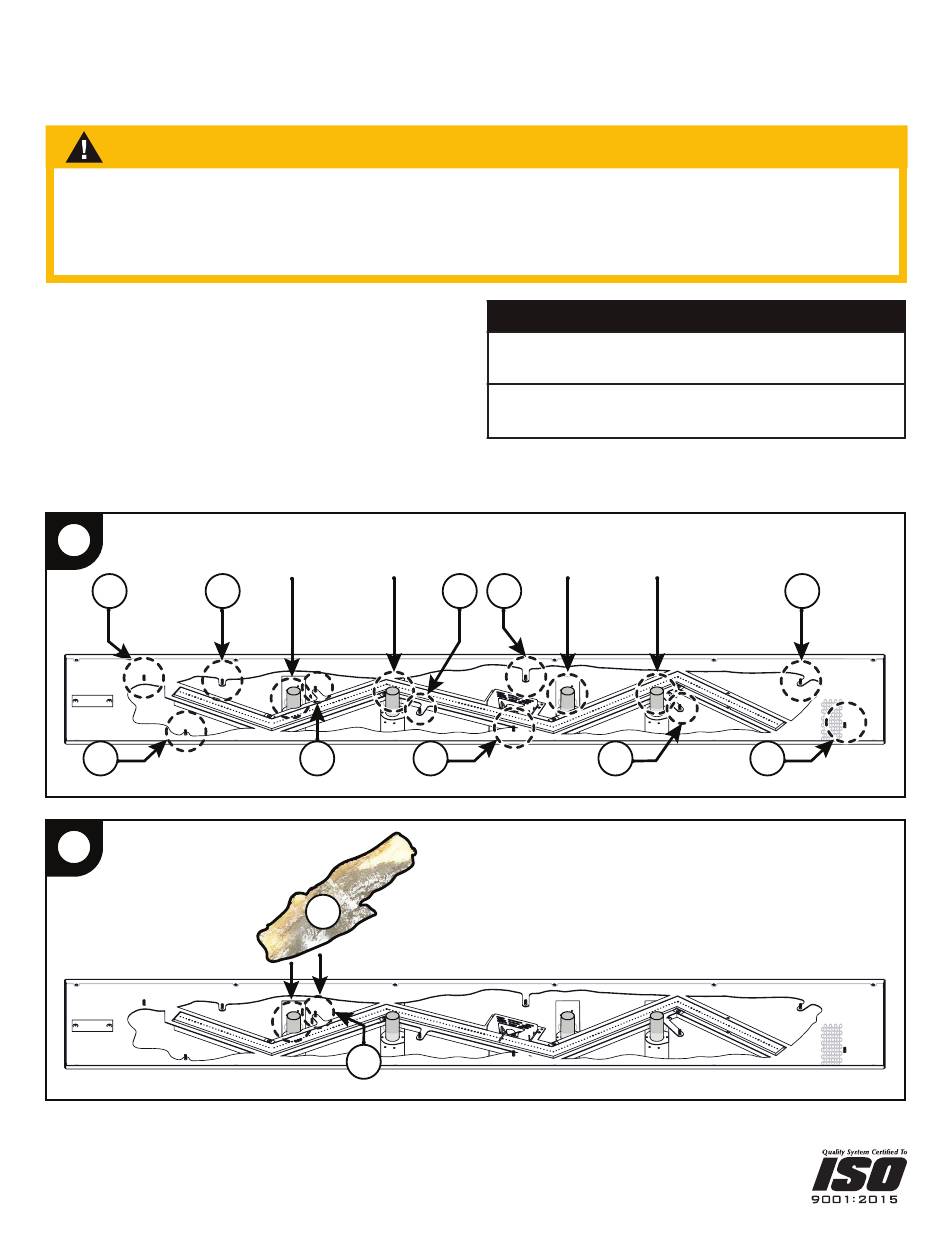

Log Placement for Model TLV62L
Burner Overview
Venturi #1 Venturi #2
D
1
D
• Logs must be placed in their exact location in the
appliance. Do not modify the proper log positions,
since appliance may not function properly and
delayed ignition may occur.
note:
• Care must be taken when installing Luminous™
logs over the Venturi.
• Luminous™ logs must fit over the Venturis and sit
flat on the media tray.
Venturi #3 Venturi #4
F E
G
TM
H J
W415-4179 | B-0 | 06.24.24
I
