Dell DA200 Manual

Symbols

NOTE: A NOTE indicates important information that helps you make better use of your computer.

A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

A WARNING indicates a potential for property damage, personal injury, or death.

Dell Adapter - USB-C to HDMI/VGA/Ethernet/USB 3 0 DA200

Specifications

Upstream Input

USB-C

Downstream Outputs

VGA
HDMI
Gigabit Ethernet
USB 3.0

Maximum Resolution/Refresh Rate

Single display: 1 x HDMI; 1920 x 1080 /60 Hz
Single display: 1 x VGA; 1920 x 1080 /60 Hz

* Resolution support is also dependent on the resolutions declared by your display's EDID.

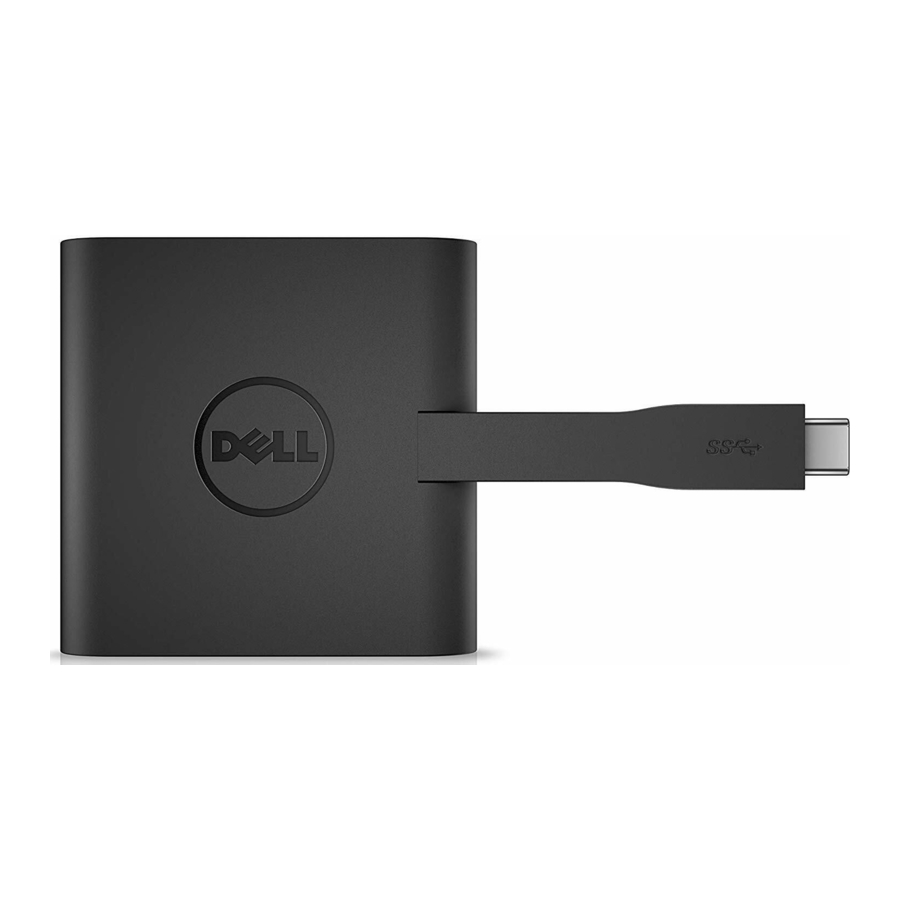

Product Overview

Recommended System Requirements

Hardware

Dual Core Intel CPU 2 GHz or better
USB-C port

Operating System

Windows 7, 8, 8.1, 10 (32/64 bits)

Operating Temperature

Maximum operating temperature is 40°C

Troubleshooting

Troubleshooting	Suggested Solutions
Which devices does this unit work with	The DA200 Adapter is designed for Dell computers.
Can this unit charge my computer	No. DA200 does not support the Power Delivery specification, therefore it cannot provide power to charge a computer.
Where can I download drivers for the product	Drivers are not required for DA200. If your DA200 is not functioning properly, please contact Dell customer service.
There is no video on the monitor attached to the DA200	Check the video connection cables. Unplug the device, wait 10 seconds, and then re connect.
The video on the attached monitor is distorted or corrupted	Check video connection cables Check the video resolution under Control Panel\All Control Panel Items\Display\Screen Resolution
The video on the attached monitor is not displaying in extended mode	Change the settings by either: Configuring under Control Panel\All Control Panel Items\ Display\Screen Resolution Switch by cycling the "Windows Key +P"
HDCP content is not able to display on the attached monitor	HDCP content support is currently unavailable
USB ports are not functioning on the product	Unplug the device, wait 10 seconds and then reconnect. Update to the latest USB 3 0 host controller driver.
Laptop failed to boot with this unit connected	Remove all USB devices connected to the adapter; some unqualified boot devices may cause lock up at boot screen.
There is a warning that says my computer does not support this device	Some features of USB-C are not yet fully supported by Windows 7, therefore it sometimes does not understand negotiation messages sent by DA200. Please be assured that the warning has no impact on the functionality of DA200.
