2
4
.
GHZ
BIND
ANTENNA
BIND led
(15cm)
SIDE
SPECIFICATIONS
• Size:
48*26*15mm
• Weight:
11g
• Channels:
8
• Power Supply:
4.5-8.4V
• Frequency Range:
2400-2483.5GHz
• Signal Format:
D8 / D16v1 / SFHSS
• Output Format:
PWM
• Support Return:
Support Return RSSI
• Control Distance:
1km+
• Antenna Length:
15cm
B
N
E
H
D
I
D M
T
O
1. Turn ON your transmitter and select the desired protocol.
2. Enter bind mode on the receiver. Press and hold the [BIND]
button while powering on the receiver.
Receiver
D8
will cycle
D16
between
S-FHSS
protocols.
3. When the flash pattern matches the transmitter protocol,
press BIND on the transmitter. The light will flash rapidly
then return to solid.
4. After binding, cycle the power to the receiver.
*Does not support frsky transmitter, only for MPM radio.
RSSI OUTPUT
This receiver has a total of 8 PWM channels + 9 SBUS Channels
(Sbus has 8 control channels + 1 RSSI channel). Channels 1-8 are
controlled by the remote controller, the 9th channel is the signal
strength RSSI value output by the receiver, which can be read by
various flight controllers and sent to the OSD to display signal
strength in the FPV video feed.
For more information visit: https://www.multi-module.org/using-the-module/frequency-tuning
TOP
48mm
2.4GHz V2
CH8
CH7
CH6
CH5
CH4

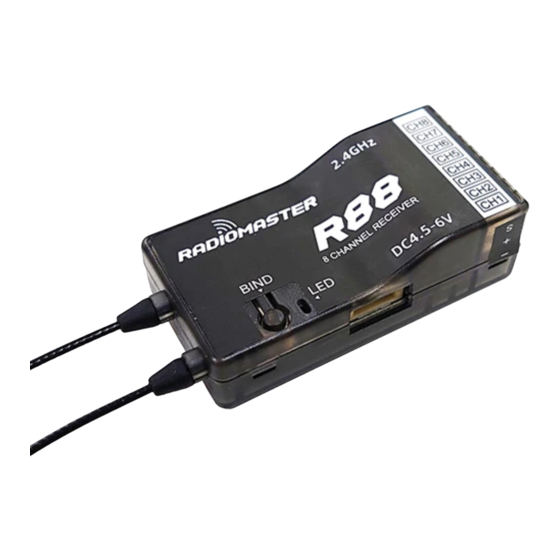

8 CHANNEL RECEIVER
CH3
LED
CH2
DC4.5-8.4V
CH1
-
+ sbus nc
FAIL-SAFE PROTECTION
1. Press the [BIND] button once within 10 seconds of the receiver being
powered ON, and the receiver will save all the current channel values
of the remote control as the fail-safe value.
2. 10 seconds after the receiver is powered ON, the [BIND] button
function will be disabled to prevent accidental changes to to the
fail-safe settings while preparing the model for flight.
*Note: D8 and D16 compatible receivers MUST be frequency
fine tuned prior to flight.
Once the radio is bound to the receiver:
Go to the RF Freq. fine tune option in Model Setup.
1. Lower the value until the radio loses the connection with the receiver.
• Record the value (TUNE_MIN).
2. Raise the value so that the connection is restored, then continue to
raise it until the radio loses the connection with the receiver again.
• Record the value (TUNE_MAX).
3. Calculate the median between the two values
• (TUNE_MIN + TUNE_MAX) / 2 = TUNE_MEDIAN
4. Set RF Freq. fine tune to the median value
• Example: Connection is lost at -73 and +35; the median is -19:
*Once the Fine Tuning value is known, it can be used for all models
that use the same protocol.
R88 Receiver User Manual
CH8
CH7
CH6
CH5
CH4
CH3
CH2
CH1
11
GRAMS
Including
2 Antenna

Advertisement

loading
Need help?

Need help?

Do you have a question about the R88 and is the answer not in the manual?

Questions and answers

Albert Herlicka
July 31, 2025

When I place the R88 in a different model do I need to reprogram the receiver or will it work straight up swapping into a different plane?

Bruce
May 23, 2025

Will the Radio Master R88 receiver bind with a Spektrum NX8 transmitter? Will the Radio Master R88 recognize DSMX protocols?
