3B SCIENTIFIC PHYSICS 1025439 Instruction Manual

3B SCIENTIFIC ® PHYSICS
Instruction manual
11/24 HJB
1. Safety instructions
The heating element conforms to all safety regu-
lations for electrical measuring, control, monitor-
ing and laboratory equipment, as specified un-
der DIN EN 61010, Section 1. It is intended for
operation in a dry environment, suitable for the
operation of electrical equipment and systems.
Safe operation of the equipment is guaranteed,
provided it is used correctly. However, there is no
guarantee of safety if the equipment is used in an
improper or careless manner.
If it may be assumed for any reason that non-haz-
ardous operation will not be possible (e.g. visible
damage), the equipment should be switched off
im-mediately and secured against any unin-
tended use.
•
Use this equipment in dry rooms only.
The equipment should only be con-
nected to a suitable power supply. Do
not plug the lead straight into the mains
•
To ensure safe operation of this equipment,
use the recommended DC power supply to
supply power.
•
Do not pull on the connecting lead to the
equipment. In particular, you must not pull
the connecting lead out of the handle.
Heating Element, 12 V 1025439






The heating rod becomes hot during op-
eration and there is a risk of burns!
•
Do not touch the equipment during operation,
or if necessary, touch only the handle.
•
Do not use the equipment to heat liquids.
•
Allow the equipment to cool when the exper-
iment is finished.
2. Description
The heating element is for electrically heating the
calorimeter cylinder from set 1025440 and the
calorimeter cylinder 1025441.
The equipment consists of a sheathed heating
rod which is attached to a handle via a connecting
sleeve. It also has a connecting lead terminating
in 4-mm safety sockets.

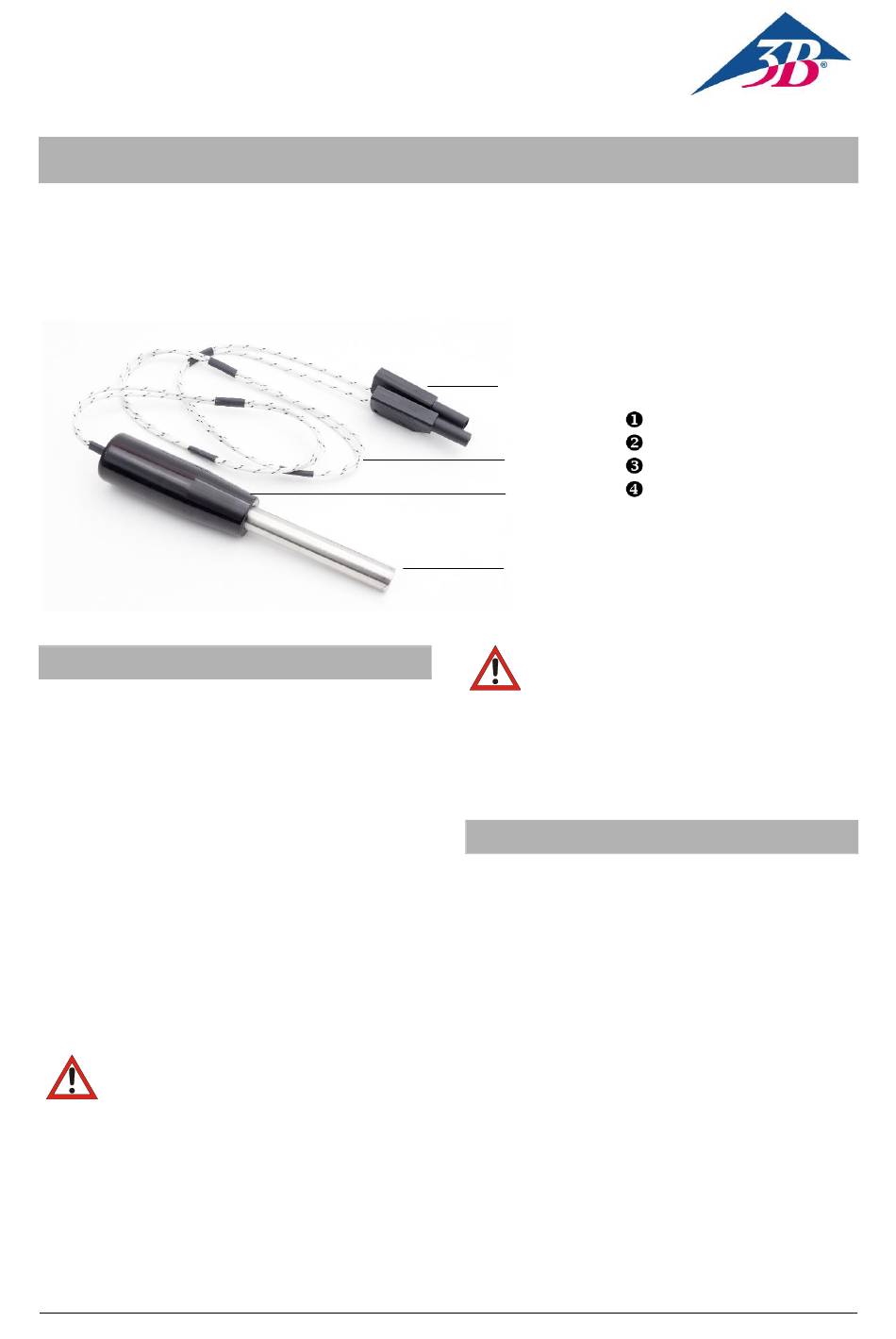

1
Sheathed heating rod
Handle
Connecting lead
4-mm safety plugs
