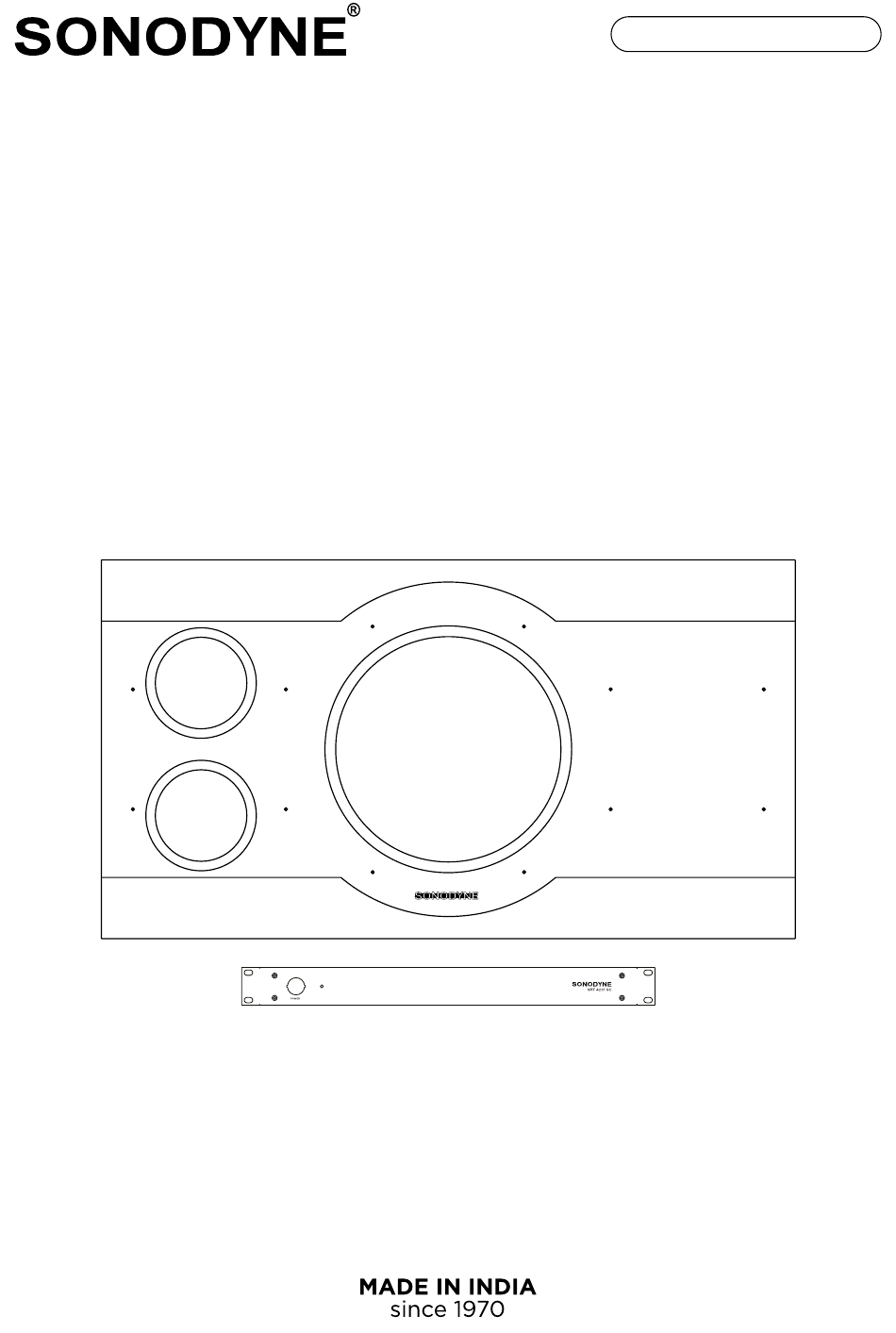

- Page 1 A LEGACY OF TRUE SOUND A LEGACY OF TRUE SOUND SRT 4201, SRT 4201 SC SRT 4201, SRT 4201 SC passive subwoofer and controller I owners manual...
- Page 2 INTRODUCTION The SRT 4201 can be mounted either horizontally or vertically. The SRT 4201 is a matching subwoofer for the SRT 4101, 4102 screen The dimensions are shown in the figure below, placed in vertical position. speakers. It is a shallow-profile passive subwoofer to be used in conjunction with its dedicated active controller, SRT 4201 SC.
-
Page 3: Rack Mounting
To unpack the unit, open the carton by cutting along the edge of the flaps. Push the flaps wide open. Inside you will find • 1 x SRT 4201 SC controller wrapped in a protective bag and resting on buffers •... -
Page 4: Front Panel
Connect these to the inputs of your amplifier Pin connections are: 1: ground 2: hot or positive 3: cold or negative SRT 4201 SC • page 5 SRT 4201 SC • page 6... - Page 5 Connection of 4 x SRT 4201 subwoofer and controller along with a 4 channel • Connect the SUB output of the AV processor to the input (XLR female connector) amplifier is shown in the connection diagram. of the SRT 4201 SC controller using balanced cable which is a 2-core screened cable with XLR connectors on either end.
- Page 6 Claims under the warranty will be USEABLE FREQ. RESP. (-10dB) 35Hz ~ crossover frequency considered only if the product is returned to an authorised SONODYNE Service Centre IMPEDANCE 8Ω directly, or through an authorized reseller.
- Page 7 If you have anything less than a 5 star experience, please contact us at response@sonodyne.com and we will make it right SONODYNE, India • H.O.: 98 NB Block E New Alipore, Kolkata 700053 sonodyneofficial +91 9830855260 sonodyneofficial response@sonodyne.com...
