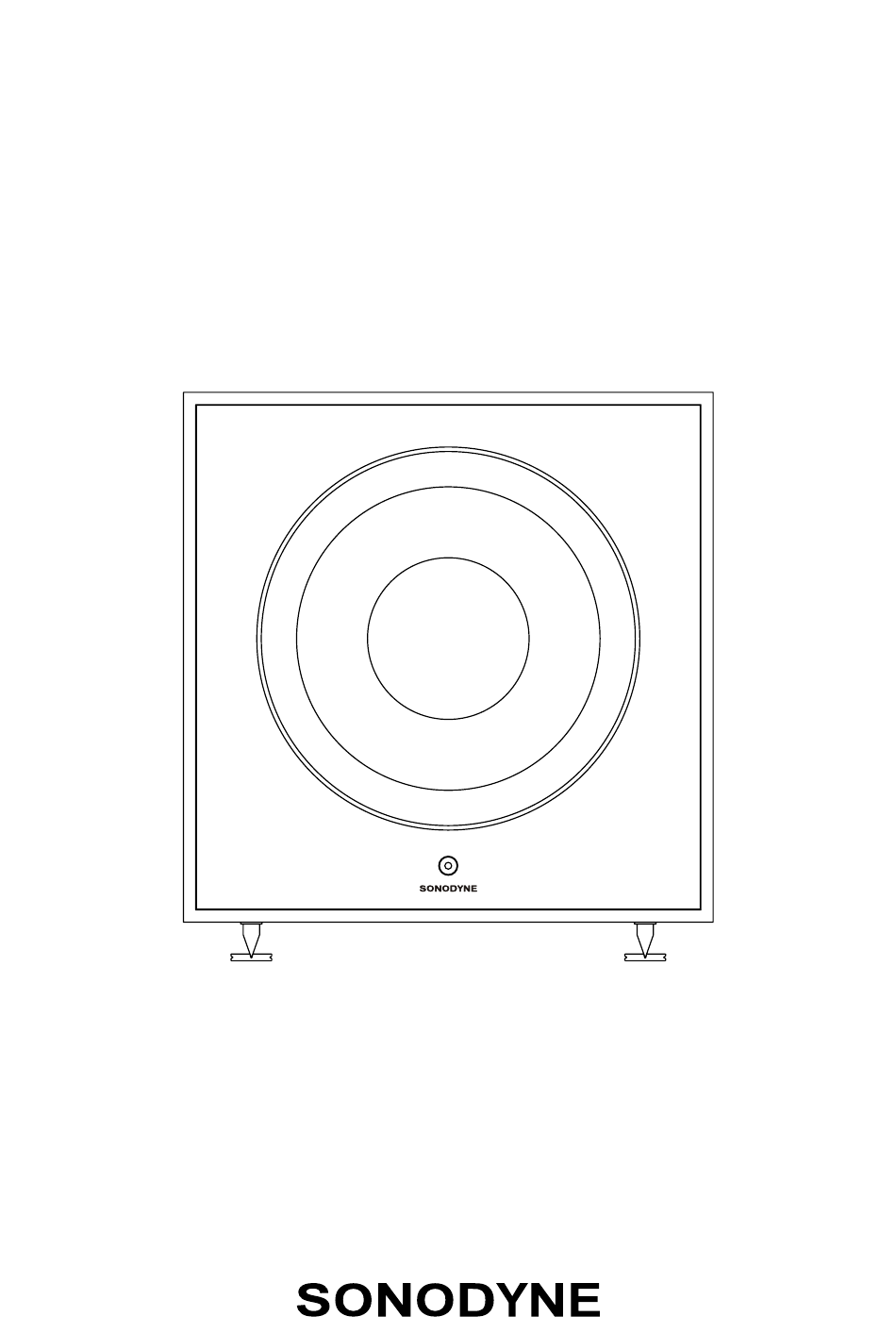

- Page 1 RoarR D Series powered subwoofer • owners manual...
-
Page 2: Table Of Contents
Page 1 UNPACKING Page 1 FIG. 1: CONTROLS Page 2 AMPLIFIER FUNCTIONS & CONTROLS Page 3 FIG. 2: CONNECTIONS Page 4 CONNECTIONS & OPERATIONS Page 5 PLACEMENT OF SUBWOOFER Page 6 TROUBLESHOOTING Page 7 SPECIFICATIONS Page 8 RoarR D Series... - Page 3 STATUTORY INFORMATION Thank you for selecting a Sonodyne Roarr subwoofer. Please read through this owner’s manual carefully for details on product features and operation. Please unpack with care and retain the packaging for future use. Please do not put this unit near any source of radiation/ heat/ directly under sunlight or in a dirty place.
-
Page 4: Introduction
Please contact your dealer immediately if any of the above is absent and/or if the components appear damaged upon removal from the carton. Please retain the packing and carton in case you need to transport your system again. RoarR D Series • page 1... - Page 5 INPUT 230V AC,50Hz, AC FUSE T 2.5A, 250V LEVEL PHASE RoarR-1312 D FREQUENCY POWERED SUBWOOFER 50Hz 150Hz /LFE LEFT INPUT RIGHT INPUT LFE MAINS OVER-VOLTAGE PROTECT INPUT 230V AC,50Hz, AC FUSE T 4.0A, 250V POWER RoarR D Series • page 2...
-
Page 6: Amplifier Functions & Controls
Also ensure that the earth pin of the outlet is not directly connected to equipment like computers, air-conditioners, etc which can cause humming noise. 8. POWER SWITCH: This is a rocker type switch that turns on power to the system RoarR D Series • page 3... - Page 7 RoarR D Series • page 4...
-
Page 8: Connections & Operations
(It would be a good idea to find out the low frequency limit of your main speakers. This should allow you to have a more educated approach towards setting the limiting frequency of your subwoofer). RoarR D Series • page 5... -
Page 9: Placement Of Subwoofer
Hence, experiment with the placement and monitor its bass while sitting at your favorite listening spot. It may take a while before you finally arrive at the optimum location. IN A CORNER AGAINST A BACK WALL AGAINST A SIDE WALL RoarR D Series • page 6... -
Page 10: Troubleshooting
Manufacturing defects have thus been minimized. However, in the unlikely event that practical inconveniences arise, the following should assist to remedy the same. If your concern is not cited below, please contact your local Sonodyne dealer or a Sonodyne authorised service centre. PROBLEM... -
Page 11: Specifications
• specifications • ROARR 1108-D ROARR 1210-D ROARR 1312-D DESIGN Front firing powered subwoofer Front firing powered subwoofer Front firing powered subwoofer vented vented vented ENCLOSURE TRANSDUCER COMPLEMENTS 1 x 8'' high excursion subwoofer 1 x 10'' high excursion subwoofer 1 x 12'' high excursion subwoofer AMPLIFIER CLASS Class D... - Page 12 SONODYNE, India • H.O.: 98 NB Block E New Alipore, Kolkata 700053 sonodyneofficial SonodyneMusic sonodyneofficial +91 9830855260 response@sonodyne.com www.sonodyne.com...
