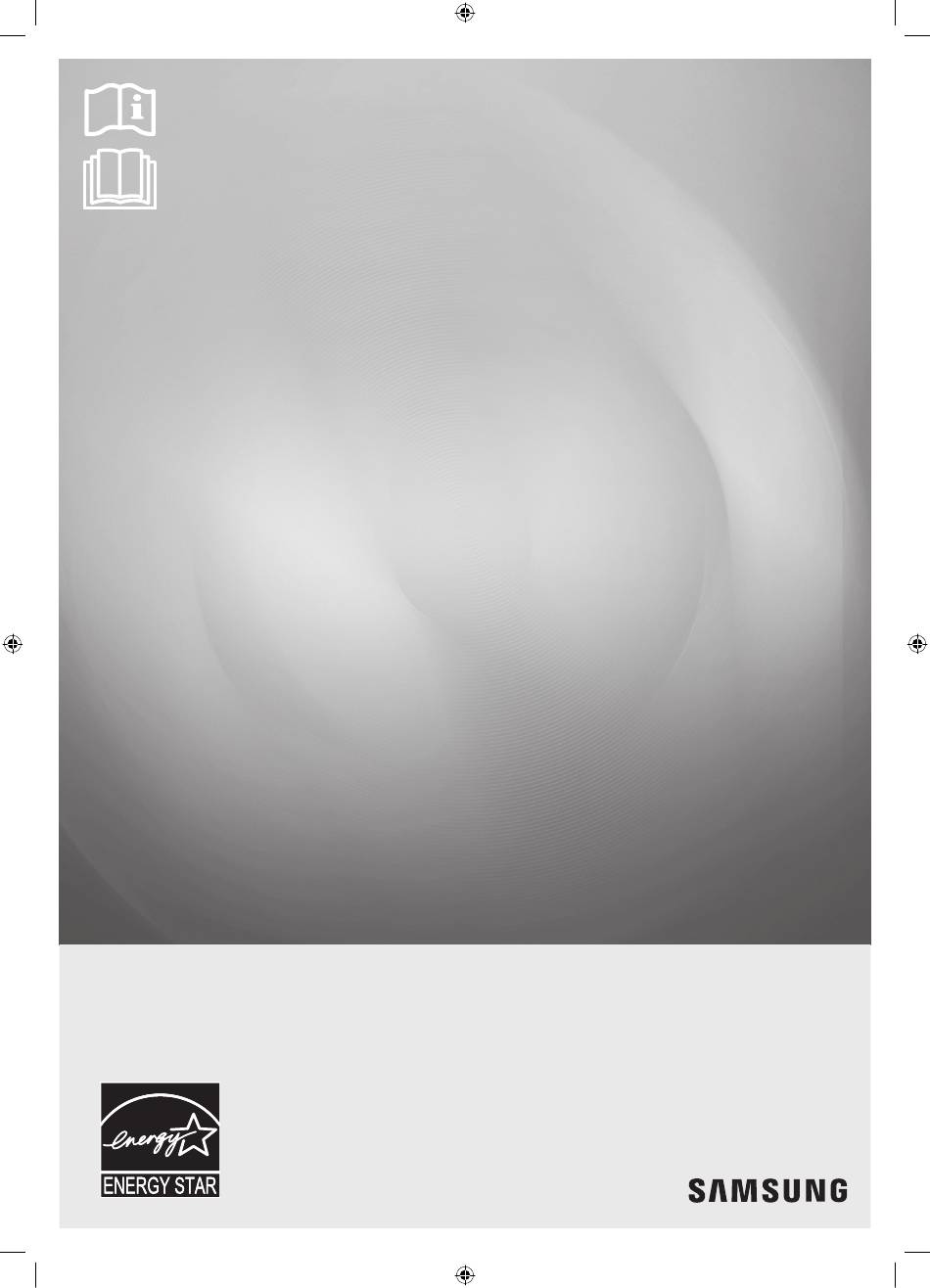

- Page 1 WF56H9100A* Washing Machine user manual Imagine the possibilities Thank you for purchasing this Samsung product. (USER)WF56H9100-03404A-13_EN.indd 1 2018/8/28 15:06:24...
-
Page 2: Table Of Contents
contents installing your washer Unpacking your washer Overview of your washer Electrical Grounding Water Drain facility Flooring Location considerations Alcove or closet installation Undercounter installation (washer only) With optional pedestal base or stacking kit Important note to installer Installation flow chart operating instructions Loading your washer Washing clothes: Basic Instructions... -
Page 3: Safety Information
Congratulations on your new Samsung washer. This manual contains important information on the installation, use, and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features. -
Page 4: California Proposition 65 Warning
safety information CALIFOrnIA PrOPOSITIOn 65 WArnInG warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Important safety precautions warning: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: 1. Read all instructions before using the appliance. 2. - Page 5 SEVErE WArnInG SIGnS FOr InSTALLATIOn WARNING Plug the power cord into an AC 120 V / 60 Hz / 12 A wall socket or higher and use the socket for this appliance only. In addition, do not use an extension cord. - Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.
- Page 6 safety information When the power plug or power cord is damaged, contact your nearest service center. CAUTIOn SIGnS FOr InSTALLATIOn CAUTION This appliance should be positioned in such a way that it is accessible to the power plug. - Failing to do so may result in electric shock or fire due to electric leakage. Install your appliance on a level and hard floor that can support its weight.
- Page 7 Do not touch the power plug with wet hands. - This may result in electric shock. Do not turn the appliance off by unplugging the power plug while an operation is in progress. - Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire.
- Page 8 The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
- Page 9 Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fire, problems with the product, or injury. Do not operate the appliance with wet hands.
- Page 10 safety information Do not use dry cleaning detergent directly on clothing and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent. - This may result in spontaneous combustion or ignition due to heat and oxidation of the oil in the detergent.
-
Page 11: Installing Your Washer
(sold separately) • If you lose an accessory and want to purchase a replacement, contact the Samsung service center (1-800-SAMSUNG(1-800-726-7864)). • The design of the parts and accessories may differ from the pictures above. Their design is subject to change without notice for product improvement. -
Page 12: Basic Location Requirements
installing your washer BASIC LOCATIOn rEQUIrEmEnTS Electrical • 120 Volt 60 Hz 12 AMP fuse or circuit breaker. • An individual branch circuit serving only your washer is recommended. • Your washer is equipped with a power cord. NEVER USE AN EXTENSION CORD. caution Grounding ELECTrICAL GrOUnDInG IS rEQUIrED FOr THIS APPLIAnCE. -
Page 13: Drain Facility
Drain facility If you have a standpipe, the recommended height of the standpipe is 18 in/46 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. You can also drain the washer into a wash basin or laundry tub. -
Page 14: With Optional Pedestal Base Or Stacking Kit
installing your washer With optional pedestal base or stacking kit required Dimensions for Installation With Pedestal (model no : WE302*) 58.3 in. (148 cm) to clear open door 42.6 in. (108.3cm) 53.7 in. (136.5 cm) 5.9 in. 32.5 in. 30 in. (15 cm) (82.6 cm) (76.2 cm) -
Page 15: Important Note To Installer
ImPOrTAnT nOTE TO InSTALLEr Please read the following instructions carefully before installing the washer. These instructions should be retained for future reference. We recommend you hire a professional to install this washer. Installation flow chart Selecting a Removing the shipping Connecting the water location and the drain... - Page 16 installing your washer step 3 Installing your Washer To connect the water hoses to the faucets: 1. Connect one end of each water hose to the Hot or Cold tap. 2. Turn the fittings by hand until they are tight, and then tighten them by just an additional two-thirds of a turn with a spanner.
- Page 17 12. Connect the other ends of the water hoses to the corresponding inlets on the rear of the machine as specified. Make sure the hot water hose is connected to the hot inlet, and the cold water hose to the cold inlet. 13.
-
Page 18: Step 4 Calibration Mode
4 Calibration mode Your Samsung washing machine automatically detects the weight of the laundry. For more accurate weight detection, please run the Calibration Mode after the installation. To run the Calibration Mode, follow these steps: 1. -
Page 19: Operating Instructions
operating instructions To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. warning LOADInG yOUr WASHEr • Fill the tub with dry, unfolded clothes evenly around in order to enhance washing efficiency and prevent excess wear, or wrinkling of the load. -
Page 20: Washing A Load Of Laundry
washing a load of laundry OVErVIEW OF THE COnTrOL PAnEL Select the appropriate cycle for the type of load. This will determine the tumble pattern and spin speed for the cycle. To minimize wrinkling of laundry, select the Perm Press cycle. DEEP STEAm - For heavily soiled, colorfast garments, this cycle provides a high washing temperature and steam, and is effective for cleaning stains. -
Page 21: Digital Display
DELICATES - For sheer fabrics, bras, lingerie silk, and other handwash-only fabrics. For best results, use liquid detergent. ACTIVE WEAr - Use this cycle to wash exercise wear such as sports jerseys, training pants, shirts/tops and other performance clothing. This cycle provides effective soil removal with gentle action for special fabric care. -
Page 22: Child Lock
washing a load of laundry Press these buttons to select different cycle options. Pre Wash - To use this feature, add detergent to the pre wash section of the detergent compartment. When turned on, the washer fills with cold water and detergent, tumbles, then drains and advances to the selected wash cycle. -
Page 23: Spin Only
Deactivating the Child Lock function Press and hold both the soil level and spin buttons simultaneously for approximately 6 seconds. • When you deactivate the Child Lock function, the door is unlocked and the “Child Lock ” is turned off. • The Child Lock function prevents children or the infirm from accidently operating the washer and injuring themselves. -
Page 24: My Cycle
Smart Care app. Downloading the Smart Care app • Download the Samsung Laundry App into your mobile phone from the ‘Android’ market or ‘Apple App store’. (search word : samsung smart washer) Precautions when using Smart Care: •... -
Page 25: Washing Clothes Using The Cycle Selector
Washing clothes using the cycle selector Your new washing machine makes washing clothes easy using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Turn on your sink’s water tap. -
Page 26: Using Steam Wash
washing a load of laundry USInG STEAm WASH If you select steam wash, the steam acts at the most effective times for the detected amount of laundry, maximizing the effect of the steam, increasing the wash temperature, enhancing the Soak effect, and improving wash performance. -
Page 27: Detergent Use
DETErGEnT USE Your Washer is designed to use high efficiency (HE) detergents. • For best cleaning results, use a high efficiency detergents such as Tide HE, Wisk HE, Cheer HE, or Gain HE*. High efficiency detergents contain suds suppressors that reduce or eliminate suds. When fewer suds are produced, the load tumbles more efficiently and cleaning is maximized. -
Page 28: Pre Wash Compartment
washing a load of laundry Pre wash compartment When using the Pre Wash option, add detergent to both the Pre Wash compartment and the detergent compartment. The washer will automatically dispense the detergent during Pre Wash. • If you use a high efficiency (HE) detergent, add 1/3 of the recommended amount to the Pre Wash compartment and 2/3 of the recommended amount to the detergent compartment. -
Page 29: Maintaining Your Washer
maintaining your washer Certain internal parts are intentionally not grounded and may present a risk electric shock only during servicing. Service personnel – Do not contact the following parts while the appliance is energized: warning Control board, heat sink, motor, inlet valve and pump. CLEAnInG THE ExTErIOr Turn off the water faucets after finishing the day’s washing. -
Page 30: Cleaning The Debris Filter
maintaining your washer CLEAnInG THE DEBrIS FILTEr We recommend cleaning the debris filter when water does not drain well or the “5E” error message is displayed. 1. Power off and unplug the washer from the electrical outlet. 2. Gently press the top area of the filter cover to open. 3. -
Page 31: Cleaning The Door Seal/Gasket
CLEAnInG THE DOOr SEAL/GASkET 1. Open the washer door and remove any clothing or items from the washer. 2. Check if there are any foreign substances on the grey seal/ gasket between the lid and the drum. To check this, turn the seal/gasket out. seal/gasket 3. -
Page 32: Self Clean
maintaining your washer SELF CLEAn+ Self Clean+ is a self-cleaning cycle that removes mold that may occur inside the washing machine. 1. Press the power button. 2. Press the self clean+ button. • Once the Self Clean+ button is pressed, the only function that can be set is Delay End. -
Page 33: Troubleshooting
troubleshooting CHECk THESE SOLUTIOnS IF yOUr WASHEr… problem solution • Make sure the door is firmly closed. Will not start. • Make sure your washer is plugged in. • Make sure the water source faucets are open. • Press the Power button to turn the Washer on. • Press the Start/Pause button to start the cycle. - Page 34 troubleshooting problem solution Fills with the wrong • Turn both faucets on fully. temperature water. • Make sure the temperature selection is correct. • Make sure the hoses are connected to the correct faucets. Flush water lines. • Check the water heater. It should be set to deliver a minimum 120 °F (49 °C) hot water at the tap.
-
Page 35: Information Codes
InFOrmATIOn CODES The washer may display information codes to help you better understand what is occurring with your washer. error code meaning & solution Unbalanced load prevented your washer from spinning. Redistribute the load, press the Start/Pause button. The door is open when the washer is running. Close the door tightly and restart the cycle. - Page 36 Too many suds are detected during the wash session. The unit is put on hold until the amount of suds have been reduced. When suds have been reduces, the washer will re-start. For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG) 36_ English (USER)WF56H9100-03404A-13_EN.indd 36...
-
Page 37: Fabric Care Chart
appendix FABrIC CArE CHArT The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. -
Page 38: Cycle Chart
appendix CyCLE CHArT Use this chart to set the best cycle and option for you laundry. Model: WF56H9100A* ( • : factory setting , : selectable ) • functions Temp. Spin Soil Level cycle normal • • • • • •... -
Page 39: Helping The Environment
HELPInG THE EnVIrOnmEnT • Your washer is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance. -
Page 40: Limited Warranty (U.s.a)
Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service. - Page 41 SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, firm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc.
- Page 42 SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
- Page 43 NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER...
- Page 44 1-844-SAM-PAYS (726-7297) www.samsung.com/ca_fr/support (French) Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty. Please contact your Samsung call agent for help with any of these issues. Code No. DC68-03404A-13_EN (USER)WF56H9100-03404A-13_EN.indd 44 2018/8/28 15:06:37...
