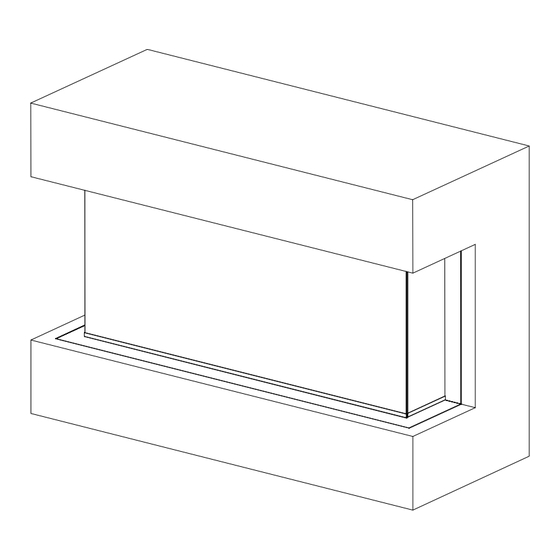

THREE SIDED ELECTRIC FIREPLACE
TS36
TS42
TS50
TS60
TS72
OWNERS MANUAL
36"/42"/50"/60"/72" Recessed Electric Fireplace
AC 110-120V 60Hz 1500W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS36 and is the answer not in the manual?

Questions and answers

Related Manuals for Valuxhome TS36

Summary of Contents for Valuxhome TS36

  • Page 1 THREE SIDED ELECTRIC FIREPLACE TS36 TS42 TS50 TS60 TS72 OWNERS MANUAL 36"/42"/50"/60"/72" Recessed Electric Fireplace AC 110-120V 60Hz 1500W Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this heater!  This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3  ALWAYS turn this heater off before unplugging it from the outlet.  ALWAYS disconnect this unit from the power supply before performing any assembly or cleaning, or before relocating the electric fireplace.  NEVER leave this heater unattended. ALWAYS unplug this heater when not in use. ...

  • Page 4: Parts And Hardware

    Preparation This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped for wall-hanging or recessing use.

  • Page 5: Installation And Assembly

    Installation and Assembly Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE: Follow all National and local electrical codes. MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front.
  • Page 6 Recessed To Wall Installation STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chart Figure ( A ) STEP B. Using the screw driver to take off the screws from the front Figure (B) STEP C.
  • Page 7 ( B ) ( D ) ( E ) STEP D. Fix the metal brackets to theTOP of the fireplace box. Figure (D,E)

  • Page 8: Installation

    Installation The three sided fireplace are designed to be built-in and allow for the finishing material(drywall,stone,tile,ect) to be built right down to the glass edge. Note:Due to the many different materials used on different walls,it is highly recommended that you consult your local builder before you install this appliance.
  • Page 9 Insert the fireplace into the wall opening.Plug in and check if the fireplace works.
  • Page 10 Log-set / Crystal Ember Installation (NOTE:Please make the installation according to the embers which you bought orselected.) Glass front must be removed and the appliance must be mounted in its final location before the log-set / crystal /embers are installed. If your fireplace come with log-set, take the log-set out of the package and put it to the fireplace media slot .

  • Page 11: Methods Of Operation

    Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a AC 110-120 Volt outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).

  • Page 12: Remote Control Operation

    Remote Control Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once . Indicator light turns on. remote control. Turns on flame effect. Power turns on. All functions enabled. OFF : Disables control panel functions and 2.

  • Page 13: Temperature Limiting Control

    When the heater is first turned on, a slight odor may be present. This is normal and NOTICE should not occur again unless the heater is not used for a long period of time. To improve operation, aim the remote control at the front of the fireplace. DO NOT NOTICE press the buttons too quickly.

  • Page 14: Care And Maintenance

    Care and Maintenance Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.

  • Page 15: Troubleshooting

    Troubleshooting WARNING DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. Problem Possible Cause Solution 1. Fireplace turns off 1. Fireplace has overheated 1. Reset switch by turning main and will not turn on.
  • Page 16 7. Heater does not 1. Thermal switch has been 1. Turn unit off and unplug unit provide heat when tripped. for 10 minutes. Plug back in and turned on. turn unit on. If plug cannot be reached, follow directions for tripped circuit breaker.
