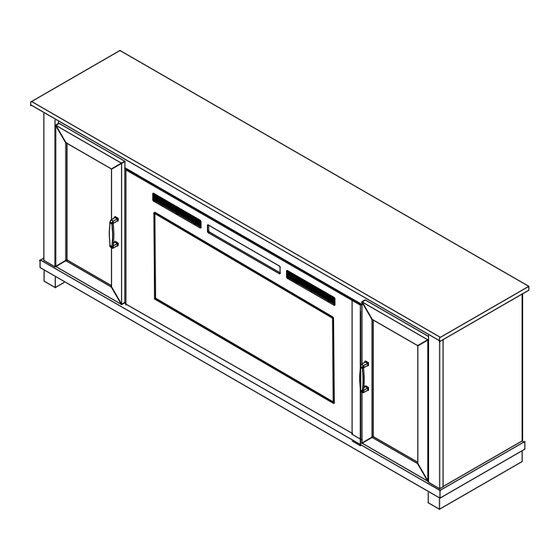

Model#: VL2214-GR USE AND CARE GUIDE FIREPLACE WITH 2 DOORS IMPORTANT Questions, problems, assembly help, missing parts? We will gladly help and ship your replacement parts free of charge. If you have any question related to product, please free to contact our customer service mail: customerservice@valuxhomeproducts.com...
WARNING ! - Do not allow children to climb on unit. - Serious or fatal crushing injuries can occur from furniture tip-over, to prevent this furniture from tipping over it must be permanently fixed to the wall. - Fixing devices for the wall are not included since different wall materials require different types of fixing devices.
Page 3
HARDWARE PART LIST NOT SHOW ACTUAL SIZE Cam Lock Cam Bolt Wood Dowel Screw Screw Handle Bolt...
Page 4
HARDWARE PART LIST NOT SHOW ACTUAL SIZE Shelf Support Angle Bracket Hinge Handle Screw Screw...
Page 7
STEP 1 1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a carpeted floor or the empty carton to avoid any scratch. 2. Insert the Wood Dowels (3) into the Parts (P) as shown. 3.
Page 8
STEP 2 1. Assemble the Support Feet (Q) to the Bottom (B) as shown. 2. Then turn over the Bottom (B), then securely screw the Cam Bolts (2) into the designated small holes of Bottom (B) as shown.
Page 9
STEP 3 Insert the Wood Dowels (3) into the Left Side (C), Right Side (D), Left Partition (E) and Right Partition (F) as shown.
Page 10
STEP 4 1. Insert the Wood Dowel (3) into the Support Panel (L) as shown. 2. Securely screw the Cam Bolts (2) into the designated small holes of the Support Panel (M) as shown. 3. Attach the Support Panel (L) to the Panel (M) with two Cam Locks (1) as shown.
Page 11
STEP 5 1. Securely screw the Cam Bolts (2) into the designated small holes of the Shelf Rails (I) as shown. 2. Insert the Wood Dowels (3) into the Adjustable Shelves (G) as shown. 3. Attach the Shelf Rails (I) to the Adjustable Shelves (G) as shown.
Page 12
STEP 6 1. Insert the Wood Dowels (3) into the Top Rail (H) as shown. 2. Securely screw the Cam Bolts (2) into the designated small holes of the Top (A) as shown.
Page 13
STEP 7 1. Attach the Left Side (C), Right Side (D), Left Partition (E) and Right Partition (F) to the Bottom (B) with eight Cam Locks (1) as shown.
Page 14
STEP 8 1. Use the Screws (8) to fix the Top Rails (H) to the Left Side (C) and Right Side (D) as shown.
Page 15
STEP 9 1. Fix the assembled Support Panel (L) and (M) to the Bottom (B) with three Cam Locks (1) as shown..
Page 16
STEP 10 1. Attach the Top (A) to the assembled wood mantel with fifteen Cam Locks (1) as shown.
Page 17
STEP 11 1. Pick up the Back Panels (N) and align the pre-drilled holes against the upper long edge with pilot holes on the back stretcher of the Top (A). Attach the Back Panels (N) in place using the provided Screws (4).
Page 18
STEP 12 1. Securely screw the Cam Bolts (2) into the designated small holes of the Left Vertical (J) and Right Vertical (K) as shown. 2. Unpack the fireplace insert from the firebox box, then release the two Screws from the side of firebox and put firebox glass out as shown, and put the released screws and glass on the safety place to avoid missing and damaged.
Page 19
STEP 13 1. Insert six Screws (12) through the countersunk holes on the edge of firebox and screw into the Left vertical (J) and Right Vertical (K) as shown. 2. Then use 2 released Screws to lock the glass to the firebox as shown.
Page 20
STEP 14 1. Attach the firebox carefully into the front of the assembled mantel with four Cam Locks (1) as shown. DO NOT drag the insert across the Base (B) as it may scratch the unit.
Page 21
STEP 15 1. Attach the Handle (10) to the front side of Doors (O) with the provided Bolts (6) as shown. 2. Assemble the Hinges (9) to the Doors (D) with the provided Screws (5) as shown.
Page 22
STEP 16 1. Assemble the Doors (O) to the assembled mantel with the provided Screws (5) as shown...
Page 24
STEP 18 2. Insert the Shelf Supports (7) into the desired holes in the sides of the side compartments. Make sure you place the four Shelf Supports in the same level so the shelf is not tilted. Tilt and rest the Adjustable Shelves (G) onto the Shelf Supports (7).
Maximum Load This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, collapse, and serious injury.
Maintenance To clean and care for your furniture: - Use a soft, clean cloth that will not scratch the surface when dusting. - Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. - Using solvents of any kind on your furniture may damage the finish.
Page 27
Your assembly should now be complete. Thank you for your purchase. “KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE"...
