Seagate Exos E Series Replacing

Replacing an Input Output Module in a 5U Enclosure
This document contains the steps in replacing an input/output module for a 5U enclosure. More detailed information is
found in the Hardware Maintenance and Installation Guide (HMIG) for the Exos E series storage enclosure. You can find
the documents located at https://www.seagate.com/support/data-storage-systems.
To replace a 5U enclosure input/output module:
1. Complete the following actions to remove the faulty IOM:
a. Facing the rear of the 5U enclosure, carefully remove all IOM connections.
b. Grasp the IOM release latch between thumb and forefinger, then squeeze together to release the latch and
handle.
c. Pull the handle outward to lever the IOM away from the midplane.
d. Use one hand to support the weight of the IOM and the other to gently withdraw the IOM from its slot.
e. Place it in a static-protected location.
2. Complete the following actions to replace it with a tested good IOM:
a. Examine the tested good IOM to make sure it is undamaged with pins that are straight, not bent.
Exos E Series Storage Enclosure

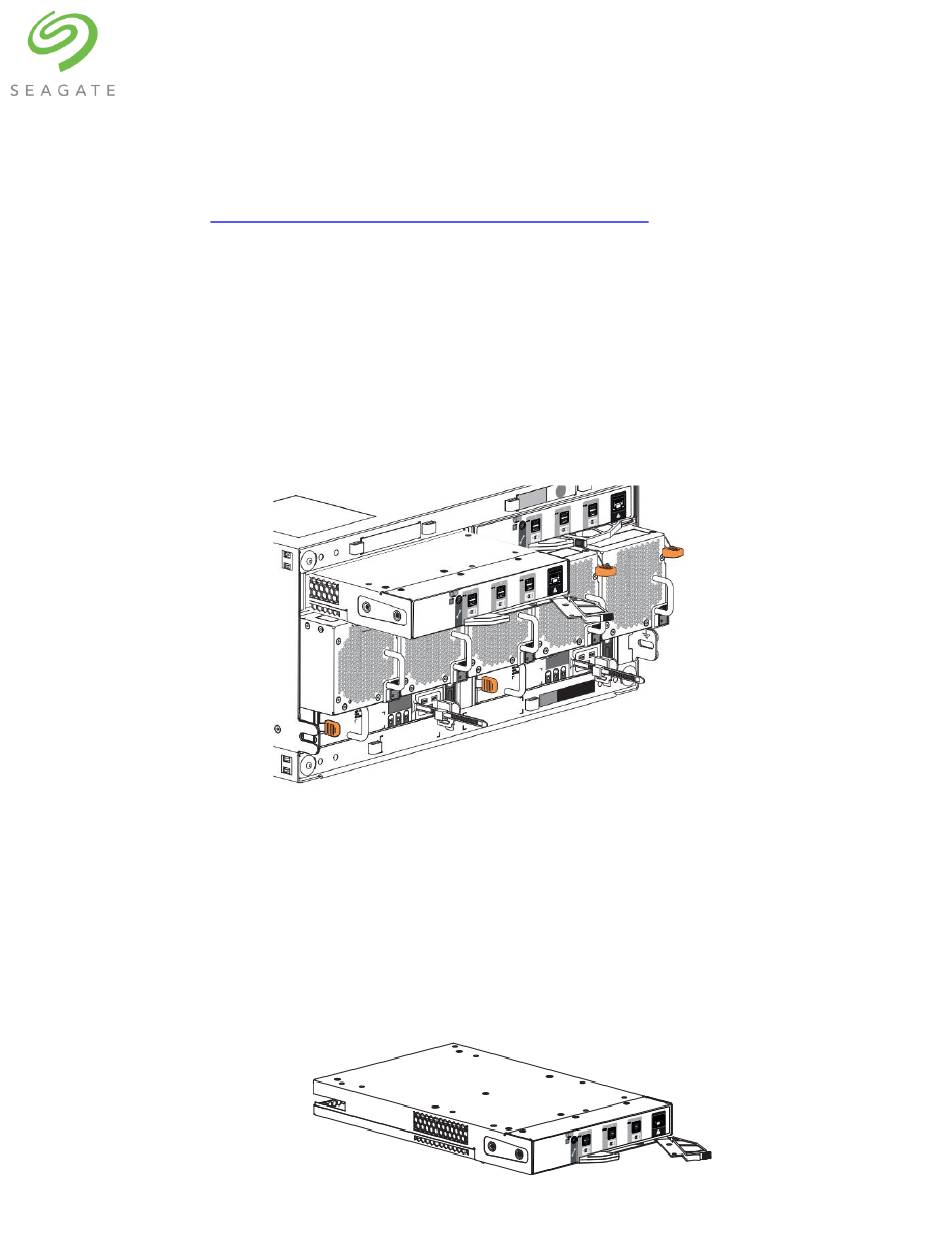

input/output module removal
Replacement input/output module
