Replacing a 2U enclosure drive module in its carrier

This document contains the steps in replacing a drive module in its carrier for a 2U enclosure. More detailed information

is found in the Hardware Maintenance and Installation Guide (HMIG) for the Exos X 4006, Exos E series storage systems,

and the AP Integrated Storage Servers. You can find the documents located at

storage-systems

DDIC – Disk Drive in Carrier

1. Complete the following actions to remove a faulty DDIC:

a. Facing the front of the storage enclosure, locate the DDIC with a fault condition.

b. Using a thumb and forefinger, squeeze the carrier release latch to release the connection to the midplane.

c. Grasping the carrier handle, pull it outward approximately 25mm (1 in) and wait for 30 seconds.

Exos X 4006 & Exos E Series Storage Systems and AP Integrated Storage Servers

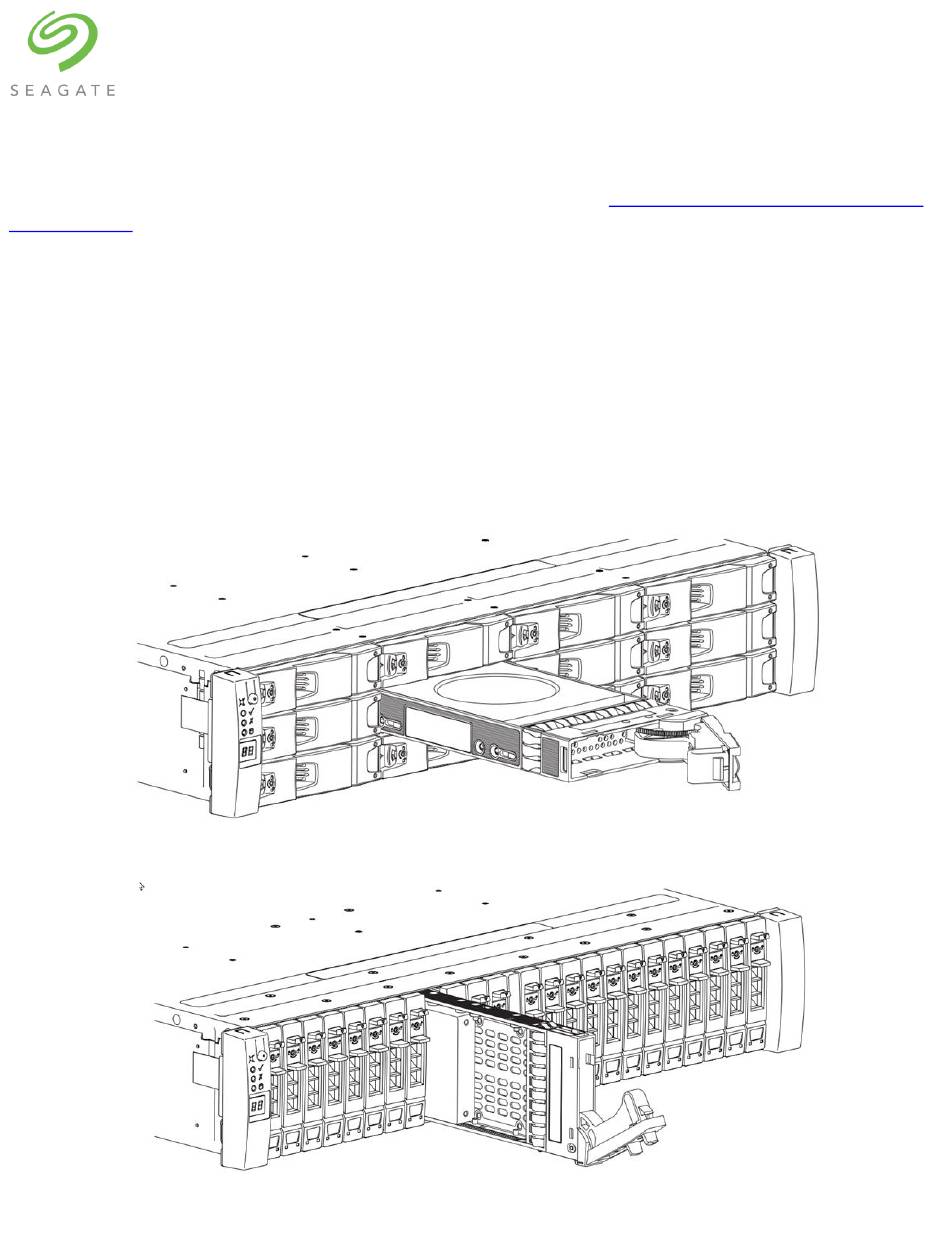

Seagate 2U12 Chassis

Seagate 2U24 Chassis

https://www.seagate.com/support/data-

Need help?

Do you have a question about the Exos X 4006 Series and is the answer not in the manual?

Page 1 Using a thumb and forefinger, squeeze the carrier release latch to release the connection to the midplane. c. Grasping the carrier handle, pull it outward approximately 25mm (1 in) and wait for 30 seconds. Seagate 2U12 Chassis Seagate 2U24 Chassis...
Page 2 d. Use one hand to support the weight of the DDIC and the other to pull the handle outward to fully withdraw the DDIC. e. Place it in a static-protected location. 2. Complete the following actions to replace it with a tested, good DDIC: a.
