Summary of Contents for Beko VRR 61414 VB

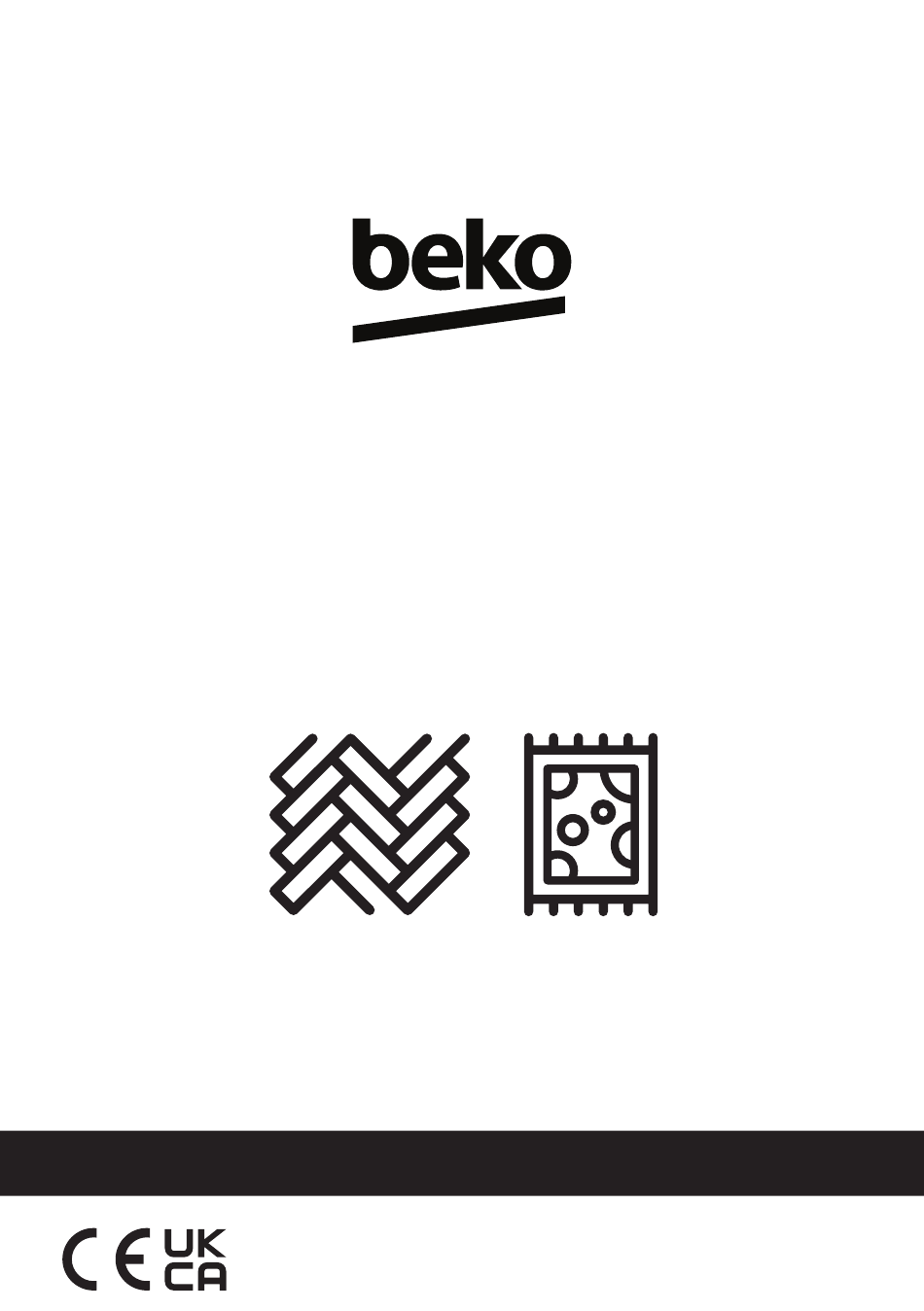

- Page 1 Robot Vacuum Cleaner User Manual VRR 61414 VB EN - FR - IT - PL - RO - SR - BG - HR - SL - SQ - AR 01M-8917123200-1124-01 01M-8917163200-1124-01...
- Page 2 Please read this guide first! Dear Customer, Thank you for choosing a Grundig product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with the state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference.
- Page 3 This section contains safe- Do not use the appliance • ty instructions to prevent if the power cord or the hazards that can result in appliance is damaged. injury or property damage. Contact authorised ser- vice. Any warranty is void if these instructions are not Keep the appliance and •...
- Page 4 Do not vacuum flammable – In hostels, or similar • materials and ensure that environments. the cigarette ashes are – Sleeping places and cooled down before vacu- breakfast environ- uming them. ments Do not vacuum water and • Do not immerse the appli- •...
- Page 5 This appliance is not in- Please discard used bat- • • tended to be used by per- teries in accordance with sons, including children, local laws and regulations. with physical, sensory The batteries in this appli- • and mental disabilities or ance may only be replaced those who have not ad- by the authorised service.
- Page 6 Do not put weight on the 1.4 Waste batteries • appliance. Make sure that This symbol on rechargeable batteries/ batteries or on the the children and domestic packaging indicates that the re- animals do not get on the chargeable battery/battery may appliance.
- Page 7 2 Box content Robot Vacuum Charging dock Charge adaptor Spare accessories supplied 1 filter User’s manual Cleaning brush product documentation (2 pcs) 7 / EN Robot Vacuum / User Manual...
- Page 8 3 Overview 8 / EN Robot Vacuum / User Manual...
- Page 9 The complete text of the EU be put between the appliance and the person. declaration conformity is available in the following The rights to make technical and design internet address: – Products, changes are reserved. from :beko.com 9 / EN Robot Vacuum / User Manual...
- Page 10 3 Overview Parameter of External Power Supply Manufacturer E-TEK Electronics Manufactory Co., LTD Model Identifier ZD012A190060EU Input Voltage 100-240V~ Input Frequency 50/60Hz Input Current 0.5A Output Voltage 19.0V DC Output Current 0.6 A Output Power 11.4W Average active efficiency 86.37% Efficiency at low load(10%) 85.71% No-load power consumption...
- Page 11 4 Installation 1- Remove the protective sponges. 2- Install the charging station. Install the adaptor plug to the charging station and set the cables up to prevent the adaptor cable from wrapping around the machine during vacuuming. Install the charging station in a location where it can easily be accessed by the vacuum cleaner.
- Page 12 4 Installation WARNING: If you are going to use the device for the first time or if you have not used it for a long time, fully charge the batteries before using it. Always keep the charging station plugged, otherwise the robot vacuum cleaner cannot return to the charging station automatically.
- Page 13 5 Operation 5.2 Charging the appliance 1. Bring the on-off button on the side to the on position for the initial power up. On/Off button 2. Place the appliance to the dust collection station so that it shall be aligned with the charging communication pins.
- Page 14 5 Operation Starting the cleaning Press “ ” button to start the automatic cleaning mode. When it is started, the robot vacuum cleaner is removed from the charging dock, performs an automatic scan to create a map, determines the cleaning route in a smart way and divides the area to several regions.
- Page 15 5 Operation Point cleaning Bring the robot vacuum cleaner to the area to be cleaned and press “ ” button twice. When the mode is activated, the robot vacuum cleaner shall clean a square area of 1.5 x 1.5 m by considering itself as the center.
- Page 16 5 Operation 5.3.1 Operation with the application Download the application To download the application, search for “HomeDirect-SDA” application in the mobile app store. Review the mobile application manual for detailed information. Reset Wi-Fi Press “ ” “ ” buttons simultaneously until you hear the aural warning and see the light blinking.
- Page 17 5 Operation Wi-Fi connection error Wi-Fi Status Root Cause Solution • Ensure that the modem is connected to the net- The robot vacuum clea- work. ner is connected to the White light is illuminated router (modem), but it • Contact your network continuously.
- Page 18 5 Operation 5.3.2 Operation modes Map Management A. Real time mapping Real time creation of a house map may help you understand the cleaning route and the cleaning environment easily. A map of the house is created after cleaning. The map is updated in real time during each vacuuming operation to ensure a normal navigation.
- Page 19 5 Operation • The robot vacuum cleaner may also enter the areas other than the selected area after it starts cleaning; thus please remove the obstacles on the ground around the selected area. Area selection does not provide a secure isolation. •...
- Page 20 6 Cleaning and maintenance Turn off the appliance and unplug it before cleaning it. WARNING: Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance. 6.1 Cleaning the dust container and filters You may call our call center to order a new filter when your filter reaches the end of its expected life, is deformed or needs to be replaced for a reason.
- Page 21 6 Cleaning and maintenance 3. Remove the high performance filter and clean the filter using the cleaning brush provided together with the appliance. 4. Wash dust container and filter assembly periodically with cold water as required as per the frequency of operation. 5.
- Page 22 6 Cleaning and maintenance 2. Replace the brush after cleaning it and close the cover in the direction of the arrow. 22 / EN Robot Vacuum / User Manual...
- Page 23 6 Cleaning and maintenance 6.3 Cleaning and installation of the side brush In the long term use, wash the side brush with warm water in order to eliminate the shape deformation. Install it to the robot as it is shown after it has dried. 6.4 Cleaning of the sensors Clean the sensors and charging pins/electrodes regularly and remove the dust using a dry and soft cloth or a cleaning brush.
- Page 24 6 Cleaning and maintenance 24 / EN Robot Vacuum / User Manual...
- Page 25 7 Troubleshooting General Error Conditions Failure Cause and remedy 1. Charging level is low. Place the robot vacuum cleaner to the charging dock so that it shall be aligned with the charging poles. Bring the button on the left of the robot vacuum cleaner to position “I”;...
- Page 26 7 Troubleshooting 1. Wi-Fi signal is weak. Make sure that the Wi-Fi signal in the location of the robot vacuum cleaner is strong. 2. There is a cutoff in Wi-Fi connection. Please reset Wi- Cannot connect to the Fi, download the latest mobile application and try again. Wi-Fi network.
- Page 27 7 Troubleshooting • Please check whether there is any fo- reign material stuck at the rear of the rotating brush (in the air flow path) and Error 4: Main motor error. Please refer restart the vacuum cleaner. to the manual or the application. •...
