PAC Stinger ELEV8 Install Manual

SRK-JW18EH
Introduction and Features
The SRK-JW18EH is a complete radio replacement kit with integrated climate control retention for select Jeep Wrangler
JL and Jeep Gladiator JT vehicles. All modules and cables are included to retain important features of the factory
system, including: steering wheel-mounted radio controls, factory reverse camera, USB ports, and AM/FM reception.
Data integration with the vehicle and the Stinger ELEV8 or Stinger HEIGH10® radio (sold separately) allows for the
retention and addition of the following features: vehicle performance gauges and information, climate controls, vehicle
settings, factory amplifier control, and forced camera activation. Simplified installation and setup menus allow direct
programming of camera triggers, steering wheel controls, and other settings of the radio and CH4A-JW18 interface.
See Important Notes (next section) for additional information.
Plug & Play wiring harnesses and cables allow for quick and easy installation without the need to cut or splice any
wiring.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself with the entire process
1. Does Not Retain:
Cluster Display Features
• Compass (when equipped with 7" or 8.4" screen)
• Clock
• Phone pop-ups
• Navigation pop-ups
Factory Amplifier Features
• Speed Controlled Volume
2. When connected properly, the USB port inside the center console will function for Apple Carplay/Android Auto, and all
other USB ports will be used for USB thumb drives and charging only.
3. Ensure that the CH4A-JW18, PL1, and RPA-HD1 modules have been updated to the latest version of firmware
before installing into the vehicle. Refer to the Updating Firmware section at the end of the manual for firmware update
instructions.
4. When connecting an HDMI streaming device to the RPA-HD1, use an HDMI extension cable to position it away from the
module to ensure proper functionality. We recommend placing the HDMI device in the glove box. Failure to follow the
directions may result in module malfunction.

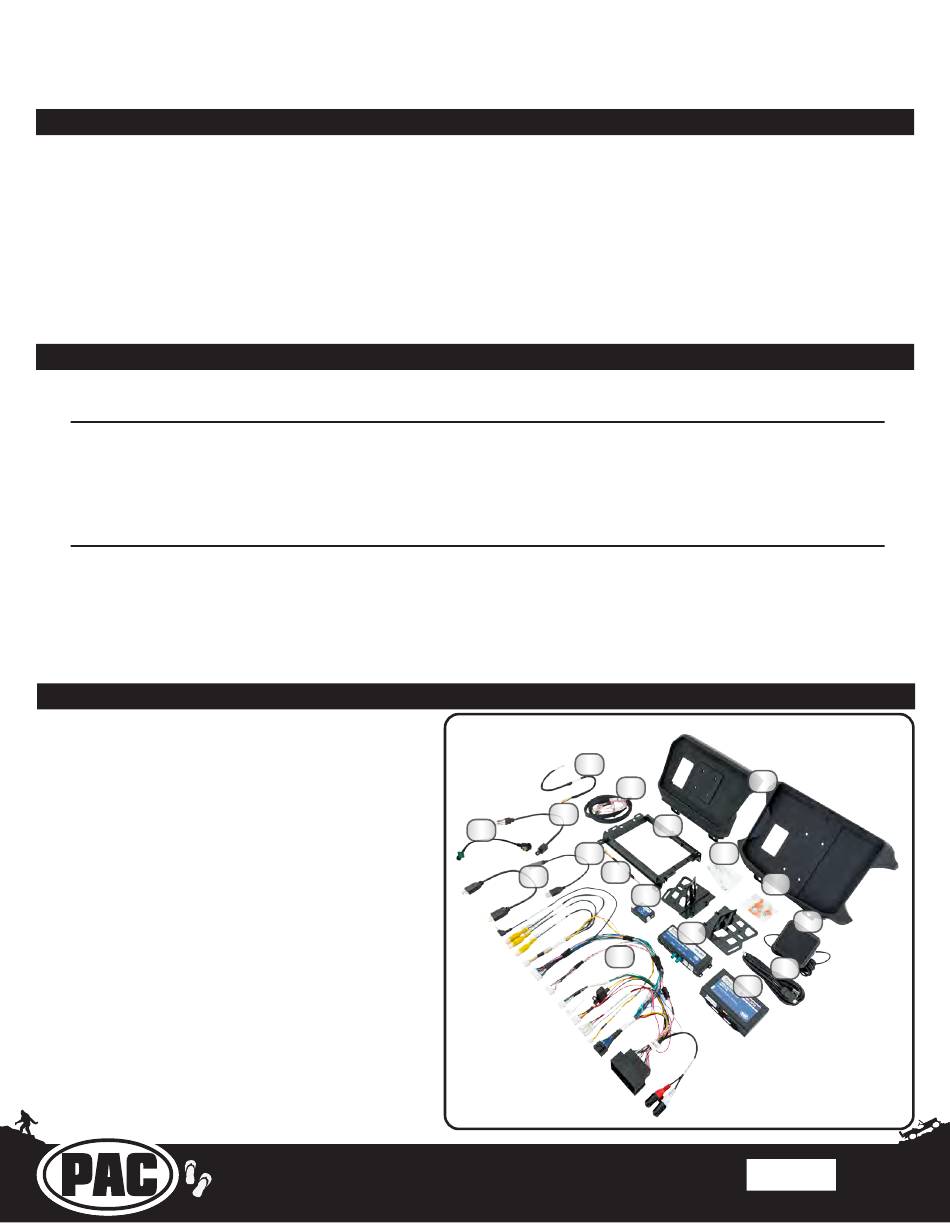

Tools Needed; Included Components
Tools needed for installation: 7mm socket, 10mm socket, ratchet,
ratchet extension, T20 torx screwdriver, T25 torx screwdriver,
pick tool or small flathead screwdriver, plastic panel removal tool
(example - PAC part number TL-PRY2).

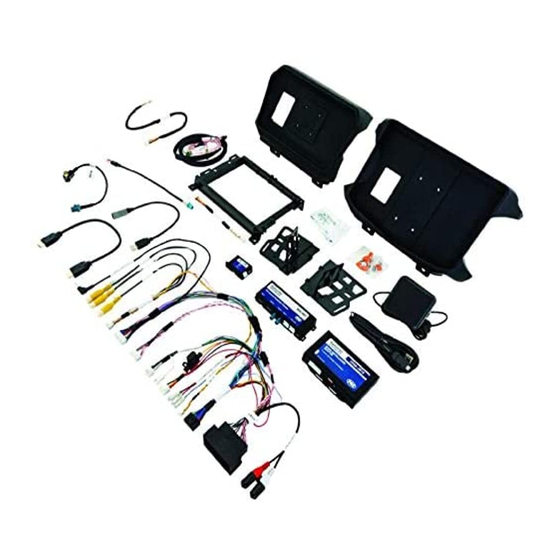

1. ELEV8 / HEIGH10 Display Mounting Panel
2. 18" Data Harness (10P-2-10P-18)
3. CAN-Bus Connection Harness (MQS4PT-36)
4. Radio Module Mounting Brackets
5. Chime Speaker Mounting Accessories
6. Screen Panel Clips and Mounting Bracket Screws
7. External Chime Speaker
8. 7' USB Port Retention Adapter (USB-UN2)
9. AM / FM Antenna Adapter (BAA22)
10. 8" USB Hub Retention Adapter (USB-UN1)
11. 6" Data Harness (10P-2-10P-6)
12. PAC-LINK Interface Module (PL1)
13. HD Camera Retention Module (RPA-HD1)
14. Radio Replacement Interface Module
(CH4A-JW18)
15. Satellite Antenna Adapter (SAT-01)
16. 12" HDMI Cable
17. Main Wiring Harness (RPK-JW18-HAR)
AAMP Global is not affiliated with FCA US LLC. Jeep® is a registered trademark of FCA US LLC. The terms
OEM, Jeep®, Wrangler®, and Gladiator® all terms are used strictly for identification purposes only. It is not
Pacific Accessory Corporation
prior to beginning the installation.
© 2020 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
implied that any part listed is a product of, or approved by, Fiat Chrysler Automobiles.
Stinger ELEV8 or HEIGH10® Radio Replacement Kit
for Jeep Wrangler JL and Jeep Gladiator JT Vehicles
Uconnect Features
• Uconnect Access Remote Start / Lock / Unlock
• SOS / Assist
• Vehicle Location Service
• WiFi-Hotspot
SiriusXM Guardian Services
• SiriusXM Radio
2
3
9
15
10
11
16
12
17
1
4
5
6
7
13
8
14
Rev: v3
Date:100620
Page 1
