SRK-JK11HX
Introduction and Features
The SRK-JK11HX is a complete radio installation kit for 2011-2018 Jeep Wrangler JK and the Stinger Horizon10 Infotainment
system (sold separately). All modules and cables are included to retain important features of the factory system, including: steering
wheel-mounted radio controls, USB port, factory amplifier and AM/FM reception. Data integration with the vehicle and the Stinger
Horizon10 adds advanced vehicle information, performance gauges, off-road enhancements, four programmable camera triggers,
and factory amplifier control. Plug & Play wiring harnesses, along with a "zero-modify" mounting system, allow for a quick and easy
installation without the need to cut or splice any factory wiring or modifying the vehicle trim panels or sub-dash.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself with the entire process prior to
beginning the installation. Although this kit does not require any modifications to the vehicle, it does
require following the steps as shown to ensure it is installed correctly with no damage to the vehicle.
1. Does not retain the following factory features:
● Uconnect
®
● SiriusXM
Satellite Radio
®
2. To retain SiriusXM Satellite Radio would require purchasing a SXV300 SiriusXM tuner.
Recommended Tools
Plastic Panel Tool
7mm, 10mm Socket
Ratchet

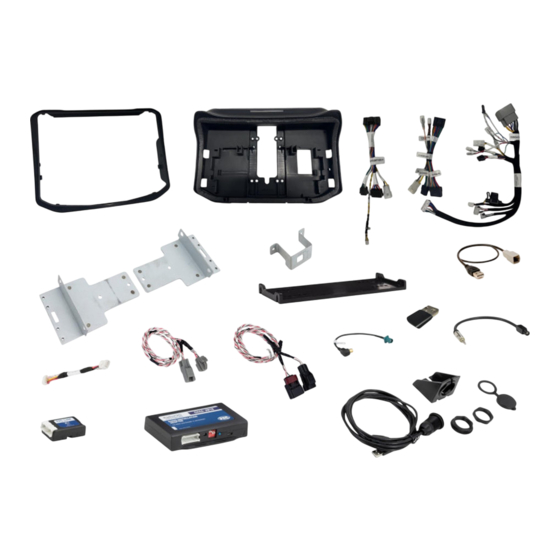

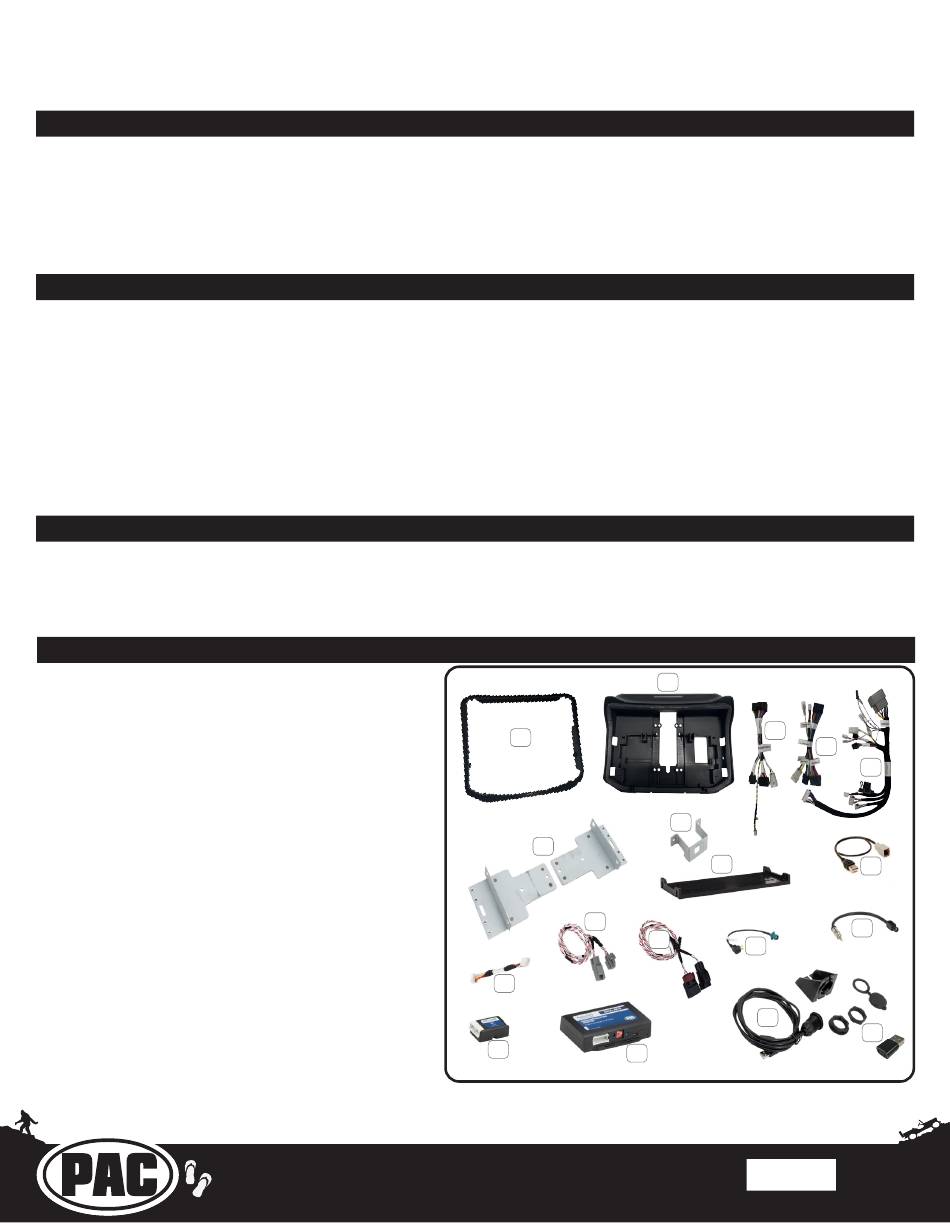

Included Components
1. Mounting Panel Front Frame
2. HEIGH10, Horizon10 Display Mounting Panel
3. UN1810 Harness (SR-SRK-ADAPT-UN1810 V1)
4. IX210 Harness (SR-SRK-ADAPT-IX2XX V1)
5. Main Harness (SRK-CH1A-HAR V2)
6. Side Mounting Brackets (x2)
7. Top Support Bracket
8. 18" USB Adapter (USB-UN3)
9. Module Bracket (H_MODULE_BRKT)
10. PAC-LINK/Speed Sen Harness (10P-2-10P-6-HAR)
11. 2014-2018 CAN Harness (JK14-CAN-HAR)
12. 2011-2013 CAN Harness (JK07-CAN-HAR)
13. Satellite Antenna Adapter (SAT-01)
14. AM / FM Antenna Adapter (BAA22)
15. PAC-LINK Module (PL1)
16. Radio Replacement Interface Module (CH1A-SRK)
17. USB-A / USB-C Extension (SSUSB3)
18. USB-C TO USB-A Adapter included with (SSUSB3)
NOTE: There is a component list, hardware
guide, wire harness descriptions and illustrations
in the HORIZON10 (IX210) Installation Guide for
reference.
®
Pacific Accessory Corporation
#1 Phillips Screwdriver
#2 Phillips Screwdriver
Flathead Screwdriver
Stinger Solutions is not affiliated with FCA US LLC. Jeep® is a registered trademark of FCA US LLC. The
terms OEM, Jeep®, Wrangler®, and Gladiator® all terms are used strictly for identification purposes only. It is
not implied that any part listed is a product of, or approved by, Fiat Chrysler Automobiles.
Stinger HORIZON10
Flush Cutters
Painters Tape
Wire Feeder
Cloth Tape
1
6
11
10
15
Included zip ties, M4 x 12 Screws (4x), M5 x 10 Screws (4x), M4 x 6 Screws (2x), M4 x
10 Screws (4x), M3 x 6 Self -tap Screws (2x), 10 x 1/2 Screw (1x), 10 x 3/8 Screw (4x),
clip nut and Screws NOT SHOWN.
© 2024 Stinger
Installation & Integration Kit
®
for 2011-2018 Jeep
®
2
3
7
9
12
13
17
16
Rev: V3
Date:072924
Wrangler JK
4
5
8
14
18
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRK-JK11HX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PAC SRK-JK11HX

  • Page 1 Introduction and Features The SRK-JK11HX is a complete radio installation kit for 2011-2018 Jeep Wrangler JK and the Stinger Horizon10 Infotainment system (sold separately). All modules and cables are included to retain important features of the factory system, including: steering wheel-mounted radio controls, USB port, factory amplifier and AM/FM reception.
  • Page 2: Wiring Diagram Overview

    SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Wiring Diagram Overview BAA22 SAT01 SSUSB3 AM/FM USB-A PORT ANTENNA ANTENNA USB-C PORT USB-UN3 ADAPTER ADAPTER EXTENSION USB ADAPTER JK07-CAN-HAR JK14-CAN-HAR Connect to SXV300 Satellite Radio Tuner...
  • Page 3: Section 1: Disassembly

    SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® This installation manual will cover the necessary order of procedures to complete the installation efficiently and to avoid redoing any steps along the way. The order will be as follows; Disassembly, In-Vehicle Harness Connections and Preparation, Display, Radio Module and Harness Preparation, and Radio Unit Installation.
  • Page 4: Section 2: In-Vehicle Harness Connections And Preparation

    SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Section 1: Disassembly (cont.) Part One: Radio Removal (cont.) Step 8 Step 9 Step 7 Using the storage tray and area Remove the four 7mm screws...
  • Page 5 USB extension shown the USB-UN3 adapter included Route the USB A connector end below, reconnect all the in the SRK-JK11HX kit. Reinstall of the USB-UN3 up to the radio connectors on the backside of the the two 7mm screws to secure opening.
  • Page 6 SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Section 2: In-Vehicle Harness Connections and Preparation (cont.) Part Two: USB Extension ( SSUSB3 (cont.) Step 4 Step 5 Route the USB cables up to Install the optional USB cover and...
  • Page 7 SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Section 2: In-Vehicle Harness Connections and Preparation (cont.) Part Four: CAN T-Harness ( JK07-CAN-HAR or JK14-CAN-HAR ) Step 1A Step 1B Step 2 2011-2013 Models: On the wire...
  • Page 8: Section 3: Display, Radio Module And Harness Preparation

    SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Section 3: Display, Radio Module and Harness Preparation Part One: Display Mounting Panel Preparation Cut or break off Step 1 Step 2 Step 3 Install 6 rubber covers in the following...
  • Page 9 SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Section 3: Display, Radio Module and Harness Preparation (cont.) Part Three: Main Harness Connections (SRK-CH1A-HAR V2) Step 1 Step 2 Step 3 Using two 12” zip ties, attach the Connect the three connectors from Feed a 8”...
  • Page 10 Section 3: Display, Radio Module and Harness Preparation (cont.) Step 5 Step 6 Step 7 Connect one end of the PAC 10P-2-10P- 6-HAR harness to either port on the PL1. Slide the module bracket assembly Secure the radio harness to the...
  • Page 11: Section 4: Radio Unit Installation

    SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Section 4: Radio Unit Installation Part One: In-Vehicle Harness and Cable Connections Step 1 Step 2 Step 3 Connect the BAA22 antenna wire into the radio module. Plug...
  • Page 12 SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Section 4: Radio Unit Installation (cont.) Part Two: Mounting the Radio Assembly Step 2 Step 3 Step 1 The top support bracket on the With the display cable routed over...
  • Page 13 Settings: Main Menu > Settings >Microphone HORIZON10 display. **If the vehicle info screens are not fully populated, refer to the end of the instructions under “Reset PAC interface”. Also ensure the GPS antenna can see the outside sky (not in a garage or a bay).
  • Page 14 SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Part Three: Attaching the Display Panel 1/4” 1/4” Step 3 Step 1 Step 2 Apply a piece of cloth tape across the top and bottom edges of the...
  • Page 15 SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Section 4: Radio Unit Installation (cont.) Part Three: Attaching the Display Panel Part Three: Attaching the Display Panel (cont.) Step 5 Step 6 Center the display assembly in the...
  • Page 16: Technical Support

    ® Product Updates (Firmware) Firmware Updates (PAC RadioPRO ADVANCED) The CH1A-SRK can be updated with new firmware as it becomes available. Please visit www.pac-audio.com/firmware for available updates. Firmware Updates (Stinger HORIZON10) To update the Stinger radio firmware, refer to the HORIZON10 product page at: https://stingersolutions.com/pages/horizon10...
  • Page 17: Removing The Display Panel

    SRK-JK11HX Stinger HORIZON10 Installation & Integration Kit ® for 2011-2018 Jeep Wrangler JK ® Removing the Display Panel In the event the display panel needs to be removed, follow the instructions below to prevent damage to the vehicle trim, radio display and installation kit.
