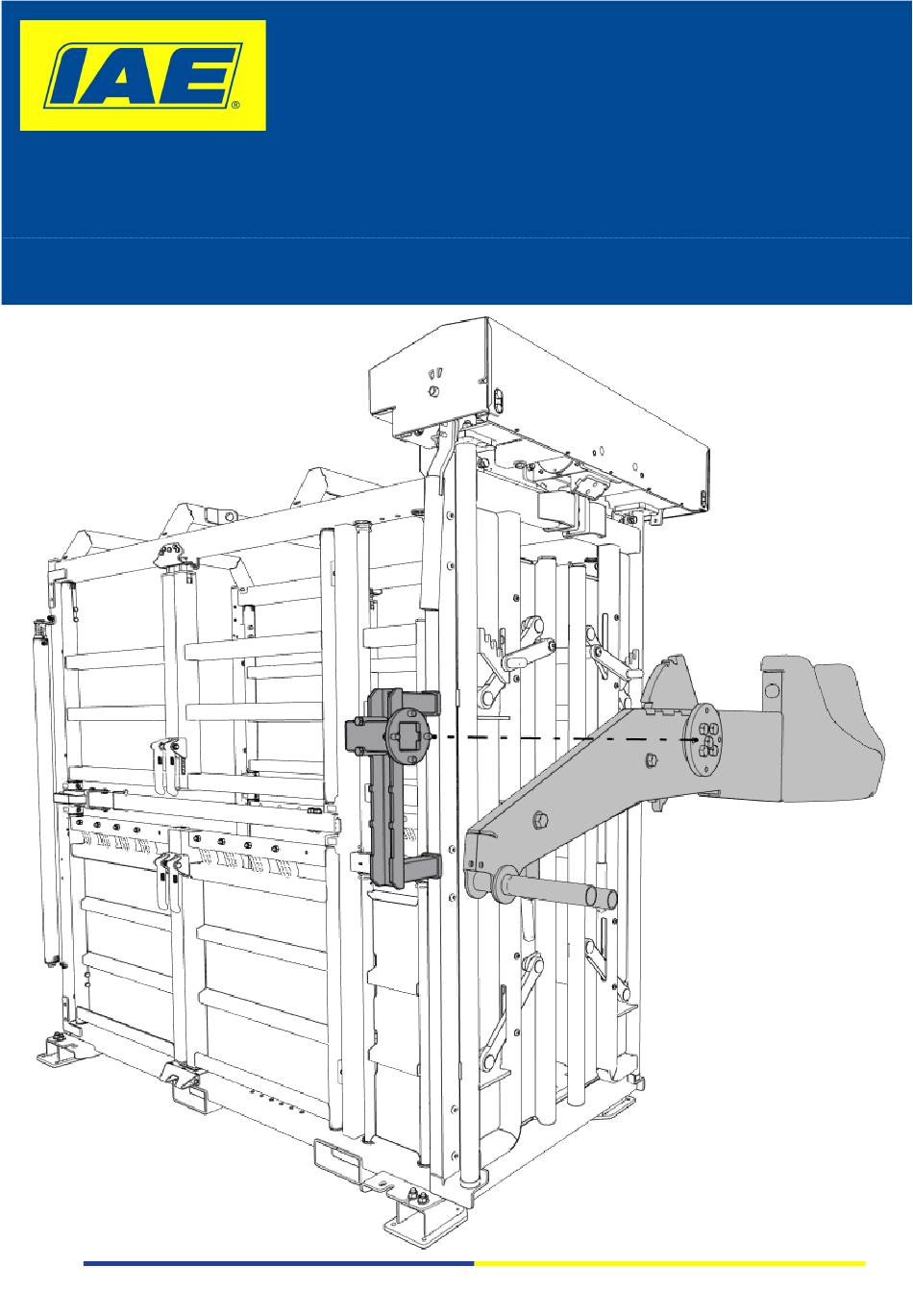

- Page 1 USER MANUAL 1003599-01 A800 Series Scoop Bracket Call:+44 (0)1782 339320 | Email: sales@iae.co.uk | Weblink: https://iae.co.uk/...
- Page 2 If you have any questions or comments regarding the product, we will be glad to hear them either through Remove any obstructions our website www.iae.co.uk or by contacting your local Lubricate all moving parts. IAE dealership. ...
- Page 3 How To Assemble ❶ AUTO YOKE ADJ' SCOOP BKT (x1) ❷ AUTOYOKE SCOOP BRACKET (x1) ❸ M12X130 BOLT (x2) Tooling required: ❹ M12 WASHER (x6) Socket set • ❺ M12 NYLOC NUT (x4) Hex key set • ❻ SLEEVE 20 o/d X 12.2 BORE x 57L (x1) Pliers •...
- Page 4 How To Assemble ❷ Fit scoop bracket to crush body (front frame pre-drilled to suit). Some parts in this image have been hidden for clarity. Cut out in box section to allow access to the nut ❼ ❹ ❻ ❺x2 Scoop Height Adjustment Scoop bracket channel with cut-outs...
- Page 5 How To Use ❶ ❷ Grab the fixed handle, pull down to move scoop from Perform care task on the animal whilst the scoop is in the vertical (resting position) to horizontal (in use position). horizontal ‘in use’ position. - Animal MUST be successfully yoked before activating the scoop. ✋...
- Page 6 How To Convert To Left Hand ❶ ❷ First, disconnect the scoop bracket (with Superscoop attached) Disconnect Superscoop from bracket. from the crush body. ❸ Remove scoop head (green) and handles (blue), flip 180° and refit. Scoop head Handles ❹ ❺...
